Rexroth ABZMS-41-1X Float Switch Sensor
LEHIY item code: LH-0011
Quick buying check
This page helps you check Rexroth ABZMS-41-1X Float Switch Sensor before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Rexroth float switch features: Rexroth float switches are switching devices controlled by the movement of a float in a liquid.
Float switches can be used to control the oil level in hydraulic station tanks.
German Rexroth float switches are available in three series: Type ABZMS…M float switches with up to four adjustable normally closed/normally open switching contacts or up to three switching contacts and an optional fixed temperature contact as a normally closed contact, suitable for temperatures of 60°C [140°F],.
70°C [158°F], or 80°C [176°F].
Type ABZMS...RTA float switches feature a resistance measuring chain (level) and a resistance thermometer (temperature) with an analog output of 4 to 20 mA.
Type ABZMS...D float switches have the same resistance measuring chain and resistance thermometer as Type ABZMS...RTA, plus additional display and control devices for level and temperature settings.
Bosch Rexroth Hydraulic Power Unit Accessory Float Switch Bosch Rexroth Switch Thermometer Control Device R901269277 ABZMS-41-1X/0800/M2/DC-K24 Rexroth Float Switch Bosch Rexroth Hydraulic Power Unit Accessory Float Switch Bosch Rexroth Switch Thermometer Control Device Measuring Element Bosch Rexroth Industrial Hydraulics Hydraulic Power Unit Accessory -.
Rexroth Float Switch Introduction: German Rexroth float switches, with switching contacts and temperature, with resistance measuring chains/resistance thermometers, with display and control devices.
Rexroth float switch type ABZMS-41 component series 1X ordering model "ABZMS-41-1X/ / /*-*" "ABZM"--hydraulic power unit accessory: ABZM = measuring device "S"--float switch "41"--model "1X"--component series 10 to 19 (10 to 19: mounting and connection dimensions remain unchanged) "--Ordering length, in mm [inches]:.
0370 = L = 370 mm [14.57] 0500 = L = 500 mm [19.69] 0800 = L = 800 mm [31.50] 1000 = L = 1000mm [39.37] 1200 = L = 1200 mm [47.24] " "--Level and temperature measurement: Number of normally closed/normally open.
level contacts M1 = 1x; M2 = 2x; M3 = 3x; M2-T70F = 2x; M3-T70F = 3x Normally closed/normally open level contact quantity and temperature sensor PT100, output resistance signal Ω M1-TS = 1x; M2-TS = 2x; M3-TS = 3x Normally closed/normally open.
level contact quantity and resistance thermometer, 4...20 mA output M1-TA = 1x; = 3x RTA = Resistance measuring chain (level) and resistance thermometer 4…20 mA analog output D1 = Display and control device with resistance measuring chain and resistance thermometer, with four programmable PNP conversion outputs D2.
= Display and control device with resistance measuring chain and resistance thermometer, with two programmable PNP conversion outputs Two 4...20 mA analog outputs "*"--Voltage: DC = VDC 10…36 AC = VAC 10…230 "*"--Electrical connection: K24 = 4-pole connector, M12x1 (standard) K14 = 4 7-pole connector.

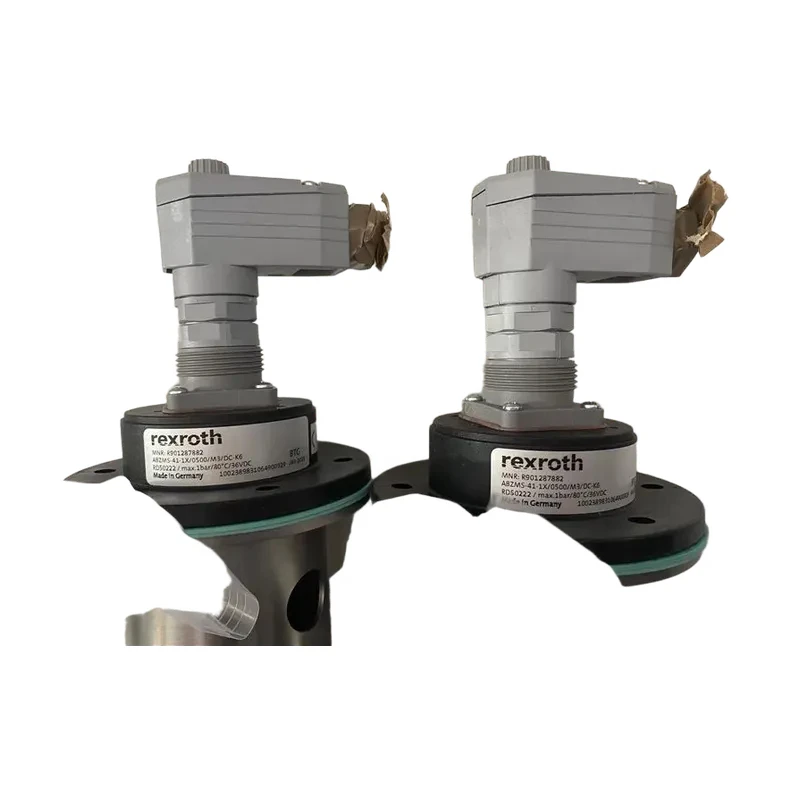

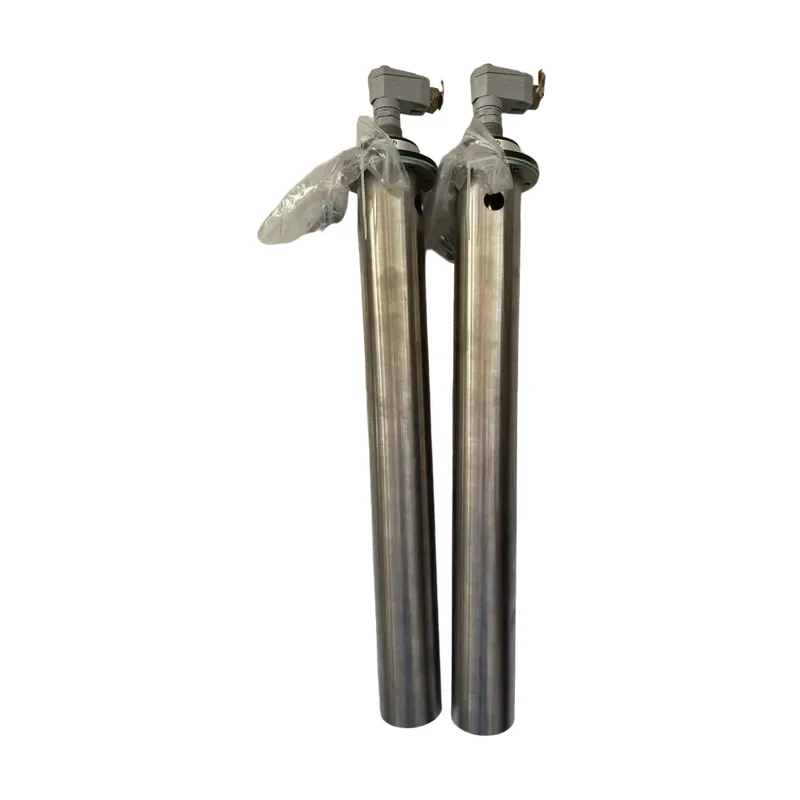

(3+PE) DIN EN 175301-803 K6 = 7-pole connector (6+PE) DIN EN 175201-804 ABZMS-41-1X/0500/M3/DC-K6 Agent Rexroth ABZMS-41-1X float switch arrival photos: Rexroth ABZMS-41-1X Rexroth float switch technical parameters: Installation position: Vertical ±10° Medium temperature range: -20.
to +80°C [-4 to +176°F] Ambient temperature range: - M… and RTA: -20 to +85°C [-4 to +185°F] - D1 and D2: -20 to +70°C [-4 to +158°F] Material: - Slide tube 20 mm [0.79 inch]: CU alloy - Float: 1.4571 -.
Flange: PA12 + 25GF (25% glass fiber) - Protective tube 60.3 mm [2.37 in]: Stainless steel 1.4301 Sealing material: Klinger C-4400 Maximum switching point L1: 1140 mm [44.88 in] ABZMS-S-41-1X Rexroth float switch ordering example: - Float switch with flange hole, ordering.
length 370 mm [14.57 in] - Two preset level contacts and temperature contacts normally closed at 70°C [158°F] - Connector K24 ABZMS-S-41-1X/0370/M2-T70/DC-K24 Standard type float switch with two switching quantities, type...M2...
ABZMS-41-1X/0370/M2/DC-K24 R901212588 ABZMS-41-1X/0500/M2/DC-K24 R901212589 Float switch with two switching and temperature contacts, type...M2-TF70F...
ABZMS-41-1X/0370/M2-T70F/DC-K24 R901212590 ABZMS-41-1X/0500/M2-T70F/DC-K24 R901212591 Float switch with resistance measuring chain and resistance thermometer, type...RTA...
ABZMS-41-1X/0370/RTA/DC-K24 R901212592 ABZMS-41-1X/0500/RTA/DC-K24 R901212593 Float switch with display and control device, resistance measuring chain and resistance thermometer, type...D2...
ABZMS-41-1X/0370/D2/DC-K24 R901212594 ABZMS-41-1X/0500/D2/DC-K24 R901212595 Rexroth ABZMS-41-1X float switch common models: Rexroth level float switch ABZMS-36-1X/1200M-K2 old model discontinued, replacement number ABZMS-41-1X/1200/M2/DC-K24 Rexroth float switch R901287882.
ABZMS-41-1X/0500/M3/DC-K6 R901219726 ABZMS-41-1X/0280/M1S-K6 R901269288 ABZMS-41-1X/0280/M2/AC-K14 R901269279 ABZMS-41-1X/0280/M2/DC-K24 R901351940 ABZMS-41-1X/0280/M3/DC-K6 R901212594 ABZMS-41-1X/0370/D2/DC-K24 R901285328.
ABZMS-41-1X/0370/M3-T70F/DC-K6 R901420650 ABZMS-41-1X/0370/M4/DC-K6 & R901212592 ABZMS-41-1X/0370/RTA/DC-K24 R901326199 ABZMS-41-1X/0390/M2/AC-K14 R901212595 ABZMS-41-1X/0500/D2/DC-K24 R901217082 ABZMS-41-1X/0500/M1S-K6 R978060073.
ABZMS-41-1X/0500/M2-T70F/AC-K6 R901212591 ABZMS-41-1X/0500/M2-T70F/DC-K24 R901269275 ABZMS-41-1X/0500/M2-T80F/DC-K24 R901269276 ABZMS-41-1X/0500/M2/AC-K14 R901322462 ABZMS-41-1X/0370/M1-TA/DC-K24 R901217038 ABZMS-41-1X/0370/M1S-K6.
R901285494 ABZMS-41-1X/0370/M2-T60F/AC-K6 R901269292 ABZMS-41-1X/0370/M2-T60F/DC-K24 R901212590 ABZMS-41-1X/0370/M2-T70F/DC-K24 R901269278 ABZMS-41-1X/0370/M2/AC-K14 R987443396 ABZMS-41-1X/0370/M2/AC-K14 RA1528+KIT R987422294.
ABZMS-41-1X/0370/M2/AC-K14 RA1528-7730 R901212588 ABZMS-41-1X/0370/M2/DC-K24 R901308432 ABZMS-41-1X/0370/M2/DC-K24 & R901212589 ABZMS-41-1X/0500/M2/DC-K24 R901212593 ABZMS-41-1X/0500/RTA/DC-K24 R901217161 ABZMS-41-1X/0800/M1S-K6 R901363154.
ABZMS-41-1X/0800/M2-T60F/DC-K24 R901269286 ABZMS-41-1X/0800/M2-T80F/AC-K6 R901269293 ABZMS-41-1X/0800/M2-T80F/DC-K24 R901269280 ABZMS-41-1X/0800/M2/AC-K14 R901269277 ABZMS-41-1X/0800/M2/DC-K24 R901269281 ABZMS-41-1X/0800/RTA/DC-K24.
R901219588 ABZMS-41-1X/1000/M1S-K6 R901288951 ABZMS-41-1X/1000/M2-T70F/DC-K24 R901287518 ABZMS-41-1X/1000/M2/AC-K14 R901269287 ABZMS-41-1X/1000/M2/DC-K24 R901282837 ABZMS-41-1X/1000/RTA/DC-K24 R901219589 ABZMS-41-1X/1200/M1S-K6 R901269289.
ABZMS-41-1X/1200/M2/DC-K24 R901336314 ABZMS-41-1X/1200/M3-TA/DC-K6 R901269294 ABZMS-41-1X/1200/RTA/DC-K24 For more information on Rexroth float switches and ABZMS level switches, please contact us!
Plain language sourcing guide for Rexroth ABZMS-41-1X Float Switch Sensor
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
