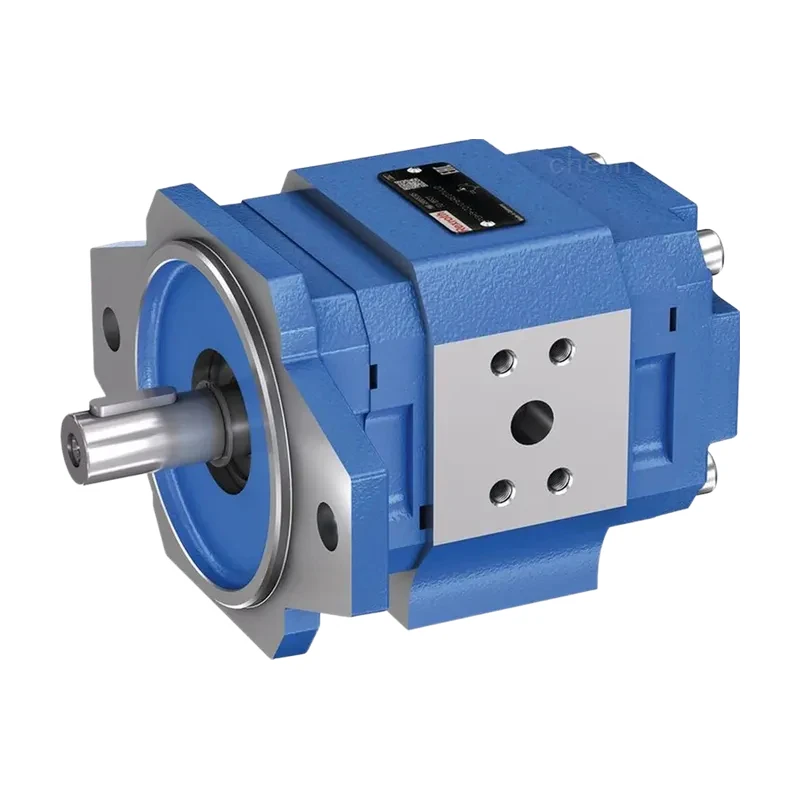

Rexroth gear pumps PGH2-2X/006RE07VU2, .
LEHIY item code: LH-0002
Quick buying check
This page helps you check Rexroth gear pumps PGH2-2X/006RE07VU2, . before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Rexroth distributes PGH2-2X/006RE07VU2 Rexroth gear pumps. The PGH type Rexroth hydraulic pump is a clearance-compensated internal gear pump with constant displacement. the pressure range through the open gap between the pinion shaft and the internal gear teeth within the suction range.
07 U2 Model 01 Internal gear pump, fixed displacement, clearance compensated PG series 02 High pressure pump, peak pressure 350 bar H Frame size BG 03 BG2 2 BG3 3 Component series 04 Component series 20 ... 29 (20 ...
29: mounting and connection dimensions remain unchanged) 2X Specification 05 BG2 5 005 6 006 8 008 BG3 11 011 13 013 16 016 Rotation direction 06 Right side when viewed from the drive shaft R Counterclockwise L Drive shaft 07 Complies with DIN 6885 Cylindrical shaft with assembly key.
E Complies with ANSI B92.1a Splined shaft with involute gear system SAE J744 16-4 (A) 9T 16/32DP R 19-4 11T 16/32DP S Piping connection 08 SAE compliant suction and pressure ports, pressure port standard pressure series 07 Seals 09 FKM (Fluororubber) V FKM (Fluororubber), shaft.
seal made of NBR (Nitrile Butadiene Rubber) 1) W Mounting flange 10 SAE 2-hole U2 11 More details are given in writing 1) For HFC hydraulic oil ordering example PGH3-2X/016RE07VU2 Part number R900951305 Some model and product type information do not match.
Please select the required pump according to the selection table (dimensions) or after consulting Bosch Rexroth.
01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 / + / + / + + Model 01 Dual-unit P2 Triple-unit P3 02 Series 1 of the first pump 1) 03 Specification 1 of the first pump 1) 04 Series 2 of.
the second pump 1) 05 Specification 1 of the second pump 1) 06 Series 3 of the third pump 1) 07 Specification 1 of the third pump 1) Rotation direction 08 Right side as seen on the drive shaft R Counterwise L Drive shaft of the first pump 09 Cylindrical.
shaft with mounting key conforming to DIN 6885 Splined shaft with involute gear system conforming to ANSI B92.1a SAE J744 16-4 (A) 9T 16/32DP R 19-4 11T 16/32DP S Piping connection of the first pump 10 SAE-compliant suction and pressure ports, pressure port standard.
pressure series.
- Drive shaft of the second pump 2)
- Cylindrical shaft A with mounting key conforming to DIN 6885. Splined shaft with involute gear system conforming to ANSI B92.1a. SAE J744 16-4 (A) 9T 16/32DP JR. Piping connection of the second pump
- SAE-compliant suction and pressure ports, pressure port standard pressure series
- Drive shaft of the third pump 2)
- Cylindrical shaft A mounting with key conforming to DIN 6885. Splined shaft with involute gear system conforming to ANSI B92.1a. SAE J744 16-4 (A) 9T 16/32DP JR. Piping connection of the third pump
- SAE-compliant suction and pressure ports, pressure port standard pressure series
- Pump mounting flange 15 SAE 2 holes 2) U2 1) See product type information for details 2) See the return pump size table Rexroth agent Rexroth gear pump PGH2-2X/006RE07VU2 in stock Rexroth gear pump installation Hydraulic oil tank Adjust the effective volume of the tank according to the working conditions. Do not exceed the permissible hydraulic oil temperature;
- use a cooler if necessary. Piping and connections Remove the protective plug at the Rexroth pump. Select the pipe inner diameter according to the connection (suction speed 1 to 1.5 m/s). For inlet pressure, refer to the technical data. Be sure to clean the pipes and fittings carefully before assembling the Rexroth. Proposal for piping layout Dimensions in mm Under no circumstances should the return fluid be directly sucked back in, ie, select the largest distance between the suction port and the return line. The suction line and return outlet must always be below the oil level. Ensure that the pipeline suction position is sealed during assembly. Filter If possible, use a return or pressure oil filter. (Use only a suction filter at the connection to the undervoltage switch/blockage indicator.) The hydraulic fluid must strictly adhere to the specifications in sample 90220. We recommend using Rexroth brand hydraulic fluid. Do not mix different types of hydraulic fluid, as this will lead to decreased and deteriorated lubrication performance. The hydraulic fluid must be changed at regular intervals, depending on operating conditions. Residue in the hydraulic fluid tank must also be cleaned during this connection. Radial and axial forces are not permitted on the Rexroth pump drive shaft of the drive motor + pump bracket + coupler + pump! The motor and Rexroth pump must be precisely aligned! Always use a coupler suitable for compensating for shaft displacement. Avoid axial forces during coupling;
- do not use impact tools or rely on pressing to connect. Use the internal thread of the drive shaft!
Plain language sourcing guide for Rexroth gear pumps PGH2-2X/006RE07VU2, .
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
