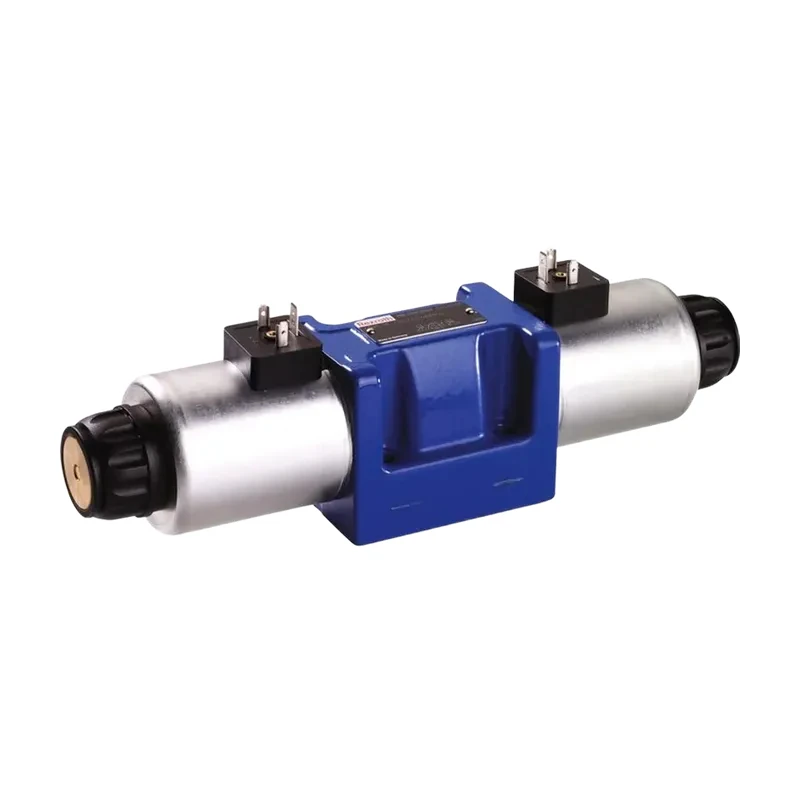

Rexroth solenoid valves 4WE 10 J5X/EG24N9K4/M

We are an authorized distributor of Rexroth solenoid valves 4WE 10 J5X/EG24N9K4/M. These are direct-acting Rexroth directional spool valves with electromagnetic start. The Rexroth WE 10...E solenoid valve is available in 10 component series (5X).

Maximum working pressure is 350 bar, and maximum flow rate is 160 l/min.

Features include three-position four-way, two-position four-way, or two-position three-way models. The port mounting surface conforms to ISO 4401-05-04-0-05. It features a high-power coil with optional 90° rotation. Electrical connection is available as a single or center-pair connection.

It can be used with a PWM connector (fast-switching amplifier, energy saving).

Auxiliary operating device is optional when the voltage is > 50 VAC or > 75VDC. CE compliance is required. It complies with the Low Voltage Directive 2006/95/EC. UR certified. The solenoid coil is UL 429 certified and CSA C22.2 certified.

139-10 Certification, Optional Rexroth Solenoid Valve WE Type Product Description: The WE type Rexroth directional valve is a solenoid-coil-activated directional spool valve that can be used as an electromagnetic assembly. This valve controls the start, stop, and direction of fluid flow.

The basic structure of these Rexroth directional valves consists of a housing.

• , one or two electronic coils
• , a control valve core
• , and a return spring
• . In the absence of power, the control valve core
• is fixed in the center or initial position by the return spring
• (except for model "O"). When the wet-pin electronic coil
• is energized, the control valve core
• moves from the rest position to the desired end position. Rexroth spool valve model.WE 10 E… Throttling insert “B..” When using a throttling insert
• in channels P, A, B, or T, the flow resistance at the valve will increase. Depending on the main operating conditions, if the flow rate may exceed the valve's performance limits during switching, a throttling insert will be required. No spring return “O” (symbols A, C, and D only) This model is a directional valve with 2 spool positions and 2 electronic coils without a positioner. A valve without a spring return at the control spool
• has no defined initial position when de-energized. directional valve with 2 spool positions and 2 electronic coils with a positioner. The positioner is used to lock the control spool
• in the relevant spool position. Therefore, during operation, there is no need to continuously apply current to the electronic coils, which helps with energy-saving operation. Note! If Rexroth valves have positioners, pressure spikes from two or more valves in the tank line may cause unexpected movement of the control valve spool! Therefore, we recommend providing a separate return line or installing a check valve in the tank line. Model WE 10 ../OF… Distributor of Rexroth solenoid valve 4WE 10 J5X/EG24N9K4/M, in stock and hot selling. Type codes 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 WE 10 5X / E / * 01 3 main ports 3 4 main ports 4 02 Directional valve WE 03 Specification 10 10 04 Symbols C, E, EA, EB, etc.;
• For optional models, please refer to “Symbols” z. B. C 05 Component series 50 … 59 (50 … 59: installation and connection dimensions unchanged) 5X 06 With spring return No code With remain reinforced compression spring D Without spring return O Without spring return, with positioner OF 07 High-power coils, wet-pin connectors, with removable coils. E 08 DC voltage 12 V;
• G12 DC voltage 24 V;
• G24 DC voltage 26 V;
• G26 DC voltage 48 V; 100/110 V - 50/60 Hz, allowable voltage tolerance +/- 10%);
• G96 DC voltage 110 V;
• G1101 DC voltage 125 V;
• G125: Nominal DC coil voltage 180 V when operating with AC voltage (AC power 200 V - 50/60 Hz, allowable voltage tolerance +/- 10%);
• G180: Nominal DC coil voltage 205 V when operating with AC power (AC power 230 V – 50/60 Hz, allowable voltage tolerance +/- 10%);
• G205 DC voltage 220

V. G220 AC voltage 100 V W100R1) AC voltage 110 V W110R1) AC voltage 120 V W120R1) AC voltage 200 V W200R1) AC voltage 230 V W230R1) Connect to AC power supply using a rectifier (see connection plug table).

2) For information on electrical connections and available voltages, please refer to "Technical Data". 09 Without manual emergency operation. No code. and protective cap. 5) N83) With lockable manual emergency operation "mushroom button" (large). N53;.

• With manual emergency operation "mushroom button" (large), non-lockable. N63) Corrosion resistance (external). 10 None (valve body primed). No code. Improved corrosion resistance (tested 240 hours salt spray, conforms to EN ISO 9227) (See also "Technical Data"). J3 Electrical connection. 11 Single connection without connector plug;
• connector DIN EN 175301-803 K46) Without connector plug;
• connector DIN EN 175301-803 (coil and valve body sealing element with insert connector base (IP67)). K4K6) 7) Without connector plug, 4 Pole connector with M12 x 1 conforming to IEC 60947-5-2 standard, integrated anti-interference protection circuit and status LED K72L 6) without connector plug;
• connector AMP Junior-Timer C4Z6) cable access on centering connection cover with indicator light DL central connection part on cover with indicator light (without connector plug);
• connector conforming to DIN EN 175201-804 DK6L without connector plug;
• threaded connection 1/2"-14 NPT DAL cable bundle coil on cover with indicator light and cable bridge on ground connection DJL mini switching connector, 5 poles DK25L For more information on electrical connections and available voltages, please refer to "Technical Data" Switching time increase 12 None Switching time increase none Code with Switching time increase (only for symbol ".73";
• not for model "D" with reinforced compression spring;
• more information available upon request) A12 13 without throttling plug None Code with throttling plug 8;
• ;
• Throttling valve diameter in mm: 0.8 mm, 1.0 mm, 1.2 mm. P B08 B10 B12 A H08 H10 H12 B R08 R10 R12 A and B N08 N10 N12 T 10) X08 X10 X12. More throttling insert diameters are available upon request. Control valve core clearance 14 Standard: None. Code: Small (reduced leakage → recommended for higher oil cleanliness). T06 Increased (hydraulic oil/ambient temperature difference > 25 K → recommended for increased internal leakage). T12 Sealing material 15 NBR seal M FKM seal

V. Seals for HFC hydraulic oil MH. Low temperature type MT. Please ensure seal compatibility with the hydraulic oil used. 16 CSA C22.2 139-10 certified. CSA port mounting surface conforms to ANSI B93.9 (if coil "a" is energized, then channel P...).

(Connected to Channel A) AN 17 provides more details* 1) Only applicable to “Center-connected” models 2) Only applicable to “Single-connected” models 3) Manual emergency operation cannot be assigned as a safety function. Manual emergency operation can only be used when tank pressure is up to 50 bar.

4) For tank pressures above 50 bar, there is no guarantee that the valve will remain in the “N5” manual emergency operation switch position. 5) The protective cap must be removed before activation. 6) Connecting plug, ordered separately, see connecting plug and sample. 08006. 7) Recommended for mobile machinery applications;.

additional seal between the solenoid coil and electrode tube. 8) When exceeding the permissible valve performance limits, a throttling insert should be installed (see performance limits). 9) Not applicable to cryogenic model "MT".

10) When using a throttling insert in Channel T, the pressure at the working port must not exceed 210 bar when connected to the tank cavity.

Note: For the directional spool valve NG10 with spool position monitoring, see sample 23352.
