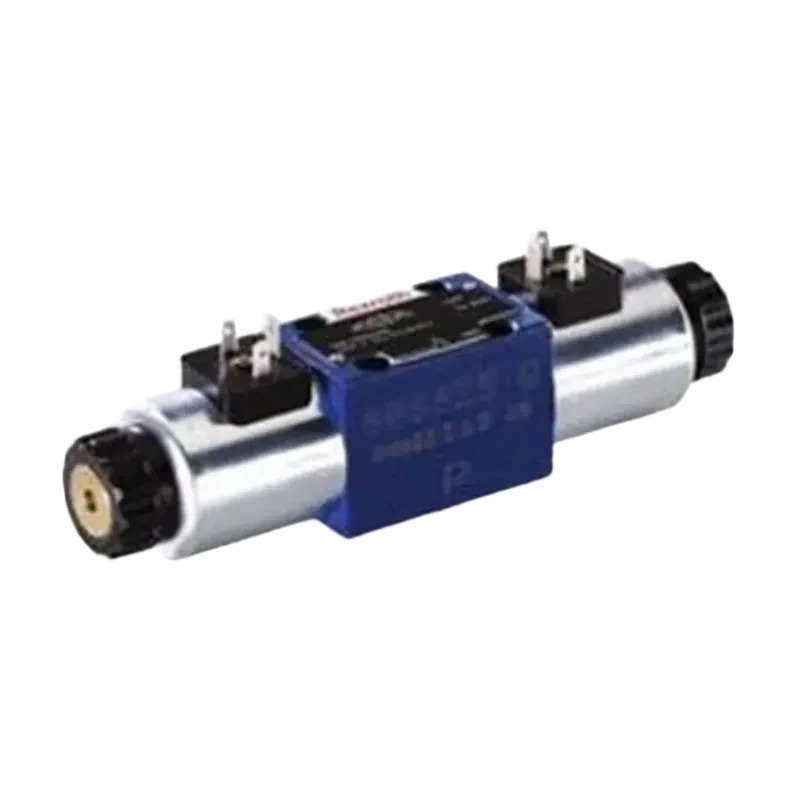

Rexroth Rexroth directional valve 4WE6D6X/EG24
LEHIY item code: LH-0005
Quick buying check
This page helps you check Rexroth Rexroth directional valve 4WE6D6X/EG24 before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Rexroth distributor offers Rexroth directional control valves 4WE6D6X/EG24N9K4QMBG24, direct-acting Rexroth directional control valves WE 6...E with electromagnetic actuation. Rexroth directional control valve WE 6...E specifications: 6-component series, 6X. Maximum working pressure: 350 bar. Maximum flow rate (DC): 80 l/min.
Maximum flow rate (AC): 60 l/min.
Rexroth directional control valve WE 6...E features: 3-position 4-way, 2-position 4-way, or 2-position 3-way models. Port mounting surface conforms to ISO 4401-03-02-0-05 (with or without hole locating). High-power coil, optional 90° rotation.
Electrical connection: as a single or center-connected auxiliary operating device, optional spool position monitoring, optional CE compliance when voltage > 50 VAC or > 75 VDC. Complies with Low Voltage Directive 2014/35/EU WE.
The solenoid coils of the 6...E Rexroth directional valves are approved components, marked with UR, compliant with UL 906, version 1982.
Optional Rexroth solenoid valves are CSA C22.2 39-1982 certified. Optional Rexroth directional valve WE product description: The WE model Rexroth directional valves are solenoid-coil operated directional spools, which can be used as solenoid components. They are used to control the start, stop, and direction of flow.
The basic structure of the Rexroth directional valve consists of a housing
- , one or two solenoids
- , a control spool
- , and a return spring
- . In the de-energized state, the control spool
- is held in the intermediate or initial position by the return spring
- (except for version "O"). desired fluid direction to be indicated according to the selected symbol. After the electromagnet
- is closed, the control valve core
- will be pushed back to the intermediate or initial position (except for valves with an "O" positioner and valves without a spring-loaded "O"). Auxiliary operation
- allows manual valve switching without the magnet being energized. The hydraulic system must be properly vented to ensure normal operation. "O" without spring return (only applicable to symbols A, C, and D): This type is "OF" without spring return (only applicable to symbols A, C, and D): This type is a directional valve with two switching positions and two electromagnets without a positioner. The control valve core
- is fixed in the corresponding switching position by the positioner. Therefore, during operation, there is no need to continuously apply current to the electromagnet, which helps with energy-saving operation. Rexroth distributor of Rexroth directional control valves 4WE6D6X/EG24N9K4QMBG24, model "73...A12" (soft switching behavior). The composition of the control spool and solenoid coil greatly reduces the number of switching strokes that occur when the valve opens or closes. Compared to standard valves, the switching stroke (measured as acceleration value a) can be reduced by approximately 85%, depending on the control spool model (see "Acceleration Value"). Note: Pressure spikes in the drain line connecting two or more Rexroth valves may cause unexpected control spool movement in models with positioners. It is recommended to lay a separate return line or install a check valve in the drain line. Due to their design, Rexroth valves experience internal leakage, which increases over their service life. Rexroth directional control valve model 4WE 6 E6X/...E... Throttling inserts are required depending on the primary operating conditions, if the flow rate may exceed the valve's performance limits during switching.
Plain language sourcing guide for Rexroth Rexroth directional valve 4WE6D6X/EG24
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Rexroth | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
Rexroth Rexroth directional valve 4WE6D6X/EG24
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
Rexroth Rexroth directional valve 4WE6D6X/EG24 verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
