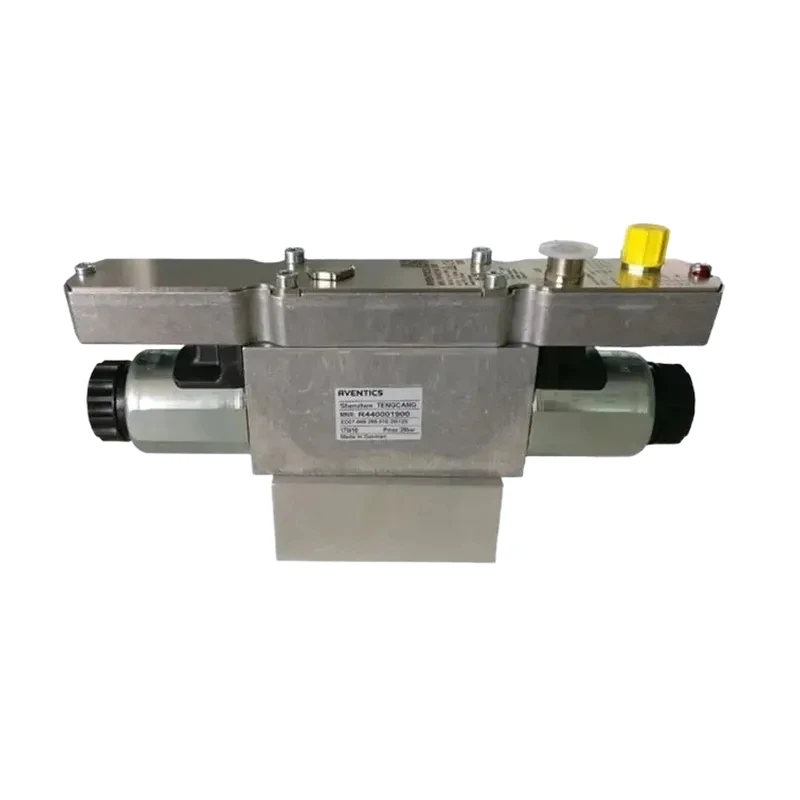

AVENTICS high-pressure proportional valve R414009669 laser cutting machine

AVENTICS R414009669 High-Pressure Proportional Valve for Laser Cutting Machines: A bottleneck in high-power cutting machines has always been how to control three gas streams with a single high-pressure valve.

This problem has now been solved with the AVENTICS high-pressure proportional valve (R414009669), developed by the German company AVENTICS, specifically designed to address this need. It is now widely used in high-power laser cutting equipment.

Currently, it is peak season for the laser industry, and in high-end laser cutting equipment, most systems on the market use ED05 valves to control oxygen and air, while high-pressure nitrogen is directly supplied to the weld via a pressure reducing valve.

The bottleneck in high-power laser cutting machines has always been how to control three gas streams with a single high-pressure valve.

This problem has recently been solved with the AVENTICS high-pressure proportional valve (R414009669), a newly developed product by the German company AVENTICS, specifically designed to address this need.

Anvoch R414009669 high-pressure proportional valve for laser cutting machines offers the following advantages:

• Wide application – A complete product series from low to high pressure, suitable for models from 500 to 10000W.
• Short lead time – This model is a standard stock item and is usually in stock.
• Fast after-sales response – Professional and efficient after-sales service significantly reduces customer downtime.
• High dynamic response – Dynamic response is superior to similar products.
• High precision – High positioning accuracy and repeatability.
• High linearity – Excellent linearity in both low and high pressure ranges. High-power laser cutting machines are widely used in the manufacturing of shipbuilding, engineering machinery, petroleum machinery, bridge construction, military industry, steel structures, elevators, wind power generation, boiler containers, railway locomotives, and other industries. Therefore, the Anvoch R414009669 high-pressure proportional valve for laser cutting machines is a standard high-pressure valve for high-power laser cutting machines and a crucial core component! AVENTICS high-pressure proportional valve R414009669 for laser cutting machines. Higher standards are required for the manufacture and operation of equipment and machines. If physical variables (such as temperature, pressure, force, speed, torque, etc.) can be adjusted according to specific working conditions, then the equipment or machine can meet high standards. This control technology is called electro-proportional pressure regulation technology. AVENTICS electro-proportional valves allow fluid to be proportionally controlled according to different input electrical signals. Therefore, equipment with electro-proportional valves has higher accuracy and can be applied to a wider range. Depending on the task, the control principle of electro-proportional pressure regulation technology usually falls into three categories: indirect regulation using a pilot valve, direct regulation using a single proportional electromagnet, and high dynamic regulation using two integrated proportional electromagnets. Aventics is an industry leader in the above-mentioned proportional valve electro-proportional regulation technology and provides various applications of this solution, such as suitable AVENTICS proportional valve electro-proportional control valve solutions. AVENTICS proportional valves are used to control the pressure downstream of the valve in a circuit. Its operating media are inert gases and compressed air, and it can control pressures from vacuum to 30 bar. The AVENTICS ED02 series proportional valves are compact electro-proportional valves. Their excellent performance provides optimized control solutions for a variety of applications. These proportional valves are also easy to stack. The AVENTICS ED05 series proportional valves are widely used control valves that operate through direct control using a proportional solenoid, combining precision, high dynamics, and large flow rates. ED07/ED12 series proportional valves (ED07 and ED12) are electro-proportional valves employing a high-dynamic control principle. This series of proportional valves can achieve extremely high flow rates, possessing ultra-dynamic control performance due to the use of independently controlled pressurization and exhaust proportional valve solenoids. The AVENTICS EV03 series proportional valves (EV03 single proportional valves) employing a pilot valve indirect control principle. This series uses a proportional valve solenoid, thus exhibiting ultra-dynamic control performance. suited for a wide range of mechanical control applications, with significant potential in industrial sectors such as food processing, textiles, industrial plant engineering control, medical technology, pharmaceutical machinery and packaging, and automotive manufacturing for automated production. They are used to operate critical control systems, remote control systems, and programmable loop control systems. stress.
• Spot Welding: Proportional pressure valves control the clamping force of the welding head;
• The pressure setting depends on the material being welded and its thickness.
• Force: The output force of the cylinder is controlled by pressure regulation;
• applications include: grinding, pneumatic presses, etc.
• Balancer: Pneumatic proportional control valves balance weight through cylinder pressure, allowing heavy loads to be easily lifted or lowered manually.
• Material Testing: Pressure is continuously increased until the tested material is damaged.
• Liquid Spraying: The spray pattern (such as coating width) is adjusted by controlling the pressure of the air supply nozzle.
• Leakage Testing: The proportional control of the pressure regulator precisely adjusts the test pressure according to different leakage test requirements.
• Tire Manufacturing: The tire diameter is controlled by the pressure regulation of the proportional valve, ensuring the quality of tire production.
• Laser Cutting: Gas pressure is adjusted according to material and thickness.
• Glass Bottle Forming: The optimal shape of the glass bottle is formed by controlling the internal air pressure.
• Flow Control: Flow control is achieved by continuously adjusting the valve diameter using displacement feedback signals (sensors). For more information on AVENTICS electro-proportional valve applications, please consult our professional pneumatic engineers or inquire about pricing and purchase.
