Rexroth solenoid directional valves
LEHIY item code: LH-0007
Quick buying check
This page helps you check Rexroth solenoid directional valves before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.

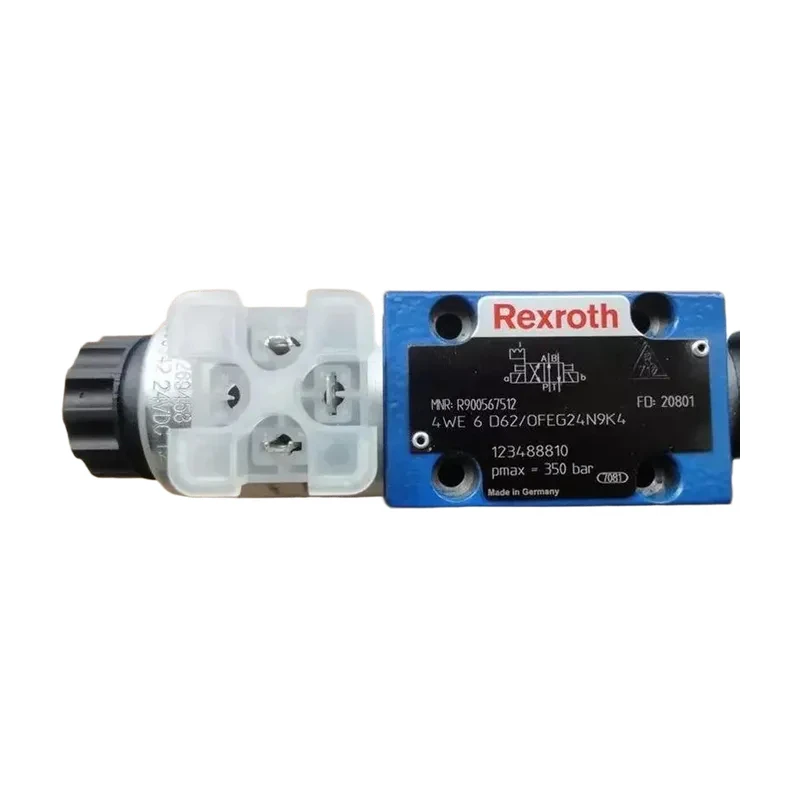

Original German Rexroth solenoid directional valve 4WE6D6X/OFEG24N9K4 is in stock. We only sell genuine Rexroth products, ensuring reliable quality and competitive pricing. Sufficient stock is available. Rexroth solenoid valves are widely used and in high demand. Please choose an authorized Rexroth valve distributor!
WE6 Series Rexroth Directional Control Valve Selection Reference: Rexroth solenoid valves, three-position four-way, two-position four-way, and two-position three-way hydraulic directional control valves with wet AC or DC solenoids. WE6../.E Bore: 6, 10.
6X Series Working Pressure 350 bar Flow Rate 80 L/min EH Oil System Rexroth Double-Head Unloading Solenoid Valve Model: 4WE6D6X/OFEG24N9K4 Actual Image: Original Rexroth Solenoid Directional Control Valve Types and Models: 6-bore single-head solenoid directional control valve 4WE6D (functions C, Y, EA, EB, HB).
6X/EG24N9K4 6-bore single-head solenoid directional control valve 4WE6D (functions C, Y, EA, EB, HB) 6X/EG24N9K4 6-bore double-head solenoid directional control valve 4WE6E (functions J, M, L) 6X/HG24N9K4 6-way dual-head solenoid directional valve 4WE6E (functions J, M, L) 6X/EG24N9K4; 10-way.
single-head solenoid directional valve 4WE10D (functions EA, EB, Y) 3X/CG24N9K4; 10-way dual-head solenoid directional valve 4WE10E (functions J, L, U) 3X/CG24N9K4.
Detailed explanation and example of Rexroth solenoid directional valves (Germany): 4WE6E6X/EG24N9K4: 4 → 4-way (also 3-way) 4-way ports; 6 → 6mm diameter; E → function symbol (also C, D, E, EA, EB, etc.); 6X → 60 to 69 series. Installation and port size remain unchanged.
After the slash (/): No symbol → spring return; O → no spring return.
OF → Springless return with *** function E → High-power electromagnet with detachable wet coil electromagnet G → DC voltage (W represents AC, eg, W230 represents AC 230V voltage 50/60Hz, G205 represents DC voltage 205V, etc., other voltages and frequencies) 24 → 24V voltage N9 → Represents implicit.
manual emergency operation (standard) (Only N indicates manual emergency operation; no manual emergency operation has no code) K4 → Electrical wiring type (separate wiring, with plug *** pin DIN43 650-AM2, no wire socket) (DL indicates centralized wiring with leads on the cover and a light indicator; DKL has a.
centralized plug on the cover and a light indicator (without a right-angle socket)) K4 after: No marking → No insertion-type throttling orifice B08 → Throttling orifice fl 0.8mm B10 → Throttling orifice fl 1.0mm B12 → Throttling orifice fl 1.2mm B08 after: No marking →.
Nitrile rubber seal V → Phosphorus rubber seal (Note the compatibility of the hydraulic oil and seals used) After V: No marking → without pin / 60 → with pin hole 4WE6D6X/OFEG24N9K4 Original German Rexroth solenoid directional valve in stock.
Models: 4WE6D7X/HG24N9K4 4WE6C7X/HG24N9K4 4WE6E7X/HG24N9K4 4WE6J7X/HG24N9K4 4WE6M7X/HG24N9K4 4WE6Y7X/HG24N9K4 4WE6D6X/EG24N9K4 4WE6C6X/EG24N9K4 4WE6E6X/EG24N9K4 4WE6J6X/EG24N9K4 4WE6Y6X/EG24N9K4 4E6G6X/EG24N9K4 4WE6H6X/EG24N9K4 4WE6D/OFEG24N9K4 4WE6EA6X/EG24N9K4 4WE6EB6X/EG24N9K4 4WE6U6X/EG24N9K4 3WE6A6X/EG24N9K4 4WE10Y3X/CG24N9K4 4E10D3X/CG24N9K4 4WE10EA3X/CG24N9K4 4WE10EB3X/CG24N9K4 4WE10E3X/CG24N9K4 4E10J3X/CG24N9K4.

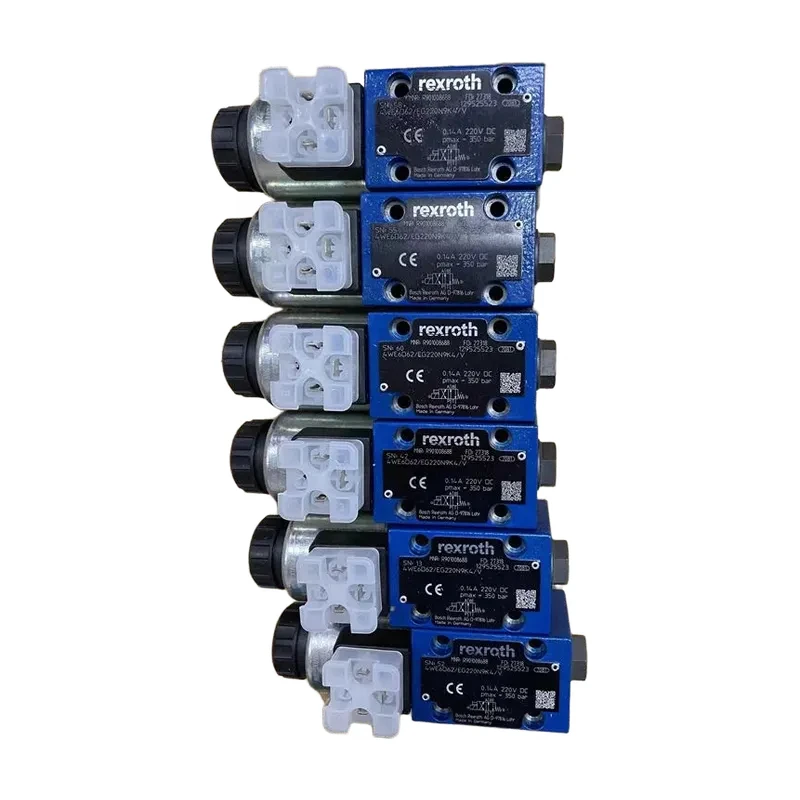

4WE10U3X/CG24N9K4 4WE10G3X/CG24N9K4 Product images for: 4WE10F3X/CG24N9K4, 4WE10M3X/CG24N9K4, 4WE6D6X/EW230N9K4, 4WE6D62/EG220N9K4/V; 4WE6E6X/EW230N9K4, 4WE6J6X/EW230N9K4, 4WE6D62/OFEG220N9K4, 4WE10D3X/CW230N9K4, 4WE10E3X/CW230N9K4, 4WE10J3X/CW230N9K4, 4WE10J50/EG24N9K4/M, 4WE10D5X/EG220N9K4/M.
Large stock available, genuine product with a 1-year quality guarantee! Inspection upon opening the box is supported. LEHIY Industrial maintains a large inventory of genuine Rexroth hydraulic valves and pumps, offering competitive prices and fast delivery. Inquiries and purchases are welcome!
Plain language sourcing guide for Rexroth solenoid directional valves
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Rexroth | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
Rexroth solenoid directional valves
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
Rexroth solenoid directional valves verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
