Festo authorized distributor offers great prices on MPPES proportional pressure valves.
LEHIY item code: LH-FESTO-0007
Quick buying check
This page helps you check Festo authorized distributor offers great prices on MPPES proportional pressure valves. before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Festo's authorized distributor offers excellent prices on FESTO proportional pressure valves (MPPES-3-1/4-10-420). For bulk orders, contact 187334. Further discounts are available; purchase directly from FESTO headquarters for incredibly attractive pricing. Expedited order processing and fast delivery are available.
Free services include FESTO proportional valve selection and after-sales technical installation guidance. Products come with a one-year warranty.
For any issues encountered while using FESTO proportional pressure valves (MPPES-3-1/4-10-42), such as insufficient air pressure, localized leaks during airtightness testing, or abnormal noise during operation, please contact us for one-stop technical support and after-sales service.
We have professional FESTO proportional directional valve selection samples and operation manuals available upon request. Distributor of Festo MPPES Proportional Pressure Valve: Functions and Applications: The German Festo MPPES proportional pressure valve is an integrated pressure sensor that senses the pressure at the working interface.
The control electronics compare the pressure value with the expected value. It then outputs an analog electrical signal based on the output pressure. expected value.
Festo MPPES Proportional Pressure Valve Technical Parameters: Nominal Diameter, Air Source 7 mm; Nominal Diameter, Exhaust 7 mm; Drive Method: Electrically Controlled; Seal Principle: Soft Seal; Installation Position: Optional; Structural Features: Pilot Piston; Safety Precautions: Safe Position MPPES: If the power cable is interrupted, the output pressure drops to 0.
bar.
Symbol 00995304 Reverse polarity protection applies to all electrical connections. Valve function: Three-way proportional pressure valve, normally closed. Working pressure: 1.2 MPa. Working pressure: 12 bar. Pressure adjustment range: 0 MPa ... 1 MPa. Pressure adjustment range: 0 bar ... 10 bar. Inlet pressure: 1 11 bar ... 12 bar.
Air source pressure: 1 MPa 1.1 MPa ... 1.2 MPa.
Maximum pressure hysteresis: 0.005 MPa. 24
V. Residual ripple: 10%. Setpoint/actual current type: 4-20 mA. Working medium: Compressed air, conforming to ISO 8573-1:2010 [7:4:4]. Inert gas operation and pilot medium description: Can be operated with lubricating medium (must be operated with lubricating medium continuously thereafter). Certification: RCM. Trademark: KC.
Marked with KC-EMV CE certification (see Declaration of Conformity). Complies with EU EMC Directive and EU RoHS Directive. CE Mark (see Declaration of Conformity). Complies with UK EMC Directive and UK RoHS Directive. Corrosion Resistance Rating: CRC 2 - Medium. Paint Wetting Defect Substances (PWIS) Compliance: VDMA24364-B2-L.
Medium Temperature: 0 °C ... 60 °C. Protection Rating: IP65. Ambient Temperature: 0 °C ... 50 °C. Product Weight: 1310 g. Electrical Interface: 8-pin M16x0.75 plug conforms to DIN 45326 standard. Circular Construction.
Mounting Method: With through-hole air interface, air port 1 G1/4 air interface, air port 2 G1/4 air interface, air port 3 G1/4. Material Specifications: RoHS compliant. Housing Material: Refined aluminum alloy. Diaphragm Material: NBR.

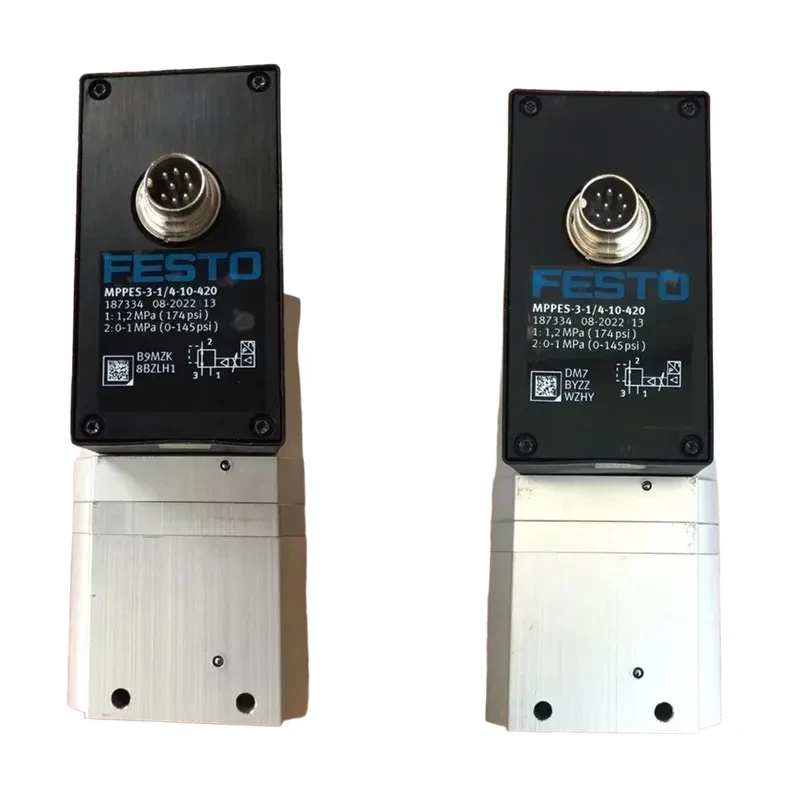

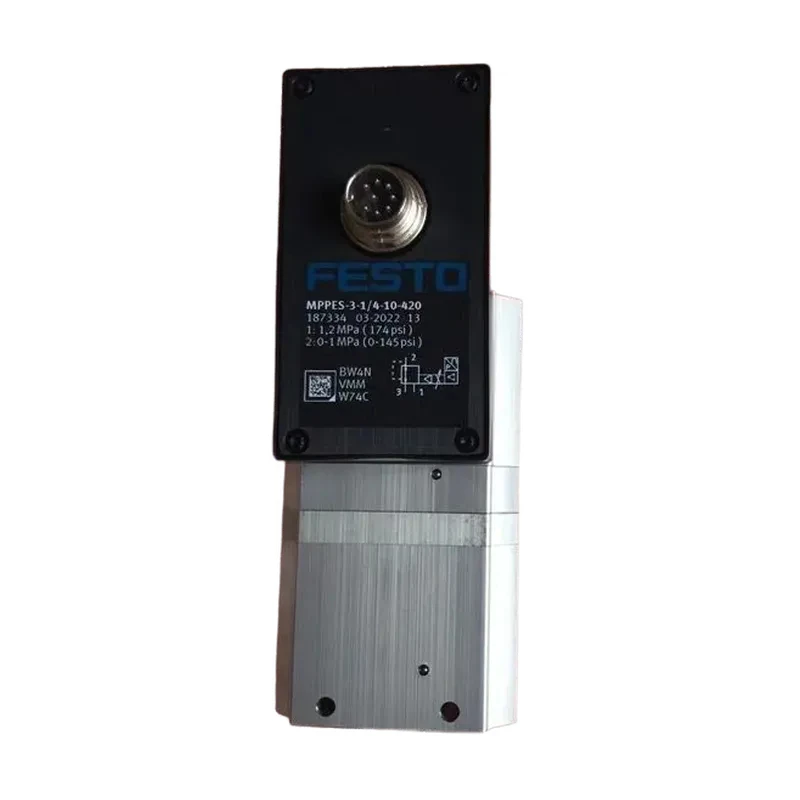

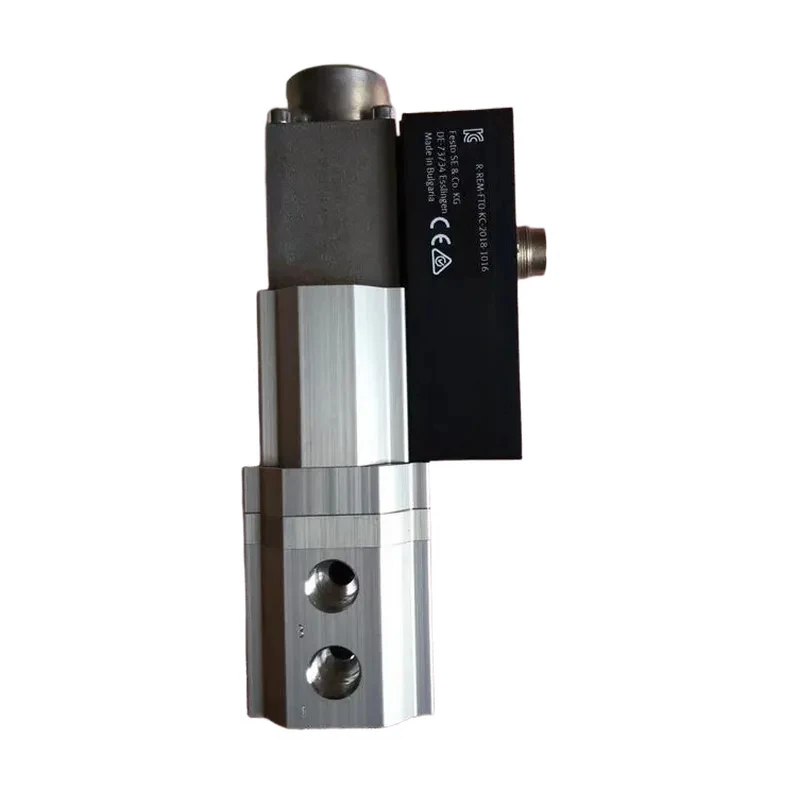

Project Price Advantage: Agent for FESTO pressure proportional valve MPPES-3-1/4-10-420. 187334. Actual Product Photos: Festo authorized distributor lists the following Festo proportional pressure valves (MPPES) at competitive prices: 187326 MPPES-3-1/2-10-010;.
187327 MPPES-3-1/2-10-420; 187328 MPPES-3-1/2-2-010; 187329 MPPES-3-1/2-2-420; 187330 MPPES-3-1/2-6-010; 187331 MPPES-3-1/2-6-420; MPPES-3-1/4-10-010.
187334 Pressure proportional valve MPPES-3-1/4-10-420 187335 Pressure proportional valve MPPES-3-1/4-2-010 187336 Pressure proportional valve MPPES-3-1/4-2-420 187337 Pressure proportional valve MPPES-3-1/4-6-010 187338 Pressure proportional valve MPPES-3-1/4-6-420.
187339 Pressure proportional valve MPPES-3-1/4-PU-PO-010 187347 Pressure proportional valve MPPES-3-1/8-PU-PO-010 187348 Pressure proportional valve MPPES-3-1/8-10-010 187349 Pressure proportional valve MPPES-3-1/8-10-420 187350 Pressure Proportional Valve.
MPPES-3-1/8-2-010, 187351 Pressure Proportional Valve MPPES-3-1/8-2-420, 187352 Pressure Proportional Valve MPPES-3-1/8-6-010, 187353 Pressure Proportional Valve MPPES-3-1/8-6-420.
For more information on Feso proportional pressure valves MPPES-3-1/4-10-420, including project discounts, inquiries about pre-sales and after-sales technical issues, please contact us!
Plain language sourcing guide for Festo authorized distributor offers great prices on MPPES proportional pressure valves.
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Festo | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
Festo authorized distributor offers great prices on MPPES proportional pressure valves.
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
Festo authorized distributor offers great prices on MPPES proportional pressure valves. verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
