Festo DPA-100-10-A 549401 (Germany)
LEHIY item code: LH-FESTO-0002
Quick buying check
This page helps you check Festo DPA-100-10-A 549401 (Germany) before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
The Festo DPA-100-10-A 549401 is a genuine Festo booster cylinder. The Festo DPA-100-10-A booster valve is a dual-piston pressurization device specifically designed for compressed air. When using compressed air for boosting, the integrated check valve automatically accelerates the pressurization on the second side.
The output pressure p2 can be increased to twice the air source pressure p1. The required output pressure is set via a manual pressure regulating valve. If the booster valve does not have a pressure regulating valve, the output pressure is twice the air source pressure.
The air source for both driving pistons is controlled by a pneumatic directional control valve, which automatically reverses after reaching the end of the stroke. to energy-saving mode, and automatically restarts if a pressure drop occurs during system operation.
For DPAs with a sensing option, the single stroke of the driving piston can be recorded by an external sensor and a cumulative counter.
Air Line Connections: Air Source Pressure Side: It is recommended to use a two-position three-way switch valve (eg, HE-…-D, HEE-…-D, or similar model) on the air supply line to the booster valve.
The two-position three-way switch valve should only be opened when the air source pressure pin has been established.
Output Pressure Side: It is recommended to connect a two-position three-way switch valve to the output pressure side of the booster valve for safe release of the output pressure pout.
If a two-position three-way switch valve is not used, venting can only be achieved by releasing the pressure regulating valve spring (turning the pressure regulating valve handle all the way to the left).

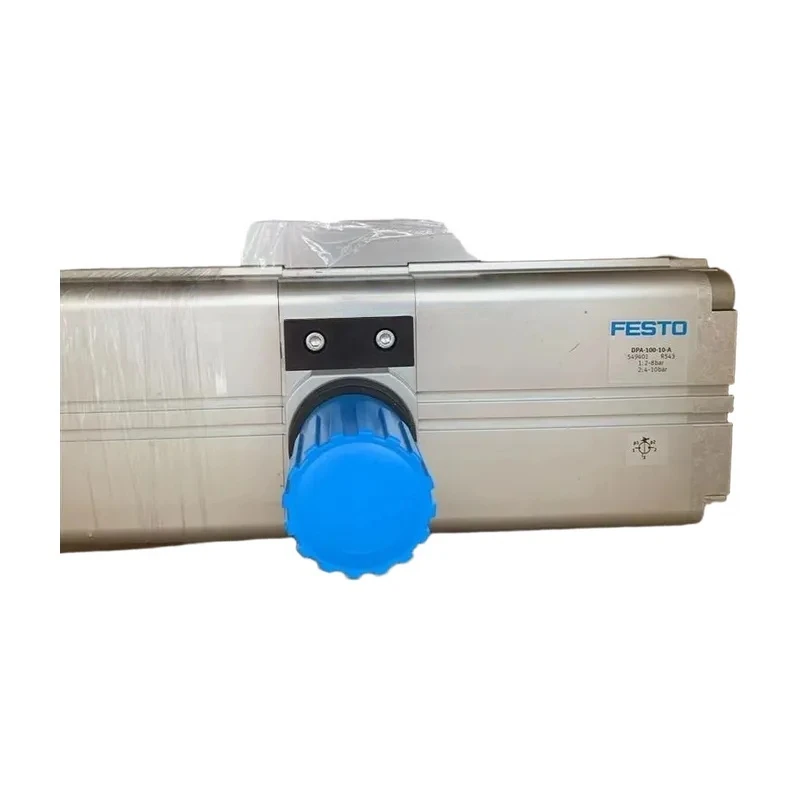

Festo DPA-100-10-A 549401 intensifier, actual product image as follows: Festo DPA-100-10-A 549401 Festo intensifier cylinder, main technical parameters are as follows: Piston diameter 100 mm Installation position Optional structural features Double piston intensifier valve with piston magnet Symbol 00991432 Pressure gauge (analog) or pressure.
display (digital) G1/4 Ready output pressure 2 4 bar ...
10 bar Working pressure 2 bar ... 8 bar Pressure regulation range 4 bar ... 10 bar Inlet pressure 1 2 bar ... 8 bar Note on pressure regulation range If the controller spring is tensioned to its maximum, the maximum output pressure can exceed 40%.
Working Medium: Compressed air, conforming to ISO 8573-1:2010 [7:3:4] Working and Pilot Medium Description: Not suitable for use with lubricating media. Corrosion Resistance Rating: CRC 2 - Medium. Paint Wetting Defect Substances (PWIS) Compliance: VDMA24364-B1/B2-L Storage Temperature: 5 °C ...
60 °C Ambient Temperature: 5 °C ...
60 °C Product Weight: 13000 g Installation Method: Install air inlet via internal thread. Air inlet 1: G1/2, Air inlet 2: G1/2, Air inlet 3: G1/2 Material Description: RoHS compliant. Our company has an advantage in supplying original and genuine Festo DPA-100-10-A 549401 turbochargers.
For product details of Festo DPA-100-10-A 549401 turbochargers, please contact our sales department.
Plain language sourcing guide for Festo DPA-100-10-A 549401 (Germany)
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
