Festo proportional valve VPPE-3-1-1/8-6-420-E1
LEHIY item code: LH-FESTO-0004
Quick buying check
This page helps you check Festo proportional valve VPPE-3-1-1/8-6-420-E1 before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
German FESTO proportional valve VPPE-3-1-1/8-6-420-E1 557775 Technical parameters: Rated diameter, pressurization: 5 mm; Rated diameter, exhaust: 2.5 mm; Actuation type: electric; Sealing principle: soft; Assembly position: arbitrary; Recommended vertical design structure: pilot-driven diaphragm pressure reducing valve; Short-circuit strength: for some.
electrical interfaces; Safety operating instructions: VPPE safety position: if the power cable breaks, the output pressure remains at the unadjusted state.
Polarity fault protection: For some electrical interfaces Reset type: Mechanical spring Pilot type: Pilot-controlled Valve function: 3-position proportional pressure reducing valve Display type: LED display 3-digit digital Pressure control range: 0.06 ... 6 bar Input pressure 1: 6 ...
8 bar Pressure hysteresis: 0.03 bar Standard rated flow: 800 l/min Operating voltage range DC: 21.6 ...
26.4 V Current consumption: 160 mA Continuous on-time: Power consumption: 4.2 W Residual ripple: 10% Switching output: PNP signal range, analog output: 4 - 20 mA Signal range, analog input: 4 - 20 mA Working medium: Compressed air conforming to ISO8573-1:2010 [7:4:4] Inert.
gas Notes on working and pilot medium: Lubricated compressed air must not be used CE symbol (see conforming standard): According to EU-EMV guidelines Corrosion resistance rating CRC: 2 – Moderate corrosion impact Medium temperature: 10 ...
Protection rating: IP65 Ambient temperature: 0...60 °C Authorization: RCM Mark c UL us - Listed (OL) Product weight: 390 g Linearity error, expressed in ± %FS: 1 %FS Temperature coefficient: 0.04 %/K Repeatability zero point, expressed in ± %FS: 0.5 %FS Electrical connection: Plug, M12, 5-pin.

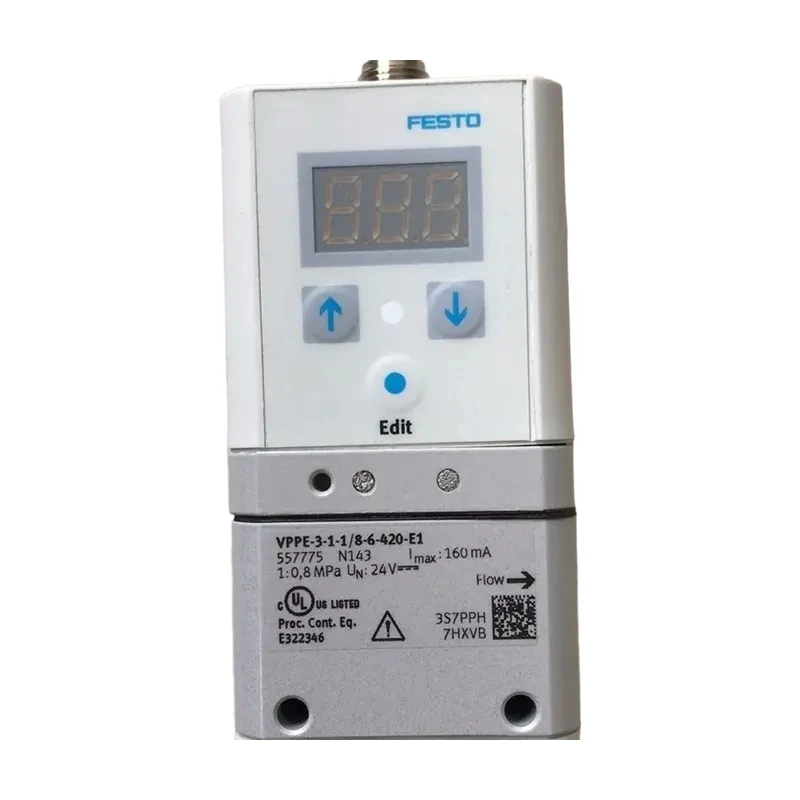

Mounting type: Pneumatic connection with through-hole, Port 1: G1/8 pneumatic connection, Port 2: G1/8 pneumatic connection, Port 3: G1/8 Material notes: RoHS compliant Housing material information: Forged aluminum alloy, anodized German FESTO proportional valve VPPE-3-1-1/8-6-420-E1 557775 Incoming product image:.
German FESTO proportional valve VPPE series model: 539639 VPPE-3-1/8-6-010 557771 VPPE-3-1-1/8-2-010-E1 557774 VPPE-3-1-1/8-2-420-E1 557777 VPPE-3-1-1/8-2-010-E1T 557779 VPPE-3-1-1/8-2-420-E1T.
557772 VPPE-3-1-1/8-6-010-E1 557775 VPPE-3-1-1/8-6-420-E1 567539 VPPE-3-1-1/8-6-010-E1T 567540 VPPE-3-1-1/8-6-420-E1T 557773 VPPE-3-1-1/8-10-010-E1 557776.
VPPE-3-1-1/8-10-420-E1 557778 VPPE-3-1-1/8-10-010-E1T 557780 VPPE-3-1-1/8-10-420-E1T For more information on FESTO proportional valves, including selection, technical inquiries, and quotations, please call us!
Plain language sourcing guide for Festo proportional valve VPPE-3-1-1/8-6-420-E1
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Festo | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
Festo proportional valve VPPE-3-1-1/8-6-420-E1
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
Festo proportional valve VPPE-3-1-1/8-6-420-E1 verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
