Festo compact cylinder ADVUL
LEHIY item code: LH-FESTO-0001
Quick buying check
This page helps you check Festo compact cylinder ADVUL before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.

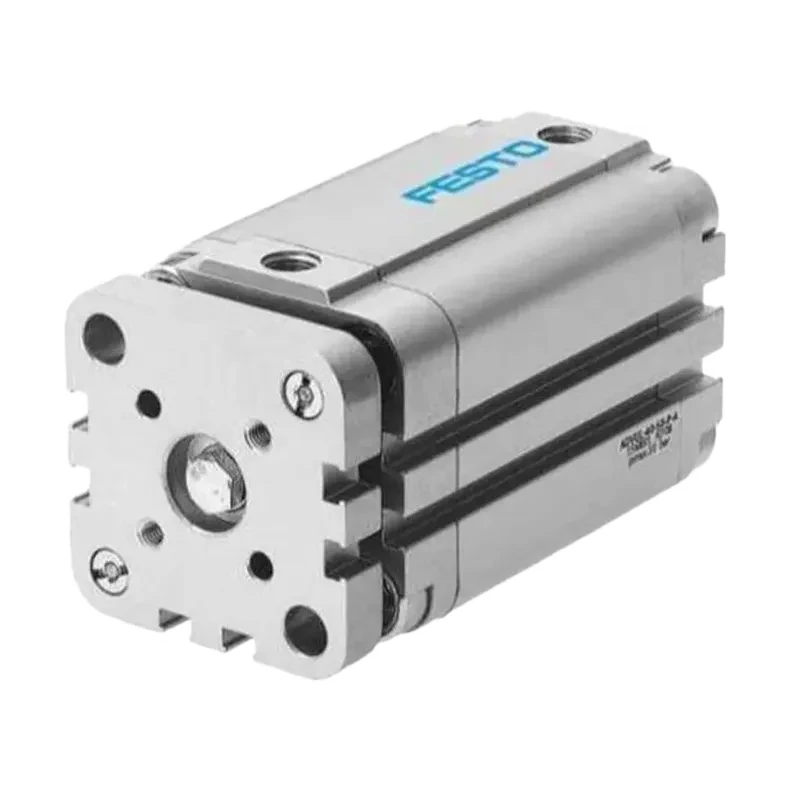

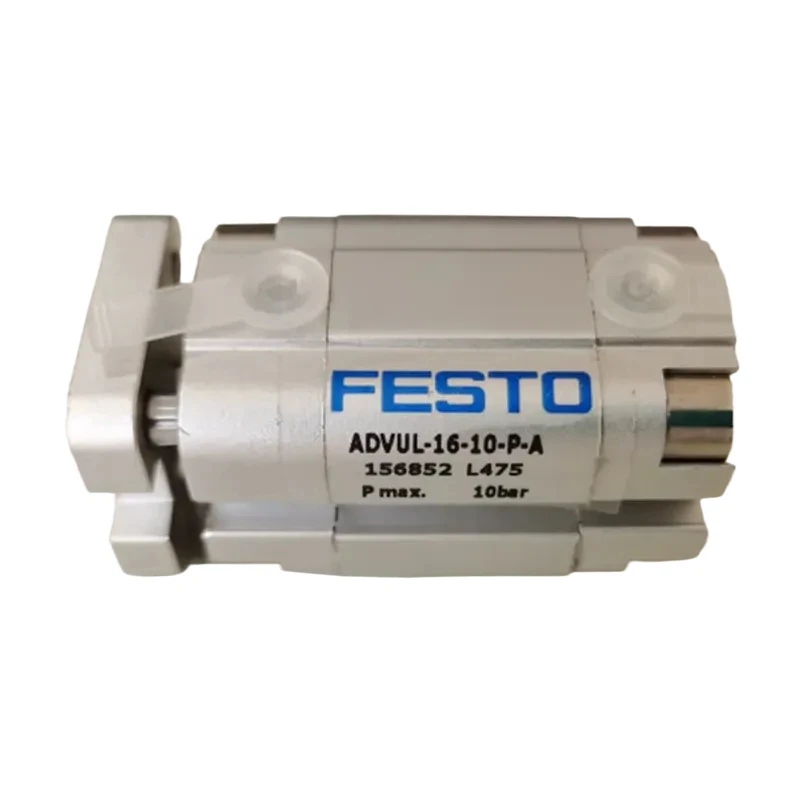

The Festo ADVUL compact cylinder, model ADVUL-16-10-PA 156852, is a compact, double-acting cylinder from Germany. It features a piston, guide rod, and connecting plate, and is torsional resistant. Multiple mounting options are available.
---Piston rod prevents torsion via guide rod and connecting plate---Sliding guide rail---Optional double-outlet piston rod---For position detection---Guide rod and connecting plate ensure piston rod anti-torsion---Profile groove for mounting proximity switch---Wide range of accessories---Specific form conforming to ATEX directive for use in.
potentially explosive environments.
Festo ADVUL-16-10-PA cylinder, main technical parameters are as follows: Stroke 10 mm Piston diameter 16 mm Buffering Elastic buffer rings/pads at both ends Mounting position Optional structural features Cylinder diameter Piston rod position Through detection proximity switch Symbol 00991737 Derivative type One-end piston rod.
torque/guide protection Guide rod with connecting plate Working pressure 0.15 MPa ...
1 MPa Working pressure 1.5 bar ...
10 bar Working mode Double-acting Working medium Compressed air, conforming to ISO 8573-1:2010 [7:4:4] Working and pilot medium description Operating with lubricating media (must continue operating with lubricating media afterwards) Corrosion resistance rating CRC 2 - Medium corrosion resistance Paint wetting defect substance (PWIS) compliance.
VDMA24364-B1/B2-L Ambient temperature -20 °C ...
80 °C Impact energy at the end 0.1 J Theoretical force at 6 bar, return stroke 90 N Theoretical force at 6 bar, forward stroke 121 N Mounting method: Either: With through hole Pneumatic interface with accessories M5 with ring screw Material High alloy stainless steel Cap material Refined.
aluminum alloy Dynamic seal material NBR TPE-U(PU) Piston rod material High alloy stainless steel Cylinder material Refined aluminum alloy Festo compact cylinder ADVUL Various models are as follows: ADVUL-12-5-PA 156844 ADVUL-12-10-PA 156845 ADVUL-12-15-PA 156846 ADVUL-12-20-PA 156847.
ADVUL-12-25-PA 156848 ADVUL-12-30-PA 156849 ADVUL-12-40-PA 156850 ADVUL-12- -PA-S2 165089 ADVUL-12- -PA-S6 156210 ADVUL-12- -PA 156200 ADVUL-16-5-PA 156851 ADVUL-16-10-PA 156852 ADVUL-16-15-PA 156853 ADVUL-16-20-PA 156854.
ADVUL-16-25-PA 156855 ADVUL-16-30-PA 156856 ADVUL-16-40-PA 156857 ADVUL-16- -PA-S2 165090 ADVUL-16- -PA-S6 156211 ADVUL-16- -PA 156201 ADVUL-20-5-PA 156858 ADVUL-20-10-PA 156859 ADVUL-20-15-PA 156860 ADVUL-20-20-PA 156861.
ADVUL-20-25-PA 156862 ADVUL-20-30-PA 156863 ADVUL-20-40-PA 156864 ADVUL-20-50-PA 156865 ADVUL-20- -PA-S2 165091 ADVUL-20- -PA-S6 156212 For product details, please contact our sales department.
Plain language sourcing guide for Festo compact cylinder ADVUL
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
