Burkert 2000 pneumatic angle seat valve distributor Burkert drain valve now available
LEHIY item code: LH-0376
Quick buying check
This page helps you check Burkert 2000 pneumatic angle seat valve distributor Burkert drain valve now available before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.

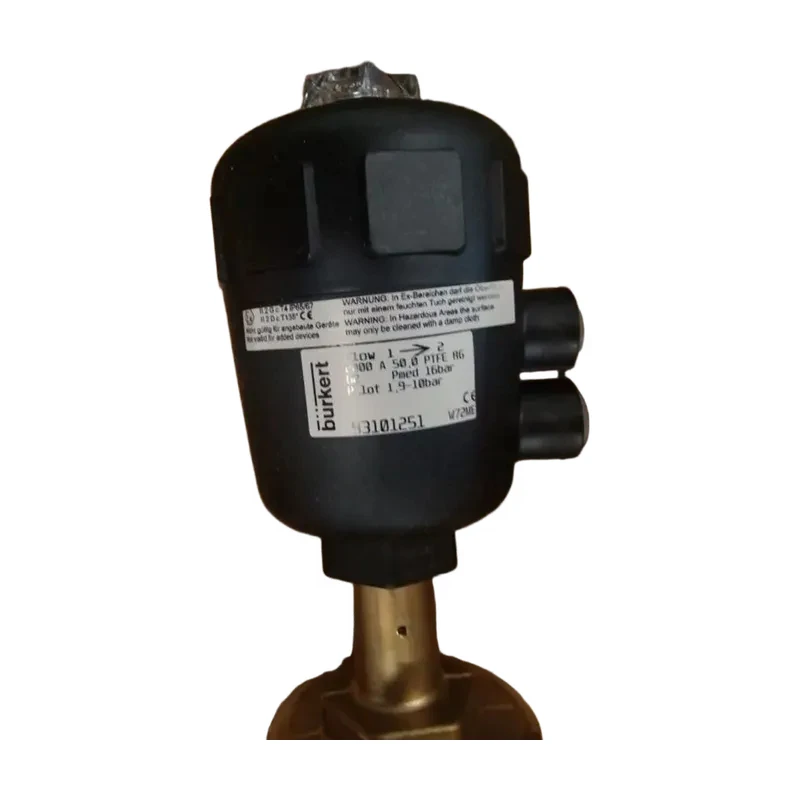

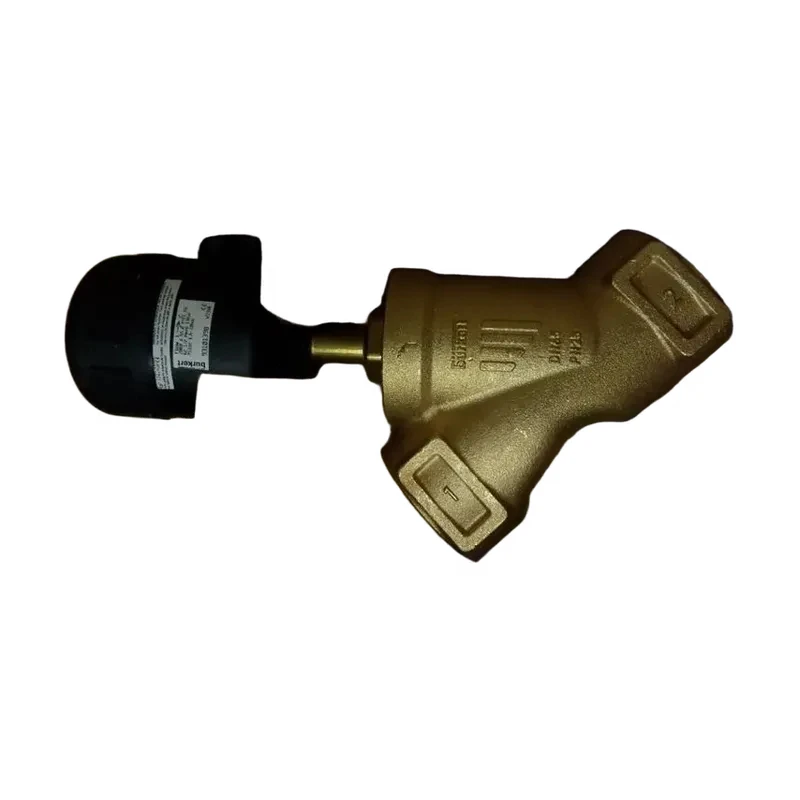

Burkert Model 2000 pneumatic angle seat valve, available from Baode Drain Valve distributors. The Burkert Model 2000 pneumatic angle seat valve is simple in structure, small in size, and lightweight, consisting of only a few parts.
It can be quickly opened and closed with a simple 90° rotation, making operation easy.
This Burkert valve also has excellent fluid control characteristics. When the butterfly valve is in the fully open position, the thickness of the butterfly The Burkert Model 2000 pneumatic angle seat valve is an externally controlled valve consisting of a pneumatic piston actuator and a two-way valve.
The Burkert Model 2000 pneumatic angle seat valve is an externally controlled valve consisting of a pneumatic piston actuator and a two-way valve. body.
Depending on the ambient temperature, two different actuator materials (PA and PPS) are available. A proven, self-adjusting spindle seal ensures high sealing performance. Burkert pneumatic angle seat valves feature a 2-position, 2-way valve body made of brass or precision-cast stainless steel, enabling high flow rates.
Various accessories can be added to these maintenance-free, robust valves for position indication, travel limiters, or manual emergency operation.
Burkert pneumatic angle seat valve model 2000 selection: Burkert angle seat valve DN13, threaded connection G1/2, pressure 16 bar, order number: 001252 (brass body) / 001421 (stainless steel body); Burkert angle seat valve DN20, threaded connection G3/4, pressure 16 bar, order number: 001253 (brass body) / 001422 (stainless.
steel body); Burkert angle seat valve DN25, threaded connection G1 inch, pressure 16 bar, order number: 001248 (brass body) / 001137 (stainless steel body); Burkert angle seat valve DN32, threaded connection G1 1/4, pressure 16 bar.
The following Burkert angle seat valves are available with order numbers 001249 (brass body) / 001139 (stainless steel body): DN40, threaded connection G1 1/2, pressure 16 bar; 001250 (brass body) / 001400 (stainless steel body): DN50, threaded connection G2, pressure 16 bar; 001251 (brass body) / 001401 (stainless steel.
body): DN65, threaded connection G2 1/2, pressure 14 bar; and 001398 (brass body) / 001402 (stainless steel body).
The media handled by these Burkert angle seat valves are gas and steam, and the sealing material is PTFE. For more Burkert products and Burkert angle seat valve selection information, please consult our sales staff.
Burkert 2000 pneumatic angle seat valve, available from Baode Drain Valve distributors, plays a crucial role in mechanical operations.
Proper use requires not only strong technical skills but also guaranteed quality. This necessitates necessary maintenance and upkeep of the pneumatic valve. A scientific approach to maintenance is essential to achieve the desired results and application objectives. Daily maintenance precautions for Burkert 2000 pneumatic angle seat valves:
- The purpose of maintenance is to extend the valve's lifespan and ensure reliable opening and closing.
- The valve stem thread, which frequently rubs against the valve stem nut, should be lubricated with a small amount of grease, molybdenum disulfide, or graphite powder.
- For valves not frequently opened or closed, periodically rotate the handwheel to add lubricant to the valve stem thread to prevent seizing.
- Outdoor valves should have a protective sleeve on the valve stem to prevent rain, snow, dust, and rust.
- If the valve is mechanically operated, add lubricating oil to the gearbox regularly.
- Keep the valve clean regularly.
- Regularly check and maintain the integrity of all valve components. If the handwheel retaining nut comes loose, replace it immediately;
- do not use a makeshift replacement, otherwise it will wear down the square area on the upper part of the valve stem, gradually losing its reliable fit and eventually preventing operation.
- Do not lean on the valve to support heavy objects, and do not stand on the valve.
- The valve stem, especially the threaded part, should be wiped clean regularly. Replace any lubricant that has become dirty with dust, as dust contains hard impurities that can easily wear down the threads and valve stem surface, affecting the service life of the pneumatic single-seat regulating valve.
Plain language sourcing guide for Burkert 2000 pneumatic angle seat valve distributor Burkert drain valve now available
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Burkert | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
Burkert 2000 pneumatic angle seat valve distributor Burkert drain valve now available
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
Burkert 2000 pneumatic angle seat valve distributor Burkert drain valve now available verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
