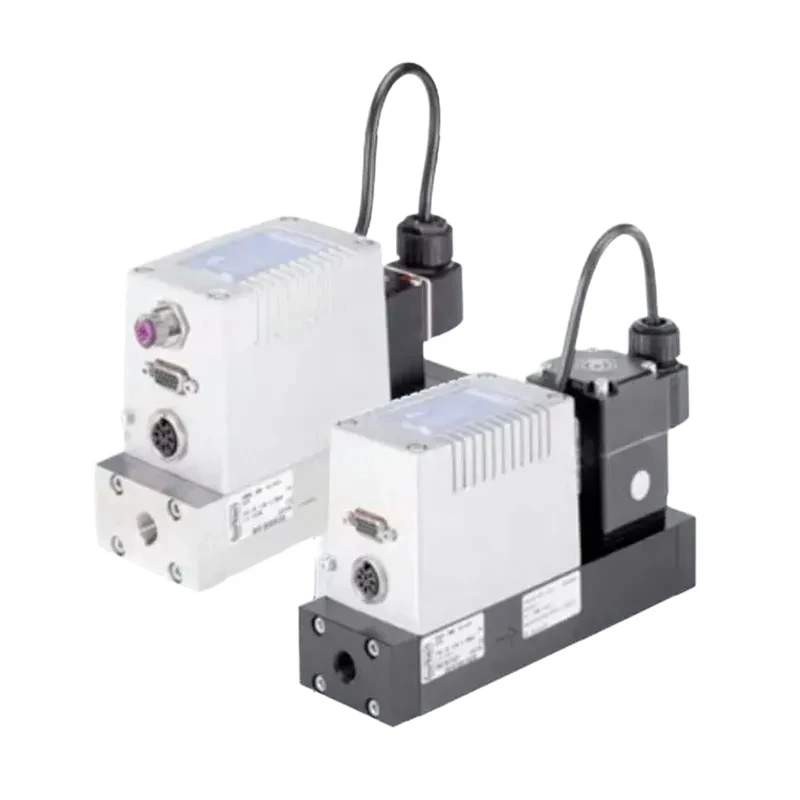

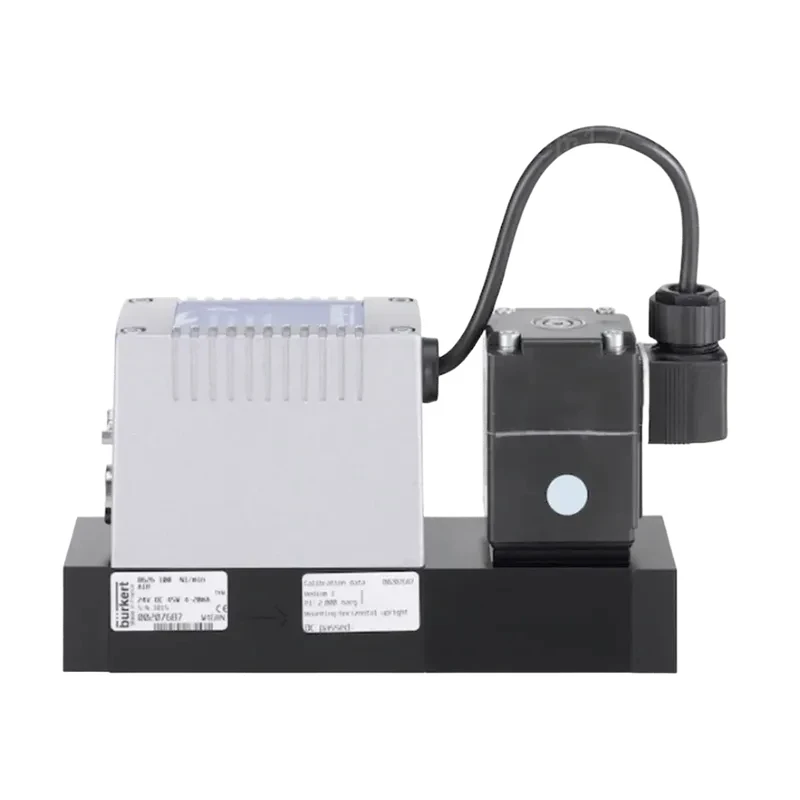

Burkert Mass Flow Controller (MFC) from Germany
LEHIY item code: LH-0001
Quick buying check
This page helps you check Burkert Mass Flow Controller (MFC) from Germany before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Burkert Mass Flow Controller (MFC) - Burkert Gas Mass Flow Controller (MFC) / Burkert Gas Mass Flow Meter (MFM) Burkert Flow Controller | Burkert Liquid Flow Controller: Burkert mass flow meters for gases and liquids offer higher precision in liquid control. They are widely used, especially in the food and biopharmaceutical industries.
What is a Burkert Mass Flow Controller?
Introduction: The German Burkert mass flow controller, abbreviated as MFC, typically consists of a circuit board, sensor, inlet/outlet gas pipe connectors, distributor pipes, housing, regulating valve, and other components.
Applications and Features of German Burkert Mass Flow Controllers: The German Burkert mass flow controller (MFC) is used for the precise measurement and control of the mass flow rate of gases or liquids.
Applications include diffusion, oxidation, molecular beam epitaxy, CVD, plasma etching, sputtering, ion implantation, vacuum coating equipment, optical fiber melting, microreactors, gas mixing systems, capillary gas chromatographs, and optical fiber manufacturing equipment. It is also widely used in petrochemicals, metallurgy, and pharmaceuticals.
Features: High precision and good repeatability.
Burkert Mass Flow Controller (MFC) Product List (Germany): Burkert Liquid Mass Flow Controller (MFC)/Burkert Mass Flow Meter (MFM) Type 8756: Flow measurement up to 25 kg/h * high accuracy and measurement range, long service life, no zeroing required, chemically resistant materials for various liquids.
Burkert Gas Flow Controller (MFC)/Burkert Flow Meter (MFM) Type 8745: Nominal flow range from 20 lN/min to up to 2500 lN/min, high measurement accuracy and repeatability, communicates via standard signals or industrial Ethernet, electromagnetic and electric valve actuators available, easy device replacement with configuration memory.
Burkert Gas Mass Flow Controller (MFC)/Burkert Gas Mass Flow Meter (MFM) Type 8746: Rated flow range from 20 lN/min to 2500 lN/min, high accuracy and high repeatability with extremely fast response, durable flow calibration, configuration memory simplifies device replacement. Optional: ATEX II 3G/D class or USP.
Burkert Gas Mass Flow Controller (MFC)/Burkert Mass Flow Meter (MFM) Type 8742 (Class VI, FDA, EC 1935 Compliance) - Rated flow range: 0.010 lN/min to 160 lN/min. High measurement accuracy and repeatability with extremely fast response. Durable flow calibration and memory card configuration simplify device replacement.
Optional: ATEX II Category 3G/D or USP Class VI, FDA, EC 1935 Compliance. Burkert Mass Flow Regulator (MFC)/Mass Flow Meter (MFM) Type 8741 (For gases) - Utilizes MEMS technology for direct flow measurement. High measurement and repeatability accuracy. Extremely short response time. Fieldbus communication based on CANopen.
Burkert Gas Mass Flow Controller (MFC) Type 8711 (Nominal flow range: 0.010 lN/min to 80 lN/min). High measurement accuracy and repeatability, exceptionally fast control speed. Optional: Fieldbus interface. German Burkert Gas Mass Flow Controller (MFC) Type. 8713.
Nominal flow range: 0.010 lN/min to 80 lN/min.
High measurement accuracy and repeatability, exceptionally fast control speed. Digital communication via RS485. Compact version. German Burkert Gas Mass Flow Controller (MFC) Type 8712. Nominal flow range: 0.010 lN/min to 80 lN/min. High measurement accuracy and repeatability, exceptionally fast control speed. Protection rating: IP65. Optional: Fieldbus interface.
German Burkert flow regulator, suitable for gas flow control systems. Type 8750. High economy through integrated system solutions. Reliable, robust system. Automatic process coordination. Simple operation. Can operate independently. German Burkert Gas Mass Flow Controller (MFC) Type 8710. Nominal flow range from 0.005 lN/min to 15 lN/min.
High measurement accuracy and repeatability, suitable for corrosive gases. Optional: Fieldbus interface, German Burkert Gas Mass Flow Controller (MFC) Type 8626, nominal flow range from 20 lN/min to up to 1500 lN/min, high measurement accuracy and repeatability, fast control speed, IP65 protection rating.
Optional: Fieldbus interface, German Burkert Multi-Channel Gas Mass Flow Controller (MFC) / Burkert Gas Mass Flow Meter (MFM) Type 8735, rated flow range: 0.01 lN/min to 20 lN/min, high accuracy and repeatability, extremely fast response time, modular design with add-on modules, custom systems without design costs.
Plain language sourcing guide for Burkert Mass Flow Controller (MFC) from Germany
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Burkert | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
Burkert Mass Flow Controller (MFC) from Germany
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
Burkert Mass Flow Controller (MFC) from Germany verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
