Burkert 2875 proportional valve 255716 4mm
LEHIY item code: LH-0003
Quick buying check
This page helps you check Burkert 2875 proportional valve 255716 4mm before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.

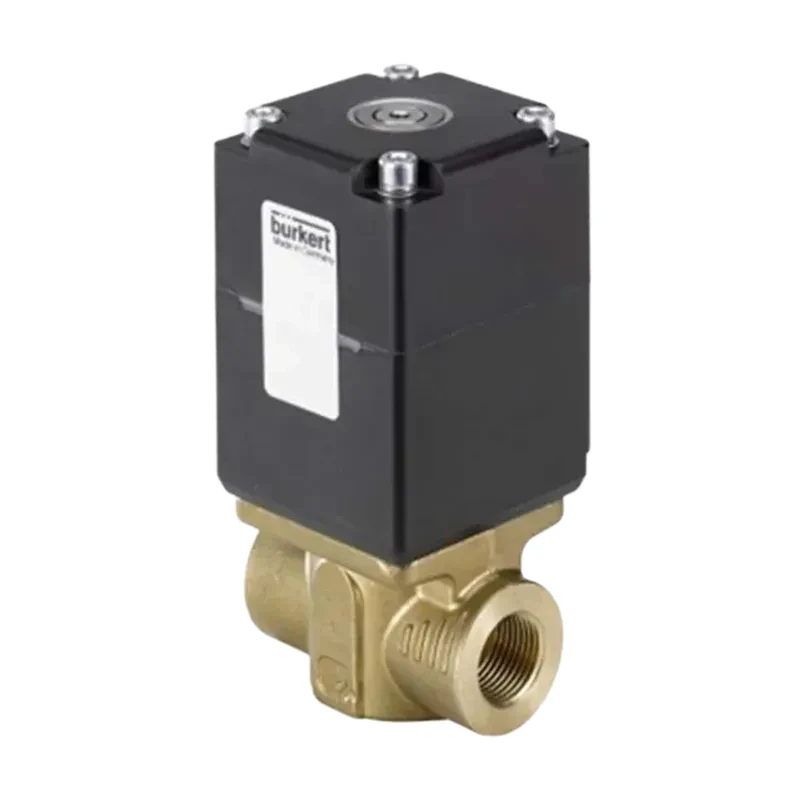

The Burkert 2875 proportional valve (model 255716, 4mm) is a brass G1/2 inch direct-acting two-way standard Burkert proportional solenoid valve.
The working principle is based on the electromagnetic switching valve principle: when de-energized, the spring presses the iron core directly onto the valve seat, closing the Burkert valve.
When the coil is energized, the generated electromagnetic force overcomes the spring force, lifting the iron core and opening the valve. The Burkert proportional solenoid valve modifies the structure of the electromagnetic switching valve: under any coil current, a balance is achieved between the spring force and the electromagnetic force.
The magnitude of the coil current or the electromagnetic force affects the plunger stroke and opening valve, and the valve opening (flow rate) has an ideal linear relationship with the coil current (control signal). solenoid valve, the flow direction is downward from the valve seat.
The medium flows in from below the valve seat, and the direction of its force is the same as the electromagnetic force but opposite to the spring force.
Therefore, it is necessary to set the maximum and minimum flow rates corresponding to the operating range (coil current) under the working state.
Burkert proportional solenoid valves from Derek Fluids are always closed when power is off (NC, normally closed type). The Burkert 2835 proportional solenoid valve is discontinued, replaced by the 2875 model. All Burkert proportional valves and controllers are sourced directly from the German Burkert manufacturer, guaranteeing authenticity.
We offer a ten-fold compensation for any counterfeit products. 2875 proportional valve (255716 4mm) can be controlled using the Burkert 8605 or 8611 universal controller.
In principle, the Burkert 8605 controller converts the analog setpoint signal at the input into a corresponding pulse-width modulated (PWM) signal output, which is then used to control the proportional solenoid valve.
Furthermore, the Burkert 8605 controller features current regulation to compensate for coil heating, adapts the minimum and coil maximum current to the applied pressure conditions, zero-point cutoff, and ramp functions.
The 8611 general-purpose controller can control process values such as temperature and frequency, or output PWM signals to control Burkert proportional solenoid valves. Burkert products are primarily used in industries including biopharmaceuticals, food, beer, beverages, water treatment, gas, chemicals, refrigeration, textiles, automotive, and fire protection.
Burkert products are categorized by physical process: measurement, control, gas handling, water treatment, cooling systems, sanitary processes, steam, or micro-flow systems. Burkert products encompass solenoid valves, process control valves, analytical valves, pneumatic pilot systems, sensors, and controllers.
Burkert proportional valves with controllers 2875+8605 are available in some models: The Burkert proportional solenoid valve 2835 is discontinued; the 2875 model replaces it (176005, replacement number 00255726), and is paired with the 8605 controller (178354, 8605 controller 178364).
Plain language sourcing guide for Burkert 2875 proportional valve 255716 4mm
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Burkert | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
Burkert 2875 proportional valve 255716 4mm
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
Burkert 2875 proportional valve 255716 4mm verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
