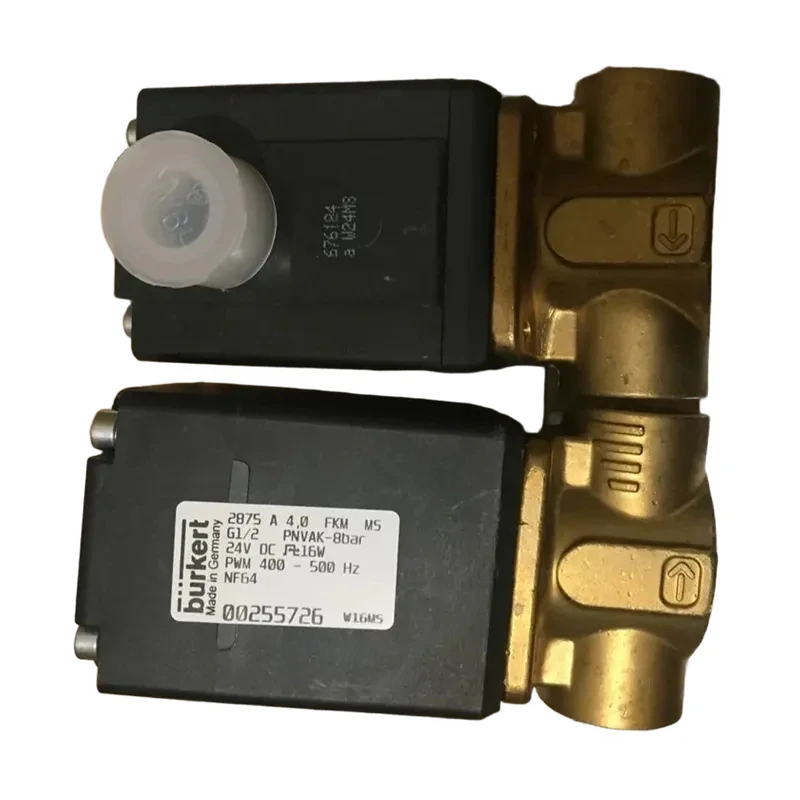

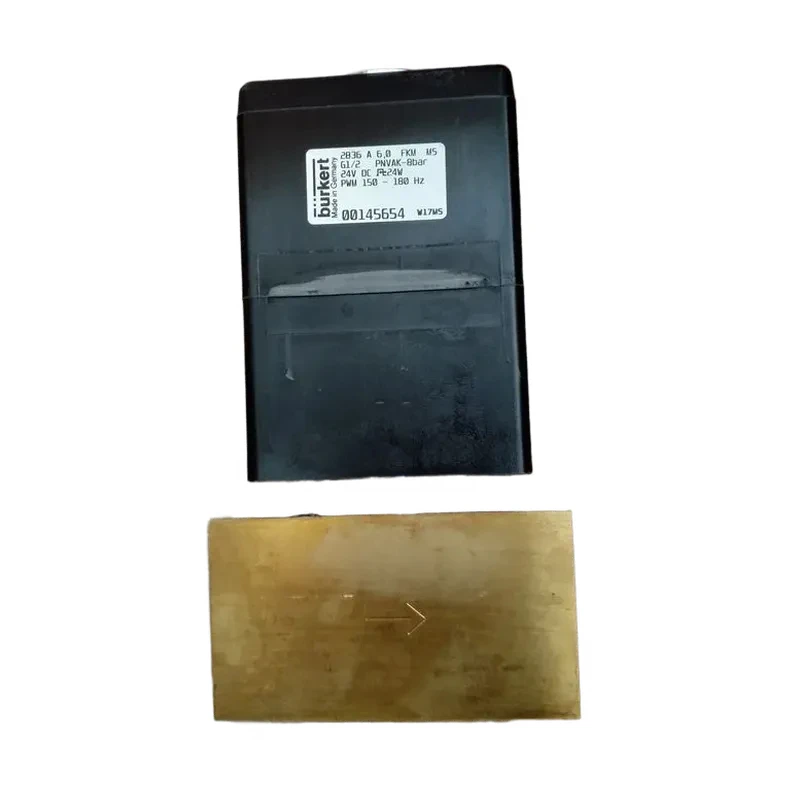

Burkert proportional solenoid valve
LEHIY item code: LH-0004
Quick buying check
This page helps you check Burkert proportional solenoid valve before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
I. Application Principle of Burkert Proportional Solenoid Valves: Burkert general-purpose solenoid valves and Burkert proportional valves are divided into electromagnetic and electric actuation types, providing customized solutions to meet your specific needs.

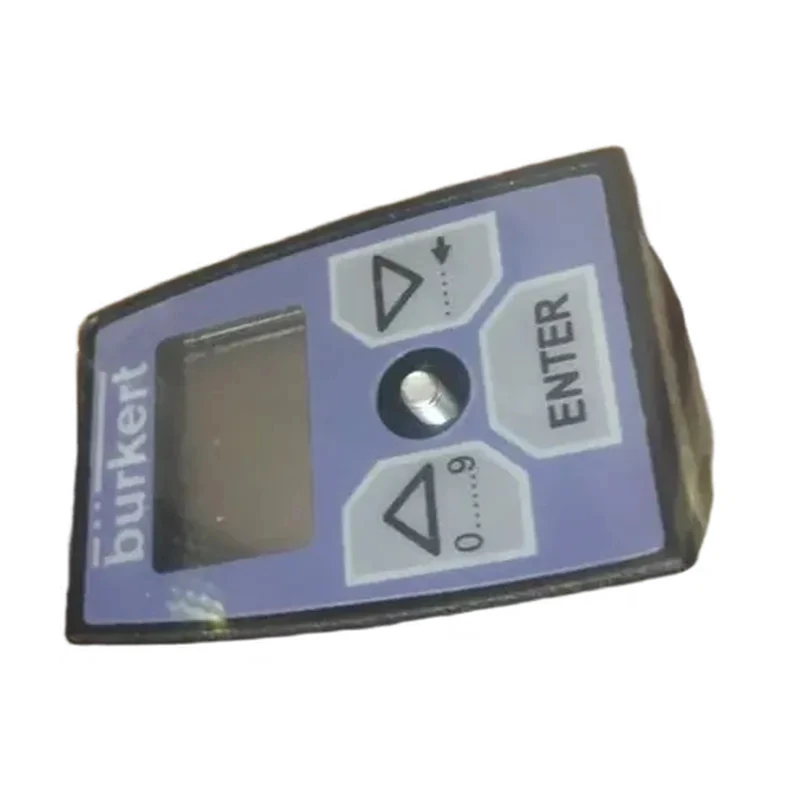

The Burkert 8605 controller, which is compatible with German Burkert proportional valves, can also be directly controlled by PWM signals in a PLC. However, while theoretically feasible, actual operation depends on the current value.
Therefore, it is recommended to use the original German Burkert 8605 controller for a more reliable and ideal match. Installation instructions are included with the product. There's no need to worry about wiring difficulties or debugging issues with the Burkert proportional valve.
II. Overview: Based on a solenoid valve that closes upon power failure due to spring action, the structure of the electromagnetic components in the solenoid valve is modified to balance the spring force with the electromagnetic force of the coil current.
The valve core stroke and/or valve opening are determined by the magnitude of the coil current and/or electromagnetic force. The valve opening is proportional to the electromagnetic force.
It is controlled by a pulse width modulation (PWM) signal, which causes the coil current to vary according to the set value. Since both the medium pressure and electromagnetic force overcome the spring force, a controller can be used to set the minimum and maximum flow rates under operating conditions.
German-made controllers can be used to implement both open-loop and closed-loop control loops. Open-loop loops do not require actual value feedback, while closed-loop control loops adjust based on the deviation between the setpoint and the actual value.
III. Main characteristics of positioning performance: ● Hysteresis: The maximum difference in output signal when the input signal changes from small to large and from large to small, expressed as a percentage of the maximum output signal.
● Response sensitivity: The minimum setpoint difference that causes a change in the output signal, expressed as a percentage of the maximum output signal. ● Repeatability: The maximum deviation of the output signal when the same input signal is applied repeatedly in the same direction.
● Control ratio: The ratio of the Kv value at the maximum and minimum opening (see calculation for Burkert proportional valves). Burkert valves can achieve a control ratio of up to 1:500.
IV. Selection Guide for Burkert Proportional Solenoid Valves: To ensure optimal control function, the proportional valve must be selected according to its intended use. The most important selection parameters are the Kv value and pressure range.
The valve's Kv value (unit: m/h) is measured with water as the medium, at 20°C, an inlet pressure of 1 bar, and an outlet pressure of 0 bar. For gases, it is usually expressed as the QNn value.
The QNn value is the flow rate (l/min) of air at 20°C, an inlet pressure of 6 bar, and a pressure drop of 1 bar across the valve.
value, the maximum pre-pressure at the valve inlet is also a major factor in valve selection (model and nominal diameter). The smaller the valve nominal diameter or the larger the coil, the higher the maximum switching pressure. The Kv value can be calculated using the following formula.
Based on the calculated Kv value and the actual pressure range, the valve model can be found in the selection guide.
V. range, fast response, compact structure, diameter DN0.8-4.0mm, explosion-proof coil optional.
Plain language sourcing guide for Burkert proportional solenoid valve
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Burkert | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
Burkert proportional solenoid valve
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
Burkert proportional solenoid valve verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
