Bürkert diaphragm valve parts, factory Bürkert diaphragm discs, good discounts
LEHIY item code: LH-0374
Quick buying check
This page helps you check Bürkert diaphragm valve parts, factory Bürkert diaphragm discs, good discounts before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
We are an authorized distributor of Bürkert diaphragm valve parts, offering genuine Bürkert diaphragm discs at competitive prices. We provide fast quotes, short delivery times, and FDA certification documents.
Suitable for sanitary applications in the biopharmaceutical and food industries, our Bürkert sanitary diaphragm valves are typically equipped with Bürkert double diaphragms made of EPDM/PTFE material. They are easy to install, temperature and corrosion resistant, have a long service life, and are easy to replace and maintain.
Popular sizes of Bürkert diaphragm discs include double diaphragms DN08, DN20, DN25, DN40, and DN50, with corresponding model numbers 677674, 677675, 677676, 677677, 584378, and. 584386. The distinguishing feature of Bürkert diaphragm valves is their Bürkert diaphragm.
The Bürkert diaphragm is a key component of this type of valve.
It ensures that various media do not mix, protecting the process from external environmental influences. of different options to select the diaphragm type best suited to your process.
Bürkert diaphragms are particularly suitable for various hygienic processes such as CIP (Clean-in-Place) and SIP (Sterilize-in-Place) and are available with FDA compliance statements. You can use Bürkert diaphragms and Bürkert diaphragm valves without any concerns.
Bürkert Diaphragm Design: The composition and structure of Bürkert diaphragm materials comply with relevant industry standards and FDA, USP, and other requirements, while also being as easy to process as possible, such as through vulcanization.
Bürkert Diaphragm Material: Bürkert diaphragms consist of two parts: PTFE and EPDM.
The elastic properties of EPDM protect the ordinary or reinforced PTFE that comes into direct contact with the media, extending the product's service life. Bürkert Diaphragm Connection Methods: Flexible button, threaded, snap-fit connection, Robolux.
Flexible button: Used to connect the Bürkert diaphragm to the actuator (Bürkert diaphragm valve pneumatic or manual); Threaded: Threaded pins are screwed into the actuator; Locking pin: Simply rotate 90° to secure the pin in the actuator, simple installation, less prone to errors, Bürkert double diaphragm valves.
mostly use locking pins; Robolux: A solution for Bürkert double-seat diaphragm valves with two interfaces.
Bürkert diaphragm ordering and selection table for DN15~DN100: Bürkert Single Diaphragm (EPDM abbreviation AB) order numbers: Bürkert Single Diaphragm DN8 688421 Bürkert Single Diaphragm DN15 688422 Bürkert Single Diaphragm DN20 688423 Bürkert Single Diaphragm DN25 688424 Bürkert Single Diaphragm DN40 688426.
Bürkert Single Diaphragm DN50 688427 Bürkert Single Diaphragm DN65 688428 Bürkert Single Diaphragm DN80 688429 Bürkert Single Diaphragm DN100 688430 Bürkert Double Diaphragm (PTFE+EPDM abbreviation EA) order numbers: Bürkert Double Diaphragm DN8 677674 Bürkert Double Diaphragm DN15 677675 Bürkert double diaphragm.
DN15 677676, Bürkert double diaphragm DN15 677676, Bürkert double diaphragm DN25 677677, Bürkert double diaphragm DN40 584378, Bürkert double diaphragm DN65 677681, Bürkert double diaphragm DN80 677682, Bürkert double diaphragm DN100 677683.

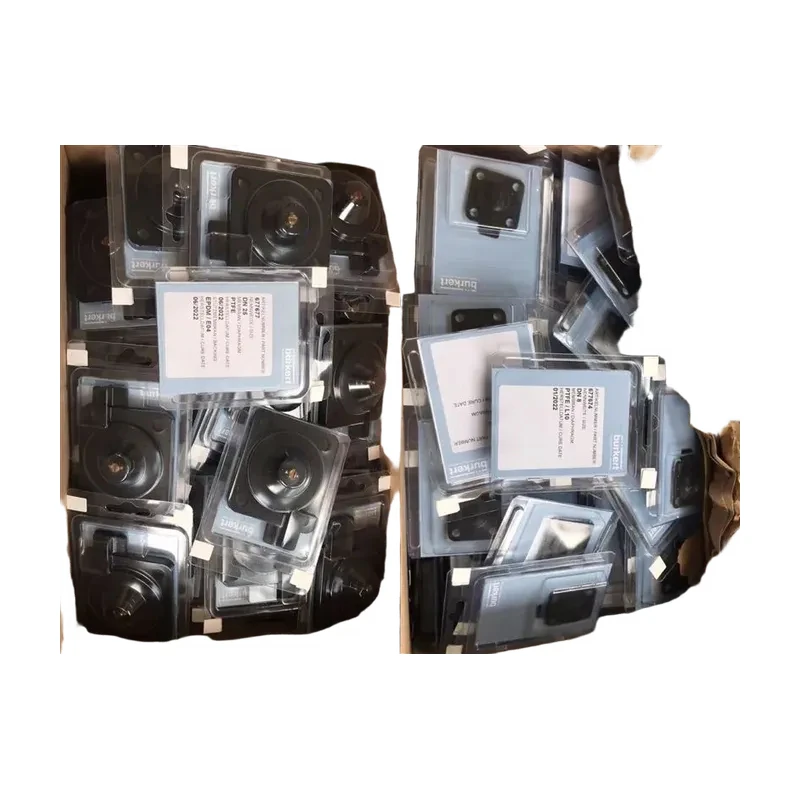

We are an authorized distributor of Bürkert diaphragm valve accessories, offering genuine Bürkert diaphragms at discounted prices. We recently received 200 Bürkert double and single diaphragms. Photos of the delivered goods are included.
Traceability of German Bürkert diaphragms is a fundamental principle of pharmaceutical production, ensuring consistency in materials and certifications. To ensure product safety, the production date and dimensions of Bürkert diaphragms are clearly marked.
This requirement is mandated Manufacturing by GMP (Good Practice) and ASME BPE (Good Manufacturing Practice) guidelines.
The lifespan of a Bürkert diaphragm depends on actual operating conditions and proper use. cycle.
German Bürkert diaphragm process certification is an essential step in ensuring process safety and high-quality closure. Bürkert diaphragm valves and diaphragm are tested and certified, ensuring customer confidence.
After completing the theoretical stage of simulated compression and fluid modeling, Bürkert diaphragm valves and diaphragm undergo extremely rigorous actual testing. The Bürkert multi-media testing platform provides various test conditions. The tested product products sequentially experiences cold water, hot water, steam, vacuum, and air pressure.
The test includes numerous cycles and is fully automated. This platform can test critical operating conditions such as CIP and SIP. It can meet the needs of special customers or specific operating conditions.
Plain language sourcing guide for Bürkert diaphragm valve parts, factory Bürkert diaphragm discs, good discounts
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Burkert | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
Bürkert diaphragm valve parts, factory Bürkert diaphragm discs, good discounts
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
Bürkert diaphragm valve parts, factory Bürkert diaphragm discs, good discounts verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
