German Böhler micro switch 00701515 is still available for order.
LEHIY item code: LH-0342
Quick buying check
This page helps you check German Böhler micro switch 00701515 is still available for order. before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
The SC02 1060 Burkert micro switch (00701515) is still available for order but will be discontinued soon. The next upgraded series is the Burkert valve controller 8697 series, with common models such as 00248833. An adapter, also called a valve linkage, is required; models 682264 and 682265 are available.
The appropriate adapter should be selected based on the size of the Burkert process valve actuator. We have a small stock of the above models. Please contact us if interested.

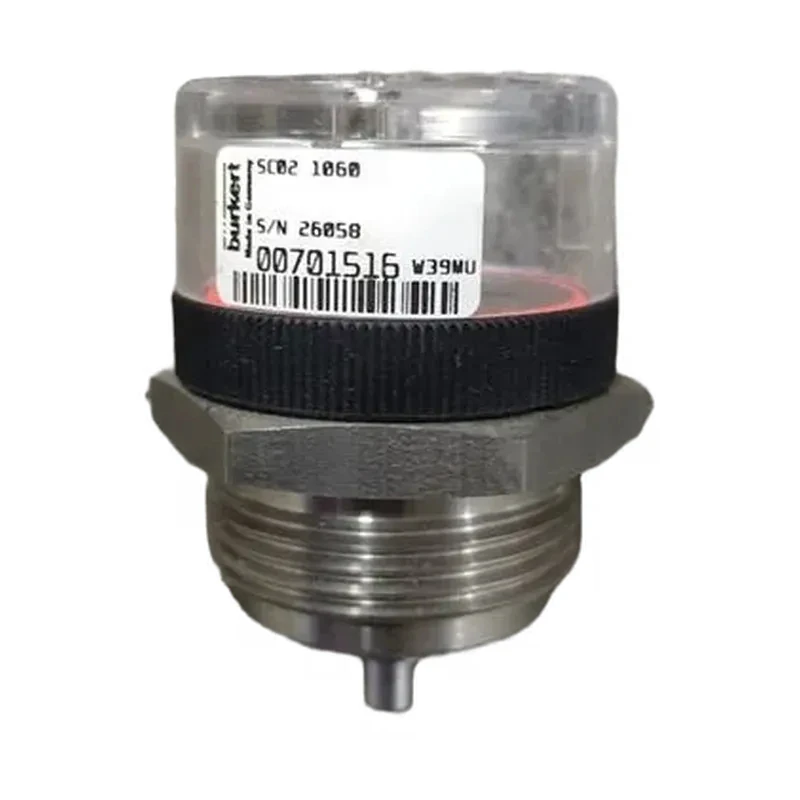

The Burkert SC02 1060 701515 701516 electrical position feedback switch, also called a switch position feedback device, is widely used in Burkert process valves (2XXX series).
Common Burkert micro switches include models 00701515 and 00701516.
701515 SC02 1060 Burkert Microswitch Features Typ SC02 Typ 2 1060 Material classification optical position indication with electric feedback signaller Special feature mount for actuator size D/E/F type 20XX The Burkert 1060 type inductive position switch NPN output 701515, Burkert electric position feedback, also called on/off position.
feedback, is widely used in Burkert process valves 2XXX.
SC02 701515 701516 Burkert Electric Position Feedback 1060 Type Features: - Easy installation, convertible or refurbishable - Self-adjusting release cam for "closed" position - LED field working status and position indication - Compact IP65 housing - Mechanical, inductive or Namur limit switch Burkert Electric Position Feedback 1062 Type Description:.
The 1060 type Burkert electric position feedback is mounted on the valve.
Burkert valve positions are remotely transmitted via electrical signals depending on the switch type: - Open, Closed (with one limit switch) or - Open and Closed (with two switches or dual limit switches). LEDs provide position indication (except for the inductive 2-wire system).
Burkert mechanical or inductive switches are housed in a compact, splash-proof housing.
Burkert position indicators can rotate 360° and can be easily mounted to the valve.
Burkert 1060 Inductive Position Switch NPN Output 701515 Technical Parameters: Material: Body/Cover PA6/PC Seal (Body/Cover) EPDM PG11 Cable Connector PA or PVDF Guide Brass or Stainless Steel Mandrel Brass or Stainless Steel Electrical Connection Terminal Strip with PG11 Cable Connector, Cable Diameter 5-7 mm, Maximum.
Cross-Section 1 mm² Ambient Temperature: -20 to +60 °C (Operating and Storage) Relative Humidity ≤ 85%, Non-condensing Protection Rating: IP65, when connector is installed and tightened, and the cover of the electronic module is tightened.
Certifications: Limit Switch conforms to VDE, IEC, UL, CSA, EExi (intrinsically safe) Inductive Limit Switch conforms to II 2 GD EEx ia II C T6, T5 or T4-T1 Installation Method: Installed on piston actuator, actuator size Ø 40-125 mm Installation Orientation: Available as needed Mechanical Limit Switch (Limit.
Switch) Quantity of Limit Switches: 1 or 2 Output form switching contact (open and/or closed), silver or gold state open, closed, or open/closed; power control indicator (LED): green, red, orange, and electrical position feedback; power supply 12-48 V DC/AC 110/250 V DC/AC; power consumption.
(limit switch): < 35 mA (48 V DC) < 8 mA (220 V AC); load current (limit switch): see table on next page; voltage drop Max.
1 V DC; inductive limit switch, 3-wire technology; number of limit switches: 1 or 2; output form normally open contact (PNP); state open, closed, or open/closed; power control indicator (LED): green, red, orange; electrical feedback; power supply 10-30 V DC; SC02 1060 German Burkert micro switch 00701515.
is still available for order but will be discontinued soon; the replacement model is Burkert process controller 8697 model 00248833.
Brand Introduction Chinese Name: Burkert Origin: Germany Full Brand Name: Christian Bürkert GmbH & Co. KG Main Products: BURKERT solenoid valves, BURKERT pneumatic valves, BURKERT angle seat valves, BURKERT sensors, BURKERT transmitters, BURKERT controllers, BURKERT flow meters, BURKERT proportional valves, BURKERT control valves.
BURKERT Products: Transmitters, angle seat valves, pneumatic valves, shift valves, bypass valves, solenoid valves, control valves, controllers, sensors, diaphragm pumps, cylinders, butterfly valves, ball valves, angle seat valves, check valves, filters, sensors, controllers. Application Areas: Water treatment, gas control, sanitary process and micro-flow systems.
BURKERT Company Profile: Burkert is a German brand specializing in process products such as solenoid valves, butterfly valves, ball valves, angle seat valves, check valves, filters, pneumatic actuators, sensors, and controllers. Currently, The Whole has 5 central production sites, 35 subsidiaries, and over 3,000 employees (as of 2013).
It also has 4 R&D centers.
Plain language sourcing guide for German Böhler micro switch 00701515 is still available for order.
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
