Burkert 8056 flow meter, SE56 transmitter, S056 sensor
LEHIY item code: LH-0341
Quick buying check
This page helps you check Burkert 8056 flow meter, SE56 transmitter, S056 sensor before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.

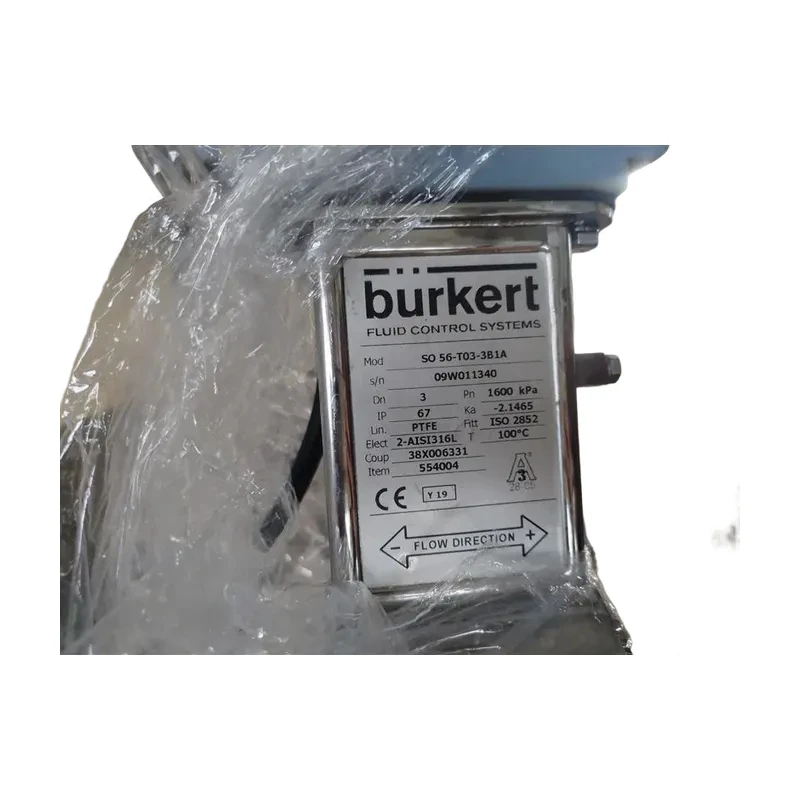

We are an authorized distributor of Burkert 8056 flow meters, SE56 transmitters, S056 sensors (562444+554004). The Burkert S056-T03-3B1A flow meter is a type of 8056 magnetic induction flow meter with a sanitary process interface.
The 8056 Burkert flow meter consists of a Burkert S056 sensor (compact or The Burkert S056 sensor and Burkert SE56 transmitter combination.
Burkert 8056 flowmeter characteristics: - Continuous measurement or metering - Hygienic, 3A certified - The Burkert S056 sensor is suitable for food, beverage, or pharmaceutical applications - The Burkert 8056 flowmeter is an agent for flow measurement of nominal diameters DN 03–DN 100.
Burkert 8056 flowmeter SE56 transmitter S056 sensor technical parameters: Product attributes: Materials: Non-liquid contact parts: Burkert housing: Stainless steel 304/1.4301; Liquid contact parts: Electrodes: Stainless steel 316L; PTFE lining; Seal: FKM (EPDM compliant with FDA requirements). Detailed dimensional information can be found in Chapter
- See "Dimensions" on page
- Pipe diameter dn03…dn100. Detailed dimensional information for the Burkert sensor 8056 flowmeter measurement principle is found in Chapter "5.1". See "Measurement Principle" on page
- The 8056 Burkert flow meter has a measurement range from 0…10 l/h to 0…28 m3/hour. For detailed information, please refer to Chapter 6.4. Sensor model S056 is on page
- Performance data under reference conditions: water temperature = 20°C, ambient temperature = 25°C, constant flow rate during testing, liquid velocity > 1 m/s. Measurement deviation when used with the Burkert SE56 display: • Standard compact version: ±0.2% of reading • In standard remote version: ±0.2% of reading • In basic compact version: ±0.8% of reading • In compact version without display: ±0.2% of reading. Repeatability when used with the Burkert SE56 display: • Standard compact version: ±0.1% • Standard remote version: ±0.1% • Basic miniaturized version: ±0.2% • Simple version without display: ±0.1% Vacuum resistance 200 mbar (2.9 PSI) Media data Fluid temperature when used with the Burkert SE56 transmitter: • Standard compact version: -20…+100°C (-4…+212°F) • In standard remote version: -20…+130℃ (-4…+266℃F) • Basic compact version: -10…+100℃ (+14…+212℃F) • In compact version without display: -20…+100℃ (-4…+212℃F), +130℃ (+266°F) 1 hour fluid pressure low conductivity 5×S/cm (20×S/cm for demineralized water) Process/port connection and communication process connection DIN 11851, clamp ISO 2852 or bs4825 (SMS 1146 (from dn10) available upon request) 2 cable connectors PG9 (for remote version of sensor) Burkert flowmeter type 8056/S056 approved and certified according to IEC / protection level EN 60529 If used with Burkert SE56 display: • Standard compact type: IP65 and IP67 • In standard remote version: --IP65 - IP68 (Burkert sensor junction box filled with resin) • Basic compact version: IP65 • Simple version without display: IP65 and IP67 Applicable standards for verification of compliance with EU directives, which can be verified by an EU type certificate and/or EU declaration of conformity (if applicable). Pressure Equipment Directive This device complies with the requirements of the Pressure Equipment Directive 2014/68/ EU. Class II installations are applicable to Group 1 and Group 2 fluids under the following conditions: • Maximum permissible pressure (PS) ≤ 40 bar • Low/high temperature (TS): -10/+130°C • Group 2 liquids within the following limits: - PN 40 for dn40…dn250 • For Group 1 liquids with high vapor pressure, the permissible temperature shall not exceed 0.5 bar (g) within the following limits: For diameters PSxDN > 2000 for dn25 and above Burkert 8056 flow meter environment and installation Ambient temperature when used with SE56 display: • Standard compact version: -20…+60℃ (-4…+140℃F) (operation and storage) • Standard remote version: -20…+60℃ (-4…+140℃F) (operation and storage) • Basic compact version: -10…+50℃ (+14…+122℃F) (operation) -20…+50℃ (-4…+122℃F) (storage) • Compact version without display: -20…+40℃ (-4…+104℃F) (operation and storage) Relative humidity ≤90%, non-condensing Altitude up to 2000 meters Continuous operating conditions Equipment mobility Fixed installation Application scope: Indoor and outdoor (protected against electromagnetic interference, UV radiation) Resistant to climatic conditions Installation category II according to UL/EN 61010-1 According to UL/EN 61010-1, pollution level 2
Plain language sourcing guide for Burkert 8056 flow meter, SE56 transmitter, S056 sensor
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Burkert | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
Burkert 8056 flow meter, SE56 transmitter, S056 sensor
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
Burkert 8056 flow meter, SE56 transmitter, S056 sensor verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
