Burkert diaphragm valve, diaphragm sheet, Burkert composite diaphragm pad, dual membrane EA EU
LEHIY item code: LH-0335
Quick buying check
This page helps you check Burkert diaphragm valve, diaphragm sheet, Burkert composite diaphragm pad, dual membrane EA EU before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Burkert diaphragm valve diaphragms, Burkert composite diaphragm pads, dual diaphragm, EA EU sanitary grade, FDA certified! What is the material of Burkert diaphragm valve dual diaphragms? What is the definition of Burkert diaphragm valve dual diaphragms? Burkert diaphragm valve dual diaphragms are PTFE/EPDM integrated diaphragms.
Burkert dual diaphragms and Burkert single diaphragms used in German Burkert diaphragm valves have a good reputation among imported brands and are also a brand with a high repurchase rate among imported diaphragms. *Manufacturer's quality and after-sales guarantee, and Burkert factory-signed discount prices.
DN20 679542; DN32 679544; DN40 679545.
Burkert diaphragm valve dual diaphragms are suitable for industrial and sanitary applications. Burkert diaphragm valves are widely used in equipment such as biopharmaceuticals and steam sterilization. Burkert's industrial and sanitary dual diaphragm pumps. Burkert sanitary diaphragm valves use PTFE/EPDM composite diaphragms.
Burkert diaphragm valves are available with diaphragm gaskets ranging from DN8 to DN100. Burkert dual diaphragm models include: 677673, 677674, 677675, 677676, 677678, 677679, 677680, and 6776883.
Burkert diaphragm valves consist of a pneumatic actuator, diaphragm, and cast stainless steel two-way valve body. The standard supplied actuator is made of PA polyamide, offering optimized flow characteristics, high flow rate, and suitability for various contaminated, viscos, or dirty media.
Technical Parameters: Inner Hole DN15-20; Valve Body Material: Cast Stainless Steel 316L/1.4435; Actuator Material: PA Polyamide; Pilot Air Source Port: Stainless Steel 1.4305; Sealing Material: EPDM, FLM, EPDM Lined with PTFE; Media: Neutral gases and liquids, sterile, corrosive, or abrasive media; Viscosity: High to viscous media;.
Temperature: EPDM -5—130°C, short-term up to 150°C, suitable for steam sterilization; FKM, EPDM Lined with PTFE -5-- 130°C; Ambient Temperature: -5-- 60°C; Control Media: Neutral gases, air; Installation: Can be installed as needed, with actuator facing upwards.
2031GP Two-Position Two-Way Diaphragm Valve, Cold-Formed Stainless Steel Valve Body, Pneumatic DN15-100; Cold-Formed Stainless Steel Tube Valve Body, Multiple Connection Methods, Optimized Flow Characteristics; Suitable for Corrosive, Viscous, or Contaminated Media; Suitable for Various Applications, High Temperature 130°C.
Technical parameters: Inner bore: DN15-100; Valve body material: 1.4404 stainless steel. Sanitary and non-sanitary grades are available upon request. Non-sanitary grade diaphragm valves have an internal polishing precision of 1.6µm, making them less expensive than sanitary grade pneumatic diaphragm valves.
Baode pneumatic diaphragm valves 2031 with an internal polishing precision of ≤0.8µm are FDA certified. Diaphragm valve 2031 offers three connection methods: threaded, welded, and clamped. Flange connections are also available if required.

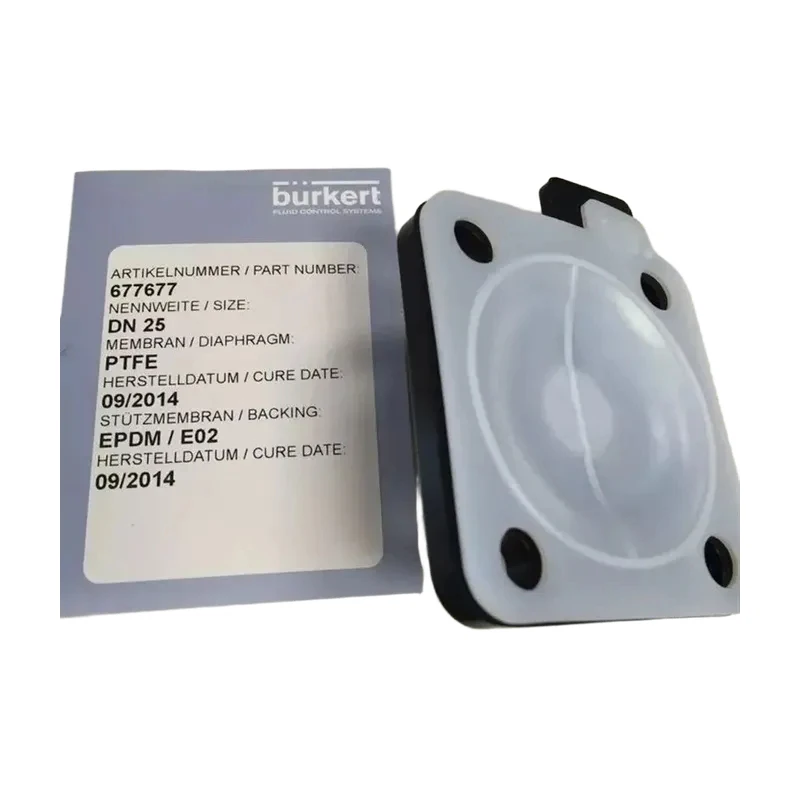

BURKERT Dual Diaphragm Material: The liquid-immersed end is made of FDA-compliant PTFE material, and the air end is made of FDA-compliant EPDM material. Operating Temperature Range: 14ºF to 180ºF (-10ºC to 82ºC).
BURKERT Diaphragm Safety: Compliant with FDA 21 CFR 177.1550 (PTFE) and FDA 21 CFR 177.2600 (EPDM) standards.
BURKERT Diaphragm Valve Definition: A BURKERT diaphragm valve is a compression device in which a flexible diaphragm or a combination of diaphragms is installed within the valve body and bonnet, and its closing element is a compression device connected to the diaphragm.
The valve seat can be weir-shaped or a straight-through flow channel wall.
BURKERT diaphragm valve diaphragm pads, dual diaphragm, EA, EU. devices, switches, and counters for flow, pressure, differential, level, and constant-temperature volumetric thermal compensation.
Advantages of BURKERT diaphragm valves: Diaphragm valves offer the advantage of isolating the operating mechanism from the media passage, ensuring the purity of the working medium and preventing the possibility of media in the pipeline impacting the operating mechanism's working parts.
Applications of BURKERT diaphragm valves: Industries requiring BURKERT diaphragm valves include biopharmaceuticals, brewing, dairy, beverage, steam production, food processing, disinfection equipment, water supply equipment, and water distribution equipment in contact with drinking water.
As the heart of the valve, the diaphragm's hygiene quality is strictly monitored by health authorities. Applications of BURKERT diaphragm valves: BURKERT diaphragm valves are a special type of shut-off valve.
Their opening and closing element is a diaphragm made of soft material, which separates the valve body cavity from the valve cover cavity.
Due to limitations in valve body lining and diaphragm manufacturing processes, manufacturing larger valve body liners and larger diaphragms is difficult. suitable for low-pressure and low-temperature applications, generally not exceeding 180℃.
Because of their good corrosion resistance, diaphragm valves are generally used in devices and pipelines handling corrosive media.
The applicable media and operating temperature of Burkert diaphragm valves are limited by the valve body lining and diaphragm materials. 677681 Diaphragm Plate Burkert Diaphragm Valve Double Diaphragm DN65 PTFE/EPDM
Plain language sourcing guide for Burkert diaphragm valve, diaphragm sheet, Burkert composite diaphragm pad, dual membrane EA EU
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
