Burkert Coriolis Mass Flow Sensor MFM/MFC Model 8756
LEHIY item code: LH-0325
Quick buying check
This page helps you check Burkert Coriolis Mass Flow Sensor MFM/MFC Model 8756 before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
The Burkert 8756 Coriolis Mass Flow Sensor MFM/MFC is a German product introduction, measurement principle, and advantage overview. Benefiting from the Coriolis flow measurement principle, the 8756 MFM/MFC is suitable for fluid measurement and control in various industries. Let's take a closer look.
The German Burkert 8756 Coriolis Mass Flow Sensor MFC/MFM is a compact and robust multi-parameter control instrument. Thanks to its wide measurement/adjustment range and highly stable zero point, it can reliably and repeatably measure, adjust, or meter even very small fluid volumes.
Its core component is a Burkert Coriolis force sensor with a pipe diameter of DN1.
The Burkert 8756 mass flow meter and Burkert mass flow controller are available in the following configurations: Burkert Flow Meter (MFM) Burkert Flow Controller (MFC) With Modular Actuator Interface* Integrated Proportional Valve (New) Integrated Miniature Gear Pump Burkert Batch Metering Equipment (New) Modular Actuator Interface* Integrated Solenoid Valve* The pressure.
range for the MFM and MFC versions with modular actuators is up to 100 bar.
(New) The German Burkert Coriolis flow meter, Burkert 8756 MFC/MFM, uses the Coriolis force measurement principle. Unlike the volumetric flow measurement method of the Burkert Liquid Flow Controller (LFC), the MFM/MFC directly measures mass flow using a Burkert Coriolis force sensor.
How does the Coriolis force measurement principle work?

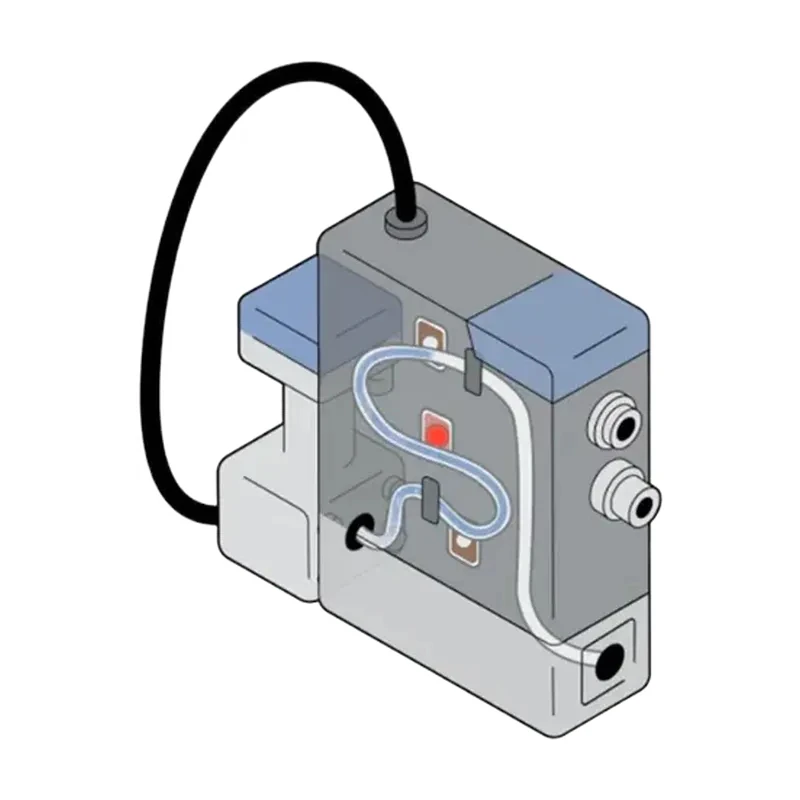

The measuring tube vibrates through an excitation coil. If fluid flows through the high-frequency vibrating measuring tube, the Coriolis force acts on the medium, causing a change in the pipe vibration.
This change is called phase displacement, representing the difference in pipe deflection between the beginning and end of the pipe.
Phase displacement depends on and is proportional to the mass flow rate of the medium. Using Burkert sensors, pipe vibrations are continuously recorded and electronically evaluated.
The advantages of our Coriolis fluid measurement devices are based on the ingenious design and high excitation frequency of the Burkert sensor, making the device vibration-resistant.
Furthermore, there are no moving parts in the medium. Therefore, the Burkert 8756 Coriolis flow meter is particularly resistant to media, even those with high density and viscosity up to 200 mPas. Moreover, regardless of the application, the German Burkert sensor can be calibrated with water.
Due to these characteristics, the Burkert 8756 Coriolis mass flow sensor can be used in numerous industries, such as pharmaceuticals and biotechnology, food and luxury goods, thin film coatings, fuel cells, electrolysis units and batteries, or chemical processes.
Advantages of using the Burkert 8756 Coriolis mass flow meter: ✓ Direct measurement of mass, density, and temperature ✓ Indirect measurement (calculation) of volume and concentration ✓ Medium-independent device calibration ✓ Long-term highly stable zero point ✓ Wide measurement range ✓ No inlet/outlet section required.
The Burkert 8756 Coriolis mass flow sensor MFM/MFC has batch functionality. In addition to the version for continuous flow measurement/control, the 8756 is also available as a variant with an integrated batch controller.
High accuracy and reliable processes are crucial when metering and filling fluids to prevent quality fluctuations.
Thanks to the integrated batch controller, the Burkert 8756 Coriolis mass flow sensor ensures stable metering unaffected by temperature or pressure fluctuations. Furthermore, the German Burkert mass flow controller/Burkert mass flow meter provides metering accuracy of ~0.3%.
Additionally, each individual dose is recorded, ensuring high controllability and repeatability in the process. The Burkert Mass Flow Controller (MFC)/Mass Flow Meter (MFM) Type 8756 for liquids offers flow measurement/control up to 25 kg/h with very high accuracy and a very wide measurement range.
It boasts high long-term stability, requires no zero-point adjustment, and the materials in contact with the medium exhibit excellent chemical resistance. Suitable for a wide range of liquids.
Plain language sourcing guide for Burkert Coriolis Mass Flow Sensor MFM/MFC Model 8756
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Burkert | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
Burkert Coriolis Mass Flow Sensor MFM/MFC Model 8756
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
Burkert Coriolis Mass Flow Sensor MFM/MFC Model 8756 verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
