Burkert flow sensors and turbine flow meters
LEHIY item code: LH-0317
Quick buying check
This page helps you check Burkert flow sensors and turbine flow meters before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
We are an authorized distributor of Burkert 8012 turbine flow meters (model 556055). The Burkert 8012 turbine flow meter is an electromagnetic version designed for neutral, slightly corrosive, solid-containing liquids. A version is also available for IR-transparent liquids in optical measurements.
The 8012 Burkert flow meter consists of accessory S012 and electronic module SE12. Bürkert's assembly system simplifies installation for all accessories suitable for DN06-DN65. It can also be integrated into customer-customized valve systems.
With a fundamentally different electronic module type, the 8012 Burkert turbine six-stage flow sensor features a pulse output to generate a flow proportional frequency or for use as an output switch, and also includes a 4…20 mA current output signal.

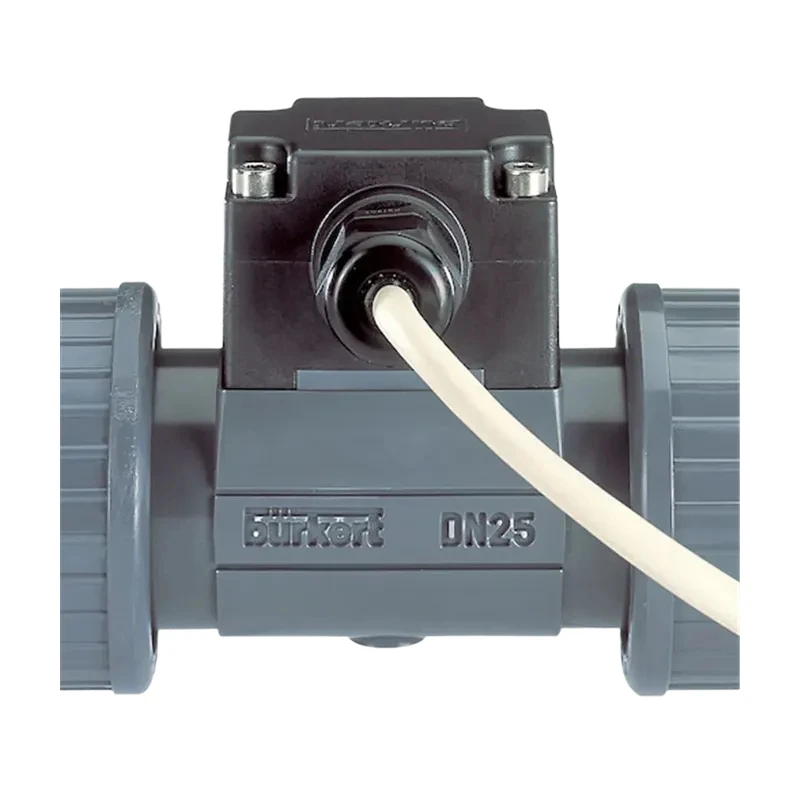

The Burkert 8012 flow sensor with impeller is available in two designs: a magnetic design suitable for neutral and slightly corrosive liquids without solids, and an optical design suitable for IR-transparent liquids. The sensor consists of a connector (model S012) and an electronics module (model SE12).
The connector system, designed by Bürkert, ensures easy installation of the Burkert sensor in all pipe sizes from DN06 to DN50. It can also be integrated into customer-specific modular systems.
Depending on the electronics module configuration, the Burkert sensor features a pulse output and a 4-20 mA current output; the pulse output can generate a frequency proportional to the flow rate or be used as a switching output.
Burkert 8012 series flow meters: 556003, 556004, 556005, 556006, 556012, 556013, 556014, 556015, 556018, 556019, 556020, 556021, 556024, 556025, 556026, 556027, 556030, 556031, 556032, 556033, 556036, 556037, 556038, 556039, 556045, 556046, 556047, 556048, 556054, 556055, 556056, 556057, 556061 556062 556063 556064 556068 556069 556070 556071 556074 556075 556076 556077 556080.
556081 556082 556083 556088 556089 556090 556091 556094 556095 556096 556097 Agent for Burkert Flow Sensors, Burkert Turbine Flow Meter Model 8012 556055 Burkert Turbine Flow Meter Model 8012 Features: Low cost, integrated into piping systems, no additional piping required.
Optical or electromagnetic measurement principle. Output: 1 analog signal output 4...20mA and/or 1 transistor output (frequency or switch). Settable output (via PC USB interface). Burkert Turbine Flow Meter Selection: Proper selection of the German Burkert turbine flow meter (B) ensures better performance.
The type of Burkert turbine flow meter to choose should be determined based on the physical and chemical properties of the fluid being measured.
This ensures that the Burkert turbine flow meter's diameter, flow range, lining material, electrode material, and output current are suitable for the properties of the fluid and the requirements of flow measurement.
- Precision Function Check: The accuracy class and functions of the instrument should be selected based on measurement requirements and application to ensure cost-effectiveness. For example, for trade settlement, product handover, and energy metering, a higher accuracy class, such as 1.0, 0.5, or higher, should be chosen. For process control, different accuracy classes should be selected according to control requirements. For applications where only process flow is measured without precise control and metering, a lower accuracy class, such as 1.5, 2.5, or even 4.0, can be selected. In this case, the inexpensive Burkert insertion turbine flow meter can be used.
- Measurable Media: Measuring medium velocity, instrument range, and diameter. When measuring general media, the full-scale flow rate of the Burkert turbine flow meter can measure medium velocities from 0.5 to 12 m/s. The selection range is relatively wide. The instrument specification (diameter) does not necessarily have to be the same as the process pipeline. It should be determined based on whether the measured flow rate is within the velocity range. guaranteed at this velocity, the instrument diameter needs to be reduced to increase the internal flow velocity and obtain satisfactory measurement results. For Burkert turbine flow meter installation, to ensure the accuracy of the Burkert turbine flow meter, the correct selection of the installation location and method is essential. Requirements for straight pipe sections: The Burkert flow meter must be installed horizontally on the pipeline (pipe inclination within 5 degrees). During installation, the flow meter axis should be concentric with the pipeline axis, and the flow direction should be consistent. For German Burkert flow meters, the upstream pipeline length should have a straight pipe section of equal diameter not less than 2D. If the installation site allows, it is recommended that the upstream straight pipe section be 20D or less, and 5D at the maximum. Requirements for piping: The inner diameter of the upstream and downstream piping at the installation point of the German Burkert flow meter should be alternating with the inner diameter of the flow meter. Burkert flowmeter, shut-off valves (check valves) should be installed before and after the Burkert flowmeter, and a bypass pipe should also be provided. The flow control valve should be installed downstream of the Burkert flowmeter. When the flowmeter is in use, the upstream shut-off valve must be fully open to avoid unstable flow in the upstream section. Requirements for external environment: The Burkert flowmeter is best installed indoors. If it must be installed outdoors, it is essential to take measures to protect it from rain, lightning, and other hazards to avoid affecting its service life. Requirements for impurities in the medium: To ensure the service life of the Burkert flowmeter, a filter should be installed before the straight section of the Burkert flowmeter. Installation Location: Burkert flow meters should be installed in locations easily accessible for maintenance, free from interference from high-voltage electrical systems and heat radiation. Regarding welding requirements, the user must provide a separate pair of standard flanges to weld onto the upstream and downstream pipes;
- welding with the Burkert flow meter directly attached is not permitted. Before installing the Burkert flow meter, thoroughly remove welding slag and other contaminants from the pipes. It is best to use a pipe of equal diameter (or a bypass pipe) to purge the pipes to ensure the flow meter is not damaged during use. When installing a Burkert flow meter, the sealing gasket between the flanges must not be recessed into the pipe. Burkert Flow Meter Grounding Requirements: The flow meter must be reliably grounded and cannot share a ground wire with a high-voltage electrical system.
Plain language sourcing guide for Burkert flow sensors and turbine flow meters
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Burkert | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
Burkert flow sensors and turbine flow meters
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
Burkert flow sensors and turbine flow meters verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
