Burkert 8045 electromagnetic flow transmitter (Germany)
LEHIY item code: LH-0316
Quick buying check
This page helps you check Burkert 8045 electromagnetic flow transmitter (Germany) before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.

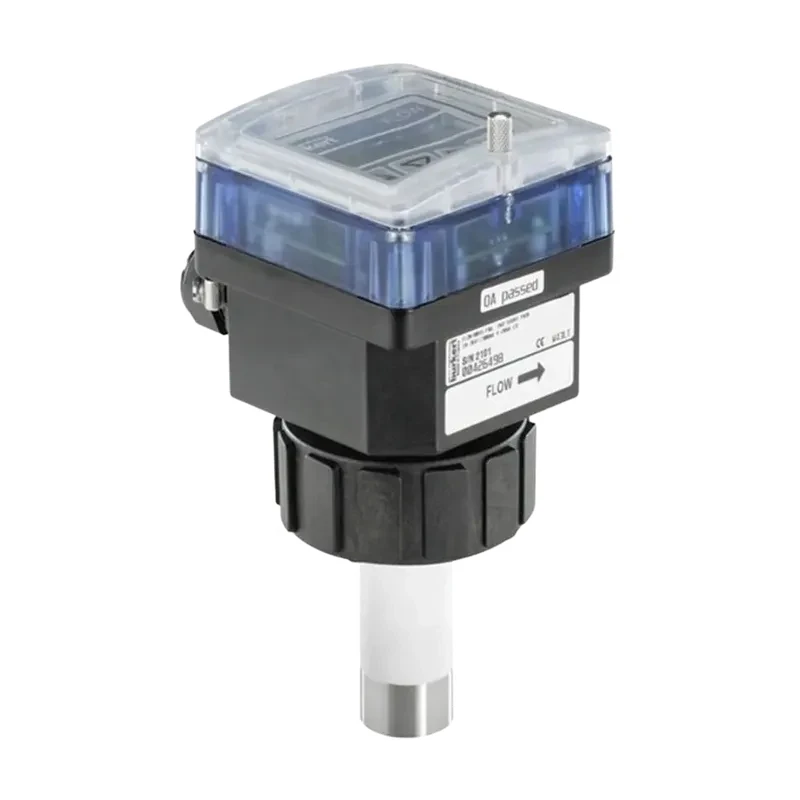

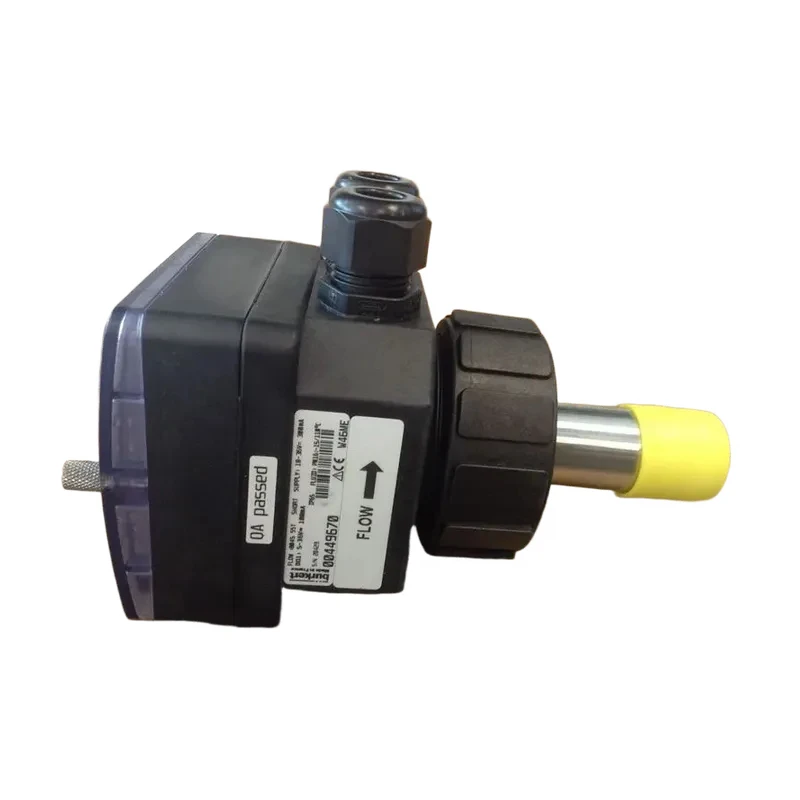

Description of the Burkert 8045 Electromagnetic Flow Transmitter (Germany): The Burkert 8045 electromagnetic flow meter consists of an electronic module with a backlit display, operating buttons, and a PVDF or stainless steel sensor.
It is suitable for neutral and mildly corrosive liquids with a conductivity greater than 20 µS/cm, ranging from DN06 to DN400.
It features a 4-20 mA output port and a digital output port (pulse output by default). Some versions offer two relay output ports and one digital input port. Flow rate is calculated by two independent accumulators.
Available interfaces include: - G2" interface for PVDF sensors - G2" or clamp interface for stainless steel sensors.
The stainless steel sensor version is suitable for high-pressure (PN16) and high-temperature applications (110°C). The C22 alloy electrode version is suitable for corrosive liquids (chemicals) and seawater applications.
Features: Burkert sensor with no moving parts; displays both flow rate and total volume; analog output signal; online cleaning (CIP); FDA-approved C22 alloy electrode version.
Product Introduction: The Burkert 8045 electromagnetic flow transmitter is suitable for pipelines from DN 06 to DN 400, for liquids with a conductivity greater than 20 μS/cm.
This Burkert transmitter features a display and a keypad, with 4-20mA, relay, and pulse outputs. A stainless steel probe type is available for high-pressure (PN16) and high-temperature (110°C) media.
The Burkert 8045 electromagnetic flowmeter can be used with the following products: Burkert S020 insertion connector, S020 welded connector; Burkert 2030 CLASSIC diaphragm valve, pneumatic 2-position 2-way valve with plastic body; Burkert 2301 pneumatically operated 2-way shut-off control valve, ELEMENT series with top controller; Burkert 8802.
ELEMENT continuous control valve system overview; Burkert 8644 valve island with I/O module, PLC/remote process drive control system AirLINE.
Burkert 8045 electromagnetic flow transmitter technical parameters: Measurement range 0.02 - 4500 m/h; Flow velocity 0.2 - 10 m/s; Accuracy: Teach-In correction; Standard K-coefficient correction (applicable to flow velocities 1 - 10 m/s): ≤±2% of reading; ≤±4% of reading.
Linearity ≤ ±(0.1% of full scale + 1% of reading) Repeatability ≤ ±0.25% of reading Electrical connection cable connector M20x1.5 Power cable shield, maximum cross-section: 1.5 mm2 Protection rating IP65, relative humidity ≤80% when cable connector is connected, no condensation Maximum altitude 2000 m Medium.
temperature PVDF sensor Stainless steel sensor 0-80°C -15 to 110°C Ambient temperature -10 to 60°C (operating) -20 to 60°C (storage) Maximum medium pressure PVDF sensor Stainless steel sensor See pressure-temperature diagram on page 419 PN10 (plastic connector)-PN16 (metal connector) Minimum conductivity 20 u.
S/cm Connector material PVC, PP, PVDF, brass, stainless steel Other materials Housing, cover, nut PVDF sensor Stainless steel sensor Front panel sheet/protective cover Screw/seal/cable plug Material of wetted parts Sensor probe Electrode/Washer Grounding Ring (PVDF Sensor) Electrode Holder (Stainless Steel Sensor) PC (Shell Reinforced Glass.
Fiber) PPA (Reinforced Glass Fiber) Polyester/PSU Stainless Steel/EPDM/PA PVDF or Stainless Steel 1.4404/316L Stainless Steel 1.4404/316L / FKM (FDA Certified) Stainless Steel 1.4404/316L PEEK (FDA Certified) Inner Hole DN 06 - DN 400 (See S020 type connector on pages 418-425).
Electrical Parameters Operating Power Supply 18-36 V DC, filtered and rectified (3-wire) Current Consumption with Sensor ≤300 mA Output Pulse Relay (Programmable) (Optional) Process Value NPN and PNP, open collector, current isolation, up to 36VDC, up to 100mA Two normally open relays for short-circuit and reverse protection,.
programmable, 3A, 250VAC or 3A, 30VDC (resistive load), maximum breaking power: 750 VA (resistive load), hysteresis mode 4-20mA, maximum loop impedance: 1300Ω (30VDC), 1000Ω (24VDC), 700Ω (18VDC).
Ordering table for Burkert 8045 electromagnetic flow transmitter (Germany): Power output relay, housing material, gasket material, sensor type, electrical connection. Order number: 18-36VDC 4-20mA, frequency: None.
PC FKM short, PVDF 2 cable connectors 426498; Long, PVDF 2 cable connectors 426499; 2 PC FKM short, PVDF 2 cable connectors 426506; Long, PVDF 2 cable connectors 426507; No PPA FKM.
Short, stainless steel 2-cable connector 449670; Long, stainless steel 2-cable connector 449672; 2 PPA FKM; Burkert 8045 electromagnetic flow transmitter includes the 8045 transmitter and S020 insert connectors (pages 418-425).
Standard supply is FKM sealed; the standard supply of the transmitter also includes an accessory package with part number 558 102 (see attachment).
Please order the appropriate transmitter and insert connectors separately! Please note! Burkert assumes no responsibility for incorrect selection. Please contact your local Burkert branch as early as possible during the design phase. More options are available upon request. Electrode and ring material: Alloy C22 (for PVDF sensors only).
Burkert 8045 electromagnetic flow transmitter ordering list: 8045 electromagnetic flow transmitter *316 bracket, short electrode, display and pulse output + 1-channel accumulation, 18~36VDC, 4~20mA output, one end soldered, one end snap-fit. Part number 564797. Type 8045.
Flow rate | 18.0 V - 36 V | -15.00 °C - 110.00 °C | Magnetic inductive | Transistor | FKM (fluororubber) | Stainless steel.
8045 electromagnetic flow transmitter *316 bracket, short electrode, display and pulse output + 1-channel accumulation, 18~36VDC, 4~20mA output with relay, one end soldered, one end snap-fit, with DI. Part number. 564798. Type 8045.
Flow rate | 18.0 V - 36 V | -15.00 °C - 110.00 °C | Magnetic inductive | Transistor | FKM (fluororubber) | Stainless steel 8045 Electromagnetic Flow Transmitter *PVDF bracket, short electrode, FKM seal, display and pulse output + 1-channel accumulation, 4~20mA output, 18~36VDC, 4~20mA output Part No.
563883 Type 8045 Flow rate | 18.0 V - 36 V | 0.00 °C - 80.00 °C | Magnetic inductive | Transistor | FKM (fluororubber) | PVDF (Polyvinylidene fluoride) | FKM (Fluor rubber) 8045 Electromagnetic Flow Transmitter *PVDF Bracket Short Electrode, FKM Sealed, Display and Pulse Output.
+1 Channel Accumulator, 18~36VDC, 4~20mA Output Part No.
558675 Type 8045 Flow rate | 18.0 V - 36 V | 0.00 °C - 80.00 °C | Magnetic inductive | Transistor | FKM (fluororubber) | PVDF (Polyvinylidene fluoride) | FKM (Fluor rubber) 8045 Electromagnetic Flow Transmitter *316 Bracket Short Electrode, FKM Sealed, Display and Pulse Output.
+1 Channel Accumulator, 4~20mA Output, 18~36VDC, Pulse Output Part No.
559367 Type 8045 Flow rate | 18.0 V - 36 V | -15.00 °C - 110.00 °C | Magnetic inductive | Transistor | FKM (fluororubber) | Stainless steel | No.
449670 Type 8045 Flow rate | 18.0 V - 36 V | -15.00 °C - 110.00 °C | Magnetic inductive | Transistor | FKM (fluororubber) | Stainless steel | and pulse output +1 channel accumulation, 18~36VDC, 4~20mA output with relay, with DI. Part No.
449671 Type 8045 Flow rate | 18.0 V - 36 V | -15.00 °C - 110.00 °C | Magnetic inductive | Transistor | FKM (fluororubber) | Stainless steel | FKM (Fluor rubber) 8045 Electromagnetic Flow Transmitter *316 bracket, long electrode, FKM sealed, display and pulse output +1 channel accumulation, 18~36VDC, 4~20mA output. Part No.
449672.
Type 8045 Flow rate | 18.0 V - 36 V | -15.00 °C - 110.00 °C | Magnetic inductive | Transistor | FKM (fluororubber) | Stainless steel | FKM (Fluor rubber) 8045 Electromagnetic Flow Transmitter *316 bracket, long electrode, FKM sealed, display and pulse output +1 channel.
accumulation, 18~36VDC, 4~20mA output with relay, with DI Part No.
449673, Type 8045, Flow rate | 18.0 V - 36 V | -15.00 °C - 110.00 °C | Magnetic inductive | Transistor | FKM (fluororubber) | Stainless steel |
426498, Type 8045, Flow rate | 18.0 V - 36 V | 0.00 °C - 80.00 °C | Magnetic inductive | Transistor | FKM (fluororubber) | PVDF (Polyvinylidene fluoride) | Accumulator, 4~20mA Output, 18~36VDC, 4~20mA Output. Part Number 563883. Type 8045.
Flow rate | 18.0 V - 36 V | 0.00 °C - 80.00 °C | Magnetic inductive | Transistor | FKM (fluororubber) | PVDF (Polyvinylidene fluoride) | FKM (Fluor rubber).
8045 Electromagnetic Flow Transmitter *316 Bracket Short Electrode, Display and Pulse Output + 1 Channel Accumulator, 18~36VDC, 4~20mA Output, Soldered at one end, Clip-on at the other. Part Number. 564797. Type 8045.
Flow rate | 18.0 V - 36 V | -15.00 °C - 110.00 °C.
°C | Magnetic inductive | Transistor | FKM (fluororubber) | Stainless steel 8045 Electromagnetic Flow Transmitter *316 bracket, short electrode, display and pulse output + 1 channel accumulation, 18~36VDC, 4~20mA output with relay, one end soldered, one end snap-fit, with DI Part No.
564798 Type 8045 Flow rate | 18.0 V - 36 V | -15.00 °C - 110.00 °C | Magnetic inductive | M20x 1.5 plugs + 2 2x 6 mm multi-purpose seals 449755 2 M20 x 1.5/NPT 1/2" adapters + 2 neoprene flat.
washers (for cable connectors or plugs) + 2 M20 x 1.5 plugs 551782 1 M20 x 1.5 plug (for unused cable connectors) + 1 2x6mm multi-purpose seal (for cable connectors) + 1 green FKM washer (for sensors) + 1 installation instruction manual 558102 Ring 619205 PC lubricant.
cap 619204 PPA lubricant cap 440229 1 green FKM + 1 black EPDM washer 552111 Calibration certificate 550676 FDA certificate 449788.
Plain language sourcing guide for Burkert 8045 electromagnetic flow transmitter (Germany)
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
