Burkert high-pressure solenoid valves, model 5404, 00140564.
LEHIY item code: LH-0307
Quick buying check
This page helps you check Burkert high-pressure solenoid valves, model 5404, 00140564. before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
We are a leading distributor of Burkert high-pressure solenoid valves, model 5404 (00140564) , available now and selling fast. A standard 2518 plug is included. Ample stock and guaranteed quality!
Model 5404 Servo Auxiliary Piston Solenoid Valve G1/2 inch * 2/2 Normally Closed, PTFE Seal, Brass Body, 24VDC Part No.
140564 Model Description: 5404-A12,0EFMSGM84-5-024/DC-08 Type 5404 2/2 - A - normally closed - inlet port 1 (P/NC) | 12.00 mm (7/16 inch) | 1.00 bar - 50.00 bar (50.00 bar) | Brass | Inner thread -.
G1/2 | 24.00 V - 24.00 V | PTFE (Polytetrafluorethylene) | -10.00 °C - 100.00 °C | Valve complete Burkert High Pressure Solenoid Valve 5404 DN12 G1/2 DC24V Pressure Resistance 1-50 bar The ordering model for the PTFE-sealed brass valve body is.
140564.

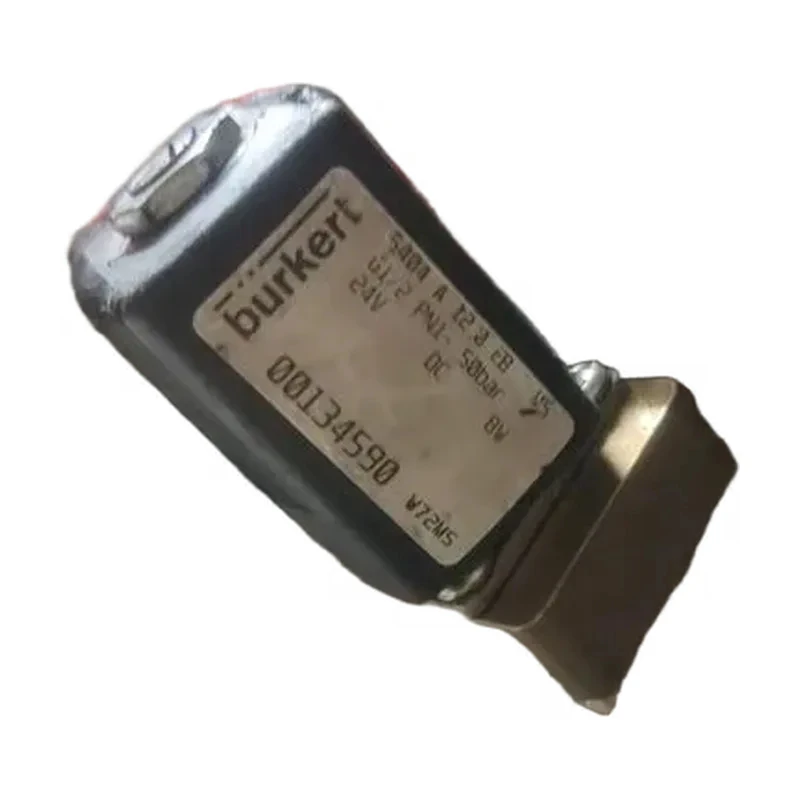

The Burkert 5404 high-pressure solenoid valve, DN20 G3/4 DC24V, with a pressure rating of 1-25 bar, has an ordering model of. 265604. The older Burkert 5404 high-pressure solenoid valve model 134590 was upgraded to 140564 several years ago.
Please be aware that these two products are identical replacements; please feel free to purchase the upgraded version.
The Burkert 5404 high-pressure solenoid valve is a servo-controlled two-position two-way piston valve. Description: The Burkert 5404 valve is a servo-controlled piston valve, available in NC and NO specifications. A minimum pressure differential is required for the valve to function.
The solenoid coil is coated with high-quality epoxy resin.
When used with a plug conforming to DIN EN 175301-803 Form A, the valve meets the IP65 protection rating. The plug is not included in the supply and must be purchased separately.
Features of the Burkert 5404 solenoid valve: Servo-controlled piston valve, maximum nominal diameter DN50, Category 2 explosion-proof specification.

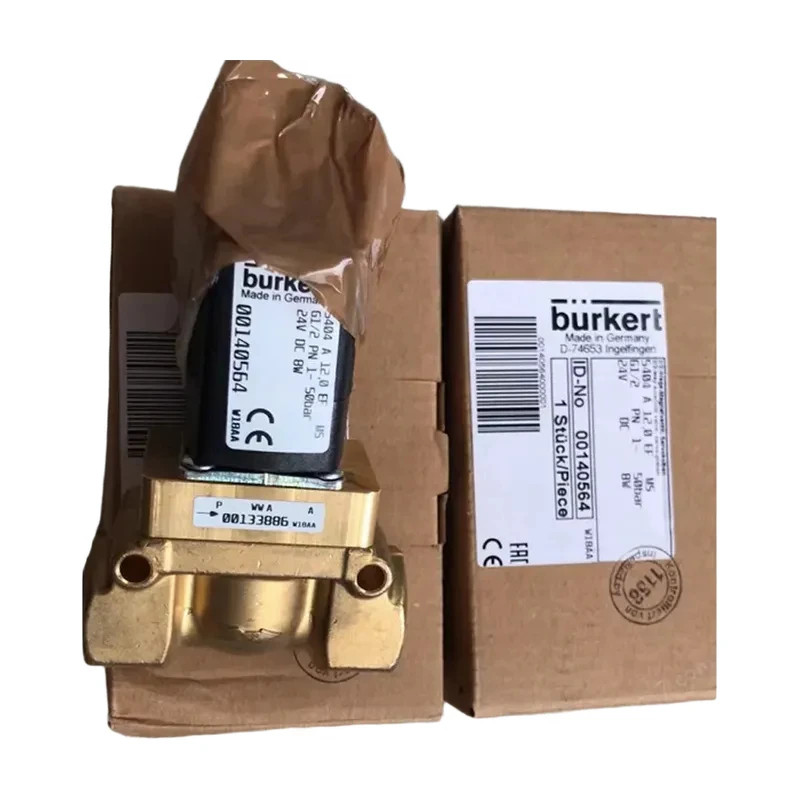

Suitable for gas and steam applications at temperatures not exceeding 160°C. Compressor pressure reducing valve suitable for gas and steam applications. Advantages: Distributor of Burkert high-pressure solenoid valve 5404 model 00140564 (old model 00134590), in stock and selling well. Actual product image: LEHIY Industrial.
Advantages: Distributor of genuine Burkert valves.
How to troubleshoot the Burkert 5404 solenoid valve?
If the Burkert solenoid valve malfunctions, please check: • Whether the Burkert solenoid valve is installed correctly, • Whether the electrical and fluid connections are correct, • Whether the equipment is damaged, • Whether all screws are tightened, • The applied voltage and pressure, • Whether the pipeline is contaminated, • Whether the power supply is sufficient.
What to do if the Burkert solenoid valve does not switch? Possible reasons why a Burkert valve might not switch: • Short circuit or coil interruption in the Burkert solenoid valve. • Insufficient power. • Contamination of the magnetic core or core space. • Medium pressure exceeding the permissible pressure range.
Possible reasons why a Burkert valve might not close: • Internal contamination of the Burkert valve.
Plain language sourcing guide for Burkert high-pressure solenoid valves, model 5404, 00140564.
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
