Burkert 6014 solenoid valve 125331
LEHIY item code: LH-0298
Quick buying check
This page helps you check Burkert 6014 solenoid valve 125331 before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.

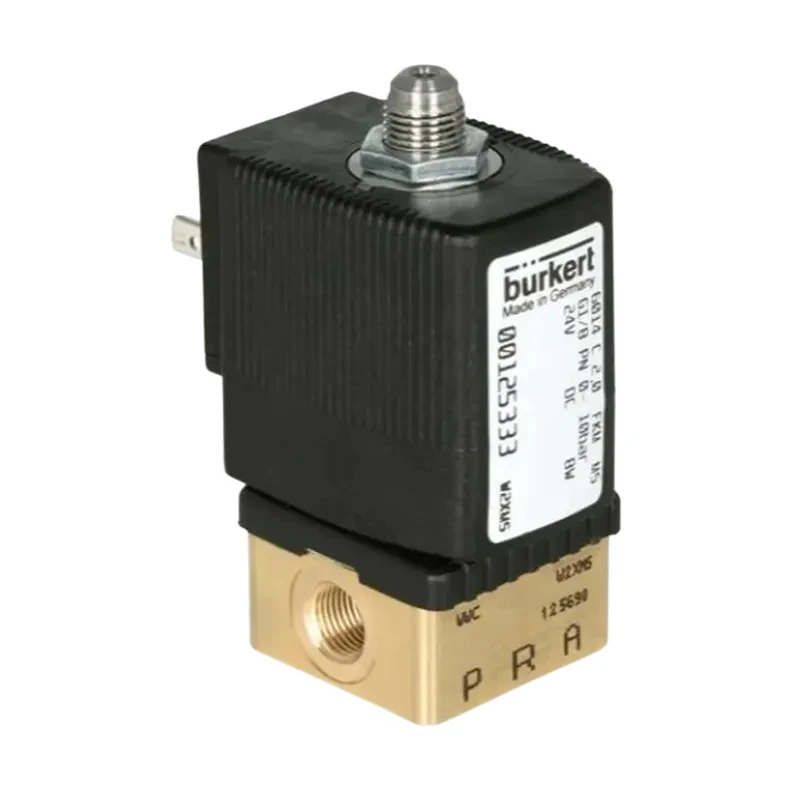

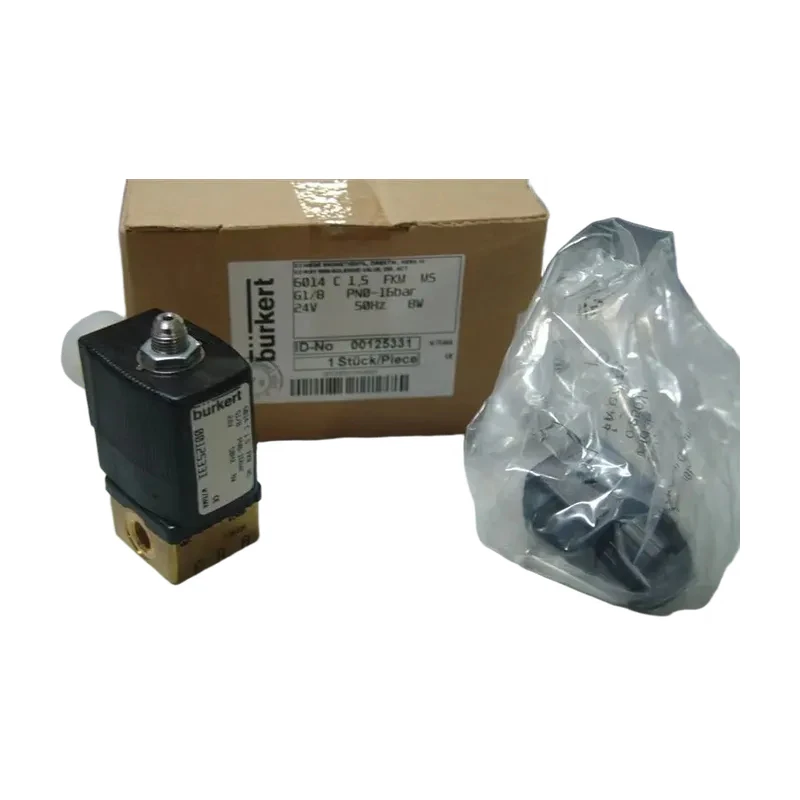

We offer a superior supply of Burkert 6014 solenoid valves (part number 125331). The Burkert 6014 is a direct-acting solenoid valve, G 1/8 inch * 3/2 inch, normally closed, FKM seal, brass body, 24VAC. with base plate connection.
Features include: Direct-acting, normally closed and normally open Brass, plastic, and stainless steel body Electrical connection: A-type cable plug Standard supply with or without manual switch.
This series of solenoid valves is compatible with the 2508 cable plug, 1078 timer, 6014 multi-valve floor, and 2511 ASI cable plug.
Two-position, three-way solenoid valves can be installed individually or in combination on a base plate. High-quality FKM seal material is suitable for a variety of media. This valve is also suitable for process vacuum.
Technical parameters are as follows: Connection port: G 1/8, G 1/4; Base plate connection inner hole: DN 1.5 - 2.5; Valve body material: Brass or stainless steel, polyamide (base plate connection); Coil material: Polyamide (epoxy resin available) upon request); Coil insulation class: Polyamide Class B (epoxy.
resin Class H available upon request); Sealing material: FKM (EPDM available upon request); Medium: Neutral gases and liquids (eg, compressed air, water, hydraulic oil), also suitable for process vacuum media; Temperature: Polyamide coil (FKM seal) -10 to +100 °C; Ambient temperature: -10° to +55°C; mm²/s; Operating power: 24.
V DC, 24 V/50 Hz, 230 V/50 Hz (other power supplies available upon request); Voltage tolerance: ±10%; Load cycle/single valve: 100% continuous operation for base plate mounting, 60% intermittent operation.
(30 min) or with 5 W coil (available upon request) Electrical connection: Type 2508 DIN EN 175301-803 Type A cable plug. Protection rating: IP65. Installation orientation when cable plug is inserted: can be installed as needed, preferably with actuator facing upwards.
Our company has an advantage in supplying Burkert 6014 solenoid valve 125331.
Burkert/Baodi 6014 solenoid valves are available in various order numbers: 125329 125331 125332 125333 125334 125336 125348 126138 126140 125341 125340 125342 126142 126143 126145 126195 126196 125355 125357 125358 125360 126198 126199 126201 125363 126202 126204 126205 126206 126208 126150 126151 126153 For product details, please contact our.
sales department for information and a quote!
Plain language sourcing guide for Burkert 6014 solenoid valve 125331
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
