Burkert 8802 type proportional control valve DN50 welding
LEHIY item code: LH-0292
Quick buying check
This page helps you check Burkert 8802 type proportional control valve DN50 welding before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Burkert 8802 model German proportional control valve DN50 weldment 00366051, detailed configuration: 2300 type angle seat control valve 00274670 + 8692 type valve positioner 00306913. If the customer requires flange installation, a pair of flanges can be added later.
This Burkert 8802 model proportional control valve is sourced directly from the German Burkert factory, offering good discounts, fast delivery, and a one-year quality guarantee. We can provide pre-sales and after-sales services such as selection technology according to customer needs!
Burkert 8802 type proportional control valve DN50 welded 00366051 parameter description: Burkert 8802 type pneumatic control valve welded 60.3X2.0* main valve 2300 angle seat valve + 8692 positioner, 2/2 normally closed, DN50, stainless steel seal, 316 valve body, 24VDC 8802 type Burkert proportional control valve DN50 welded.
00366051 technical attributes/features: Type: 8802 Valve type: Angle seat valve 2300 type Control type: Positioner 8692 type Control function: Spring force closed circuit function/number of positions: 2-way/2-position Inner diameter: 50mm (2") Seal material: Stainless steel Material: Stainless steel Port connection: Welded end 60,3 x.
2,0, conforms to ISO 4200, DIN EN ISO 1127, DIN 11866 series B Port Connection P/R: Not Applicable Actuator Version: Component Design Actuator Actuator Size: Dm 90mm Interface: Fitting Thread M70 × 2 (Standard DN50) Pilot Air Connection: Interface Component-Top and Remote Sensor to Component-Actuator Flange.
Type: Interface Component-Top Control and Remote Sensor to Component-Actuator Structure: None Function: No Description Pneumatic Function: Single Acting DN 0, 6 Actuator Type: Without Valve Path Sensor: None Power Supply Voltage: 24V DC Control Method: 0-10V, 0-5V, 4-20mA, 0-20mA Adjustable Electrical Connection: Cable Conduit.
Fluid Interface: G1 / 8 / SS Operation/Configuration: Mainboard and Internal Display Proximity Switch: None Software Confirmation: 1 Binary Input Additional Functions: None Communication: Service-BUS Installation: None; Operation: Not applicable; Valve block VB1: Not inserted; Control function VB1: No information; Valve block VB2: Not inserted; Control function VB2:.

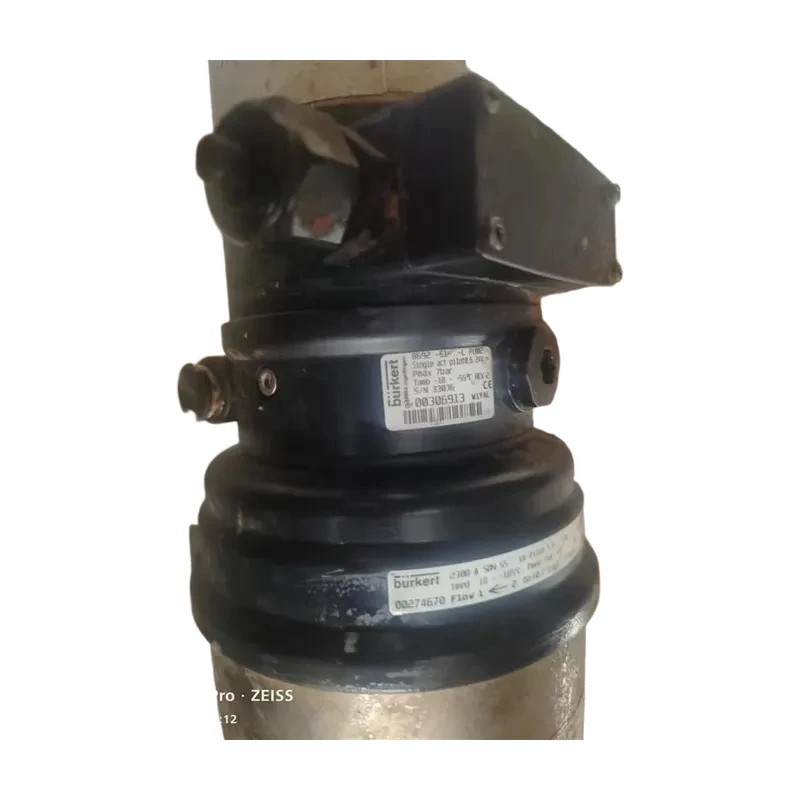

No information; Approval system: No approval required; Accessories: None; Installation/Delivery: Packaged and sealed; Approved components: Suitable for food, damp non-metallic materials, compliant with EC Regulation 1935/2004; Certification documents: UL certified; 8802 type German Burkert proportional control valve DN50 welded 00366051; Actual picture: Burkert pneumatic proportional control valve.
type 8802 - ELEMENT continuous control valve system overview: Description of German Burkert proportional control valve type 8802; The design of the 8802 type continuous ELEMENT system series allows for easy integration of digital automation equipment at all stages of expansion.
From simple Basic positioners to powerful positioners with optional fieldbus interfaces, to fully functional digital process controllers, operable via backlit graphic displays.
The highly integrated control valve and automation unit system features a compact, streamlined design with integrated control air piping, IP65/67/NEMA 4X protection rating, and high chemical resistance.
Features of the Burkert 8802 proportional control valve from Germany: Utilizing advanced technology for integrated automation, long service life, excellent regulation quality, especially for tilt valves and straight-seat valves; outstanding control performance, particularly for angle-seat and shut-off valves.
The Burkert 8802 proportional control valve and ELEMENT continuous control valve can be used with the following products: Burkert 2301 pneumatically operated two-way shut-off control valve... Burkert 2300 pneumatically controlled two-way angle-seat control valve... ELEMENT Burkert 2103 with stainless steel pneumatic actuator...
Burkert 8692 digital electro-pneumatic positioner for integration into process control valves... Burkert 8694 process control valve with integrated digital electro-positioner... Burkert 3361 electric two-way straight-seat control valve.
Plain language sourcing guide for Burkert 8802 type proportional control valve DN50 welding
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
