Burkert Valve Positioner 8692 (306925)

Burkert Valve Positioner Model 8692

• This compact position controller is designed for integration into pneumatic actuators of the 23xx/2103 series process control valves and is specifically designed for hygienic process conditions. The control air passage in the actuator is integrated without external piping. Easy operation and numerous additional software functions are available via a large backlit image display and membrane keypad or through the Bürkert Communicator software. The positioner detects valve position non-wear-free using a non-contact analog position sensor. Integrated diagnostic functions allow monitoring of the control valve's operating conditions. In accordance with NE107 (NAMUR), valve diagnostic information is displayed via status signals and recorded as historical entries. The valve body, made of chemical-resistant materials, is easy to clean and provides practical IP protection for use in hygienic process technologies in the food, beverage, and pharmaceutical industries. Combined with the Bürkert actuator from the ELEMENT series, the pneumatic control system enables ventilation of the spring chamber, thereby preventing environmental contamination of the drive chamber. ---Compact and durable stainless steel design---Easy commissioning via automatic parameters: Sealing material: Valve body PPS, stainless steel seals EPDM protective cover PC operation display Backlit graphic display and intuitive menu navigation operation buttons Membrane keypad with 4 keys Maintenance interface Connects to computer via USB Configuration tool: Bürkert Communicator software PACTware (only applicable to versions with PROFIBUS, DeviceNet, or analog versions with serial interface) Communication fieldbus: EtherNet/IP, PROFINET, Modbus TCP, PROFIBUS DP-V1, DeviceNet Digital Bürkert System Bus (büS) – based on CANopen measurement principle Inductive (non-proximity) Position Acquisition Module: Non-contact (wear-free) analog position sensor;
• Valve stem travel range: 3–45 mm;
• Digital Input: 1 binary input, 0–5 V = logarithmic “0”, 10–30 V = logarithmic “1”;
• Digital Output: 2 binary outputs (optional), electrically isolated;
• Current limit: 100 mA, output as synchronous signal in overload condition;
• Analog Output: 1 output (optional), 0/4–20 mA, 0–5/10 V;
• Control Medium: Neutral gas, air, quality class conforming to ISO 8573-1 standard;
• Dust content: Class 7 (particle size < 40 μm);
• Particle density: Class 5 (< 10 mg/m3);
• Pressure dew point: Class 3 (< -20 °C);
• Oil concentration: Class Size): ELEMENT 23xx type (actuator size Ø70/90/130 mm);
• CLASSIC 27xx type (actuator size Ø175/225 mm) Our company supplies original Burkert valve positioners, model 8692

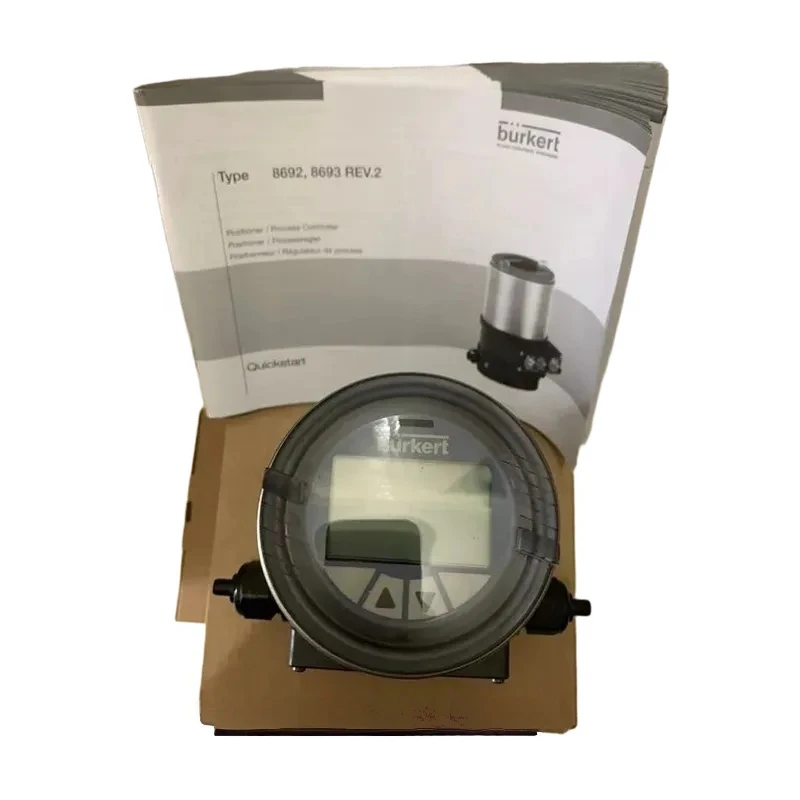

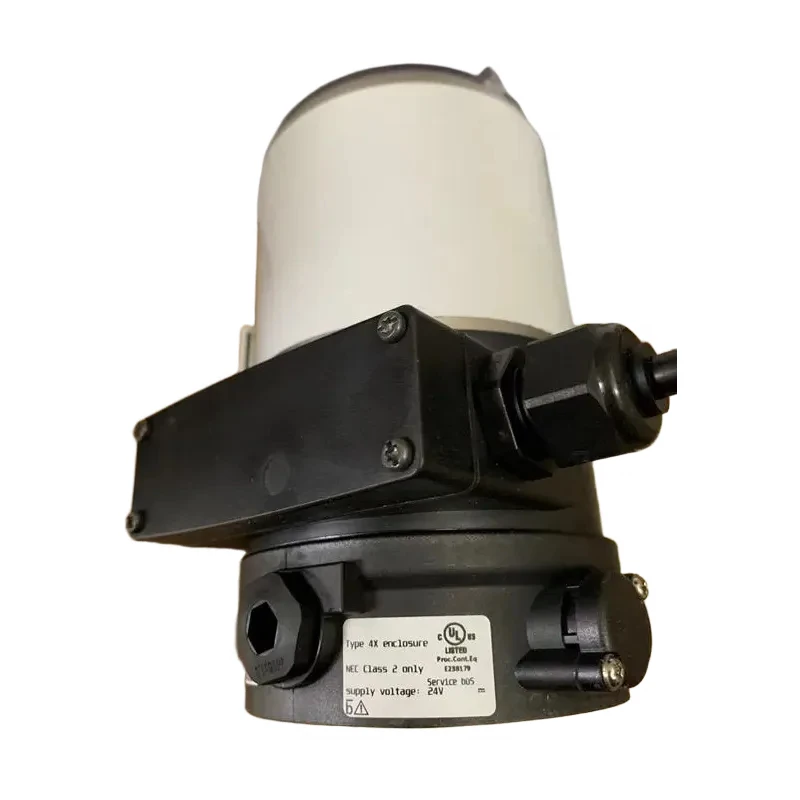

• . The Burkert valve positioner 3069025 is an 8692 type liquid-display pneumatic positioner, single-acting, 24VDC, analog control, cable through a Grand connector, G1/8 inch air port, keypad + display, 1DI, büss communication, with UL certification. Several models of the Burkert 8692 valve positioner are available: 306925, 306913, 233348, 253190, 261603, 306854, 306863, 306914, 306915, 306916, 306917, 306919, 306922, 306923, 306926, 306928. For details regarding Burkert valve positioners (model 8692, 306968, 306972, 306982), please contact our sales department.
