Burkert cylinder actuator, model 214528
LEHIY item code: LH-0279
Quick buying check
This page helps you check Burkert cylinder actuator, model 214528 before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Burkert Cylinder Actuator Model 2051 (Order No. 214528) This Burkert cylinder/pneumatic oscillating actuator (model 2051) consists of a single-acting or double-acting pneumatic linear piston actuator. It features an internal coupling for connecting the rotating parts and a universal mechanical interface conforming to ISO 5211.
When the piston moves linearly under the pressure of control air or the force of a return spring, the drive shaft rotates 90° under the action of the coupling. This rotational motion can be used to operate corresponding adjusting elements, such as ball valves, valves, etc.
The actuator has an optical indicator for displaying the rotational position.
The main features of the Baode 2051 cylinder are as follows: --- Modular product suitable for installation on valves (such as ball valves and gate valves) --- Interfaces compliant with NAMUR and ISO 5211 --- Position feedback, and explosion-proof construction options --- Side control positioner installation The main parameters.
of the Baode 2051 cylinder are as follows: Material Actuator Aluminum alloy piston Aluminum seals Nitrile rubber Control medium Filtered compressed air Oil-containing or oil-free Control pressure 43.5-116 PSI (3-8 bar) Maximum permissible working pressure 145 PSI (10 bar) Maximum operating pressure 116 PSI (8.
bar) Tummable -40°F up to 200°F (-40°C up to +93°C) Rotation 90° Adjustable angle per 20° Interface Pilot airflow NAMUR Flange interface VDE/VDI 3845 G ¼" Feedback signal NAMUR VDE/VDI 3845 Connection ISO 5211 Our company has a strong advantage in supplying Burkert cylinder.
actuators, specifically the Burkert 2051 model 214528.

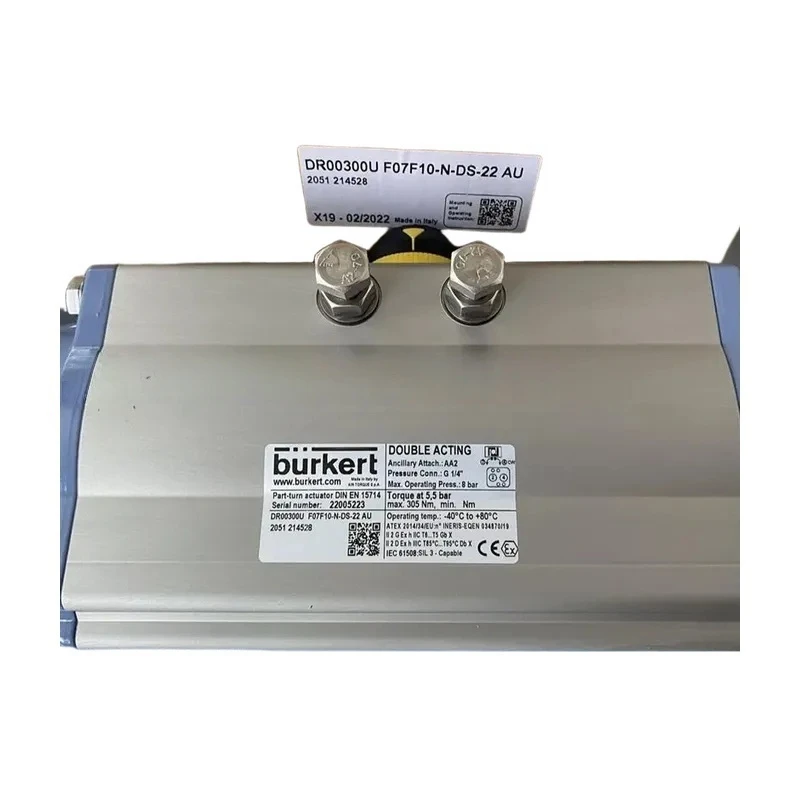

The German Burkert 214528 cylinder is a 2051 type pneumatic angular stroke actuator, double-acting, F07/F10, 22mm shaft square, G1/4 inch air inlet.
Several models of the Burkert 2051 cylinder are available: 214513, 214520, 214522, 214524, 214525, 214526, 214527, 214528, 214529, 214530, 214531, 214532, 214533, 214534, 214535, 214536, 214537, 214538, 214539, 214540.
For details regarding the Baode cylinder 2051 model 214528, please contact our sales department.
Plain language sourcing guide for Burkert cylinder actuator, model 214528
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Burkert | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
Burkert cylinder actuator, model 214528
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
Burkert cylinder actuator, model 214528 verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
