Burkert Gas Mass Flow Controller 8711 Upgrade to 8741
LEHIY item code: LH-0264
Quick buying check
This page helps you check Burkert Gas Mass Flow Controller 8711 Upgrade to 8741 before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.

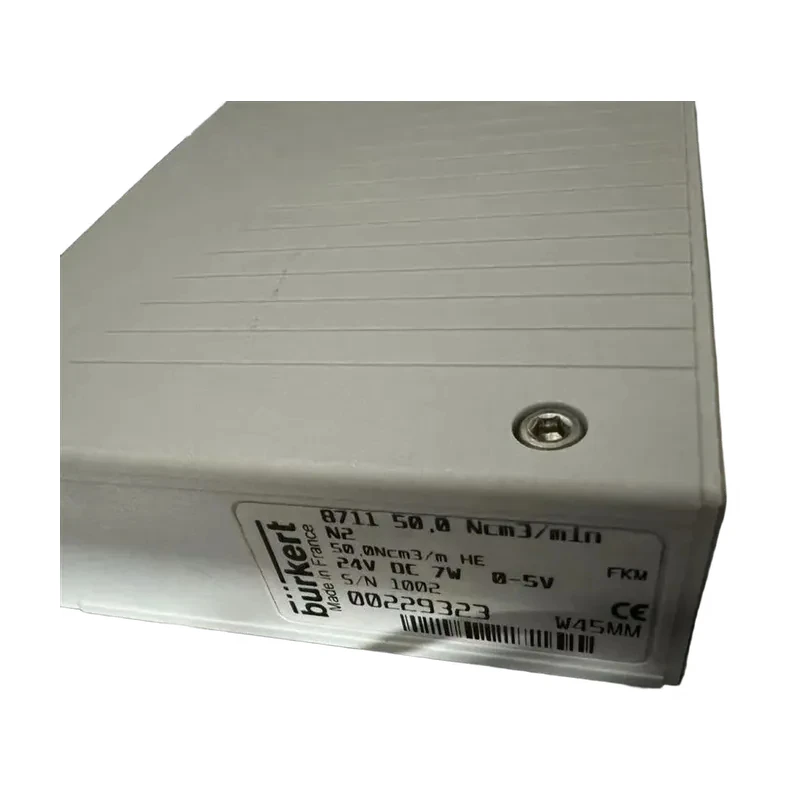

Burkert MFC 8711 Gas Mass Flow Controller (Order No. 00229323) | N2 | 50.00 Ncm³/min | 24 V DC | Innengewinde - G1/4" | 0-5 V Burkert MFC 8711 Gas Mass Flow Controller Upgrade to Model 8741 Notice!
The Burkert MFC 8711 gas mass flow controller is only available for purchase until July 1, 2025.
The successor type is (may vary slightly due to updates): Burkert MFC 8741 Gas Mass Flow Controller. Please contact us. We are happy to advise you on the successor product that meets your requirements.
Type 8711 - Burkert MFC Gas Mass Flow Controller Type Description The Burkert MFC 8711 mass flow controller is suitable for mass flow control of gases over a wide flow range.
A thermal MEMS sensor located directly in the gas flow enables extremely high-speed response. A direct-acting Burkert... The proportional valve, as the actuator, ensures excellent response sensitivity. An integrated PI controller gives the Burkert MFC superior control characteristics.
The 8711 Burkert mass flow controller MFC can be calibrated for two different gases, and users can switch between them. As an electrical interface, it provides both analog standard signals and fieldbus.
The 8711 Burkert mass flow controller is suitable for a variety of applications, such as burner control, heat treatment, material coating, bioreactors, fuel cell technology, or test benches. Nominal flow range: 0.010 lN/min to 80 lN/min. High measurement accuracy and repeatability. Exceptionally fast turnaround speed.
Optional: Fieldbus interface.
Type 8741 - Gas Mass Flow Controller (MFC)/Gas Mass Flow Meter (MFM) Type Description: The 8741 Gas Mass Flow Controller (MFC)/Flow Meter (MFM) is suitable for a wide range of applications and can be equipped with industrial Ethernet, analog, or fieldbus interfaces.
The CANopen-based Burkert System Bus (büS) version is suitable for integration into existing CANopen systems.
In the network, or combined with the ME43 fieldbus gateway, it can be integrated into all common industrial standards of industrial Ethernet or fieldbus. The latter is ideal for applications with multiple controlled objects. Up to 32 MFCs/MFMs can be connected to the fieldbus gateway.
The ME43 can transmit internal CANopen-based communication to industrial Ethernet or fieldbus standards. Mass flow controllers/flow meters can switch between bürkert and CANopen communication at any time. The 8741 model can be configured as MFM or MFC as needed.
The device can store up to four calibration curves.
The thermal MEMS sensor located directly in the airflow has a very fast response time. The Bürkert direct-acting proportional valve as the actuator ensures high responsiveness. The integrated PI controller ensures that the MFC has superior control characteristics.
Rated flow range 0.010 l/min to 160 l/min High accuracy and high repeatability Extremely fast response time The device changeover is simplified by configuring a memory card Options: USP Class VI, FDA, EC 1935 Compliant Burkert Gas Mass Flow Controller 8711 upgraded to Burkert Thermal Gas Mass.
Flow Controller 8741.
Product Models: 8741 Thermal Gas Mass Flow Controller * 50 nl/min 95% Ar + 5% H2, rated pressure 4 bar, aluminum base, G 1/4 inch, PROFINET Part No.
20000234; 8741 Thermal Gas Mass Flow Controller * 150 nl/min, air, rated pressure 2 bar, aluminum base, G 1/4 inch, 4-20 mA Part No.
20001217; 8741 Thermal Gas Mass Flow Controller * 3 nm³/h, H2, rated pressure 5 bar, aluminum base, G 1/4 inch, 4-20 mA Part No.
20001620 Model 8741 Thermal Gas Mass Flow Controller * 20 Model 8741 Thermal Gas Mass Flow Controller * 100 nl/min, CO₂, rated pressure 1.5 bar, aluminum base, G 1/4 inch, 4-20 mA, Part No.
20003115; Model 8741 Thermal Gas Mass Flow Controller No. 20003116; Model 8741 Thermal Gas Mass Flow Controller * 10 nl/min, O₂/N₂/Air, rated pressure 3 bar, aluminum base, G 1/4 inch, büS/CANopen, Part No.
20003440; Model 8741 Thermal Gas Mass Flow Controller * 40 nl/min, O₂/N₂/Air, rated pressure 3 bar, aluminum base, G 1/4 inch, büS/CANopen, Part No.. 20003441.
Model 8741 Thermal Gas Mass Flow Controller *150 nl/min, Air, Rated Pressure 2 bar, 316L Base, G 1/2 inch, 4-20mA, Part No.
20004651; Model 8741 Thermal Gas Mass Flow Controller *2 nl/min, O₂, Rated Pressure 2 bar, 316L Base, G 1/4 inch, 4-20mA, Part No.
20004652; Model 8741 Thermal Gas Mass Flow Controller *10 nl/min, CO₂, Rated Pressure 2 bar, 316L Base, G 1/4 inch, 4-20mA, Part No.
20004653; Burkert MFC Model 8711 00229323 is currently available for order and production, but the Burkert Model 8711... The 00229323 mass flow meter is only available for a limited time. The Burkert gas mass flow controller 8711 is discontinued; the subsequent upgrade is the 8741 model.
For more information on Burkert MFC technology and selection for upgrading from the 8711 to the 8741 model, please contact us!
Plain language sourcing guide for Burkert Gas Mass Flow Controller 8711 Upgrade to 8741
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Burkert | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
Burkert Gas Mass Flow Controller 8711 Upgrade to 8741
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
Burkert Gas Mass Flow Controller 8711 Upgrade to 8741 verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
