Burkert conductivity probe 8221-93161521, Burkert electrode 1.5
LEHIY item code: LH-0248
Quick buying check
This page helps you check Burkert conductivity probe 8221-93161521, Burkert electrode 1.5 before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Burkert conductivity probe 8221-93161521, 1.5" Clamp K=0.36, comes with factory test report, instruction manual, and material certificate.
Burkert electrode 8221 model 93161500/01/02, 93161521 can be offered at a special price for bulk orders, with good discounts, timely delivery, brand new, 1-year warranty, and fully calibrated and tested before leaving the factory.

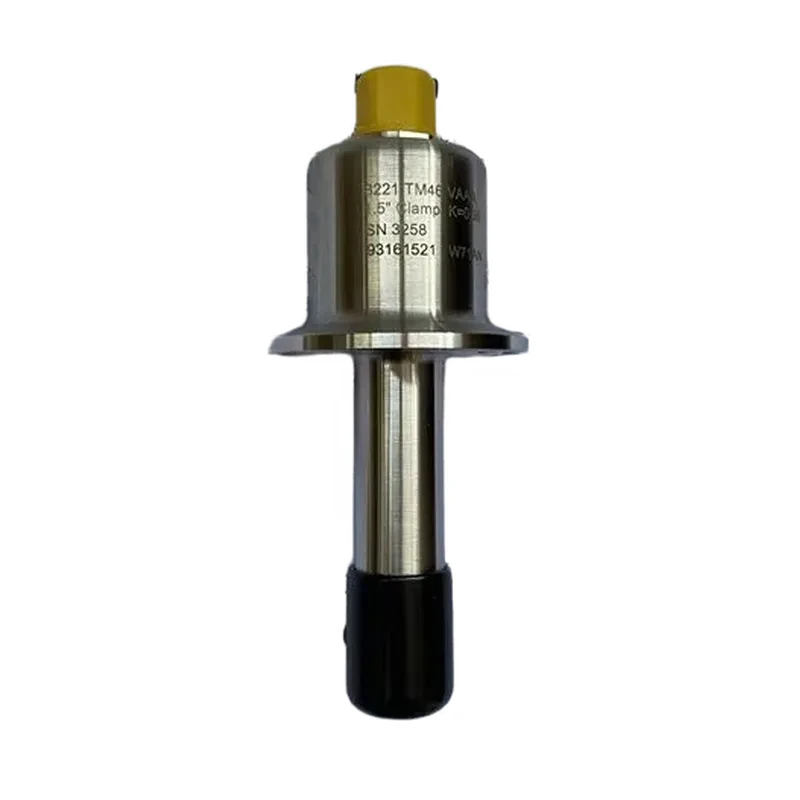

Burkert conductivity probe 93161521 8221-TM46-VAAA-RA-A-F1-S-000/00-0 Nameplate parameters: 8221 TM46 VAAA 1.5" Clamp K=0.36 SN3258 93161521 W71AN. Burkert conductivity probe type description: 8221S conductivity sensor, used with conductivity transmitters to measure the conductivity of liquids.
Due to its hygienic design and robust construction, this conductivity electrode is suitable for demanding applications such as food and beverage, pharmaceutical, biotechnology, and chemical industries. Two conductivity electrode technologies are available: • 2-electrode technology is suitable for measuring clean liquids. Contaminants can affect measurement results.
• 4-electrode technology eliminates polarization and is less sensitive to contaminants. The carefully designed structure ensures excellent linearity over a wide conductivity range. A built-in temperature sensor (Pt1000) is included as standard.
Burkert 8221-93161521 Electrode Features/Characteristics: • Two-electrode or four-electrode technology • Process interface, materials, surface polishing precision, etc.
are designed for sanitary applications . Suitable for SIP (Steam Injection) & CIP (Cleaning in Line) . Robust construction .
All wetted parts are FDA certified Genuine Burkert Conductivity Probe 8221-93161521 In Stock Detailed Multi-Angle View: Burkert Conductivity Probe 8221-93161521 1.5" Clamp K=0.36 Technical Attributes: Technical Attributes Pressure (bar) (Max) 20 Medium Temperature (°C) (Minimum) -20 Medium Temperature (°C) (Max) 150 Ambient Temperature (°C).
(Minimum) -20 Ambient Temperature (°C) (Max) 80 Features Typ 8221 Port connection Clamp 50.5 x 38.6 x 1.5 according to ISO 2852 Material: stainless steel Seal material: EPDM Sensor: 4-pol conductivity electrode + PT1000 cell constant C=0.36 Measuring range: freely programmable function sensor measurement.
Design: fitting for analytic electrode and temperature sensor Voltage without Frequency without Output signal standard Special feature: M12 connector 8 pins Insertion length 65 mm with certification 3.1 Asia-version Burkert conductivity probe, Burkert conductivity electrode 8221 type.
Commonly used models for biomedical equipment include: Burkert electrode probe 93161500, 93161501, 93161502, 93161521, 568818, etc.
Plain language sourcing guide for Burkert conductivity probe 8221-93161521, Burkert electrode 1.5
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
