Burkert 8045 Flow Transmitter 426498
LEHIY item code: LH-0243
Quick buying check
This page helps you check Burkert 8045 Flow Transmitter 426498 before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.

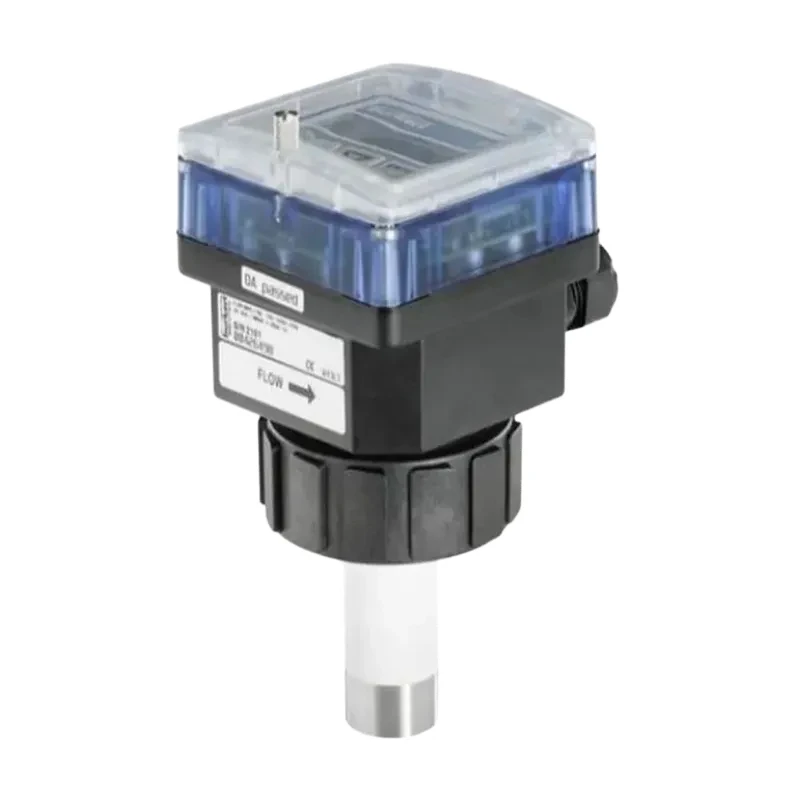

Burkert 8045 Flow Transmitter (Order No. 426498) is an electromagnetic flow meter consisting of an electronic module with a backlit display, operating buttons, and a PVDF or stainless steel sensor.
It is suitable for neutral and mildly corrosive liquids with a conductivity greater than 20 µS/cm in the DN06-DN400 range.
It features a 4-20 mA output port and a digital output port (pulse output by default). Some versions offer two relay output ports and one digital input port. Flow rate is calculated by two independent accumulators.
Available interfaces include: - G2" interface for PVDF sensors - G2" or clamp interface for stainless steel sensors.
The stainless steel sensor version is suitable for high-pressure (PN16) and high-temperature applications (110°C). The C22 alloy electrode version is suitable for corrosive liquids (chemicals) and seawater applications.
The Burkert Flow Meter, Model 8045, features the following key characteristics: • Solid-state sensor (no moving parts) • Simultaneous display of instantaneous and cumulative flow • Analog function: simulates all output signals without actual flow rate • Clean-in-line (CIP) capability • FDA certified.
The Burkert Flow Meter, Model 8045, also has the following key parameters: Measurement range: 0.02 - 4500 m³/h Flow velocity: 0.2 - 10 m/s Accuracy: Teach-In calibration ≤ ±2% of reading Standard K-coefficient calibration ≤ ±4% of reading Linearity: ≤ ±(0.1% of full.
scale * + 1% of reading) Repeatability: ≤ ±0.25% of reading Electrical connections: M20 x 1.5 cable connector Power cable Shielded, maximum cross-section: 1.5 mm² Protection rating: IP65, relative humidity ≤ 80% when cable connector is connected, non-condensing Maximum altitude: 2000 m Medium temperature: PVDF.
sensor 0-80℃ Stainless Steel Sensor;.
- 15 to 110℃ Ambient Temperature: -10 to 60℃ (Operating);
- 20 to 60℃ (Storage);
- Maximum Medium Pressure: Stainless Steel Sensor;
- PN10 (Plastic Connector) - PN16 (Metal Connector);
- Conductivity: Minimum 20 μS/cm;
- Connector Material: PVC, PP, PVDF, Brass, Stainless Steel;
- Inner Hole: DN 06-DN 400;
- Operating Power: 18-36 V DC, filtered and rectified (3-wire);
- Current Consumption with Sensor: ≤ 300 mA;
- Output Pulse: NPN and PNP, open collector, current isolation, maximum 36 V DC, maximum 100 mA;
- Short Circuit Protection and Reverse Protection: Relays (Programmable) (Optional);
- 2 normally open relays, freely programmable, 3A, 250 V AC or 3A, 30 V DC (Resistive Load);
- Maximum Breaking Power: 750 VA (Resistive Load), Hysteresis Mode Process Value 4-20 mA, maximum loop impedance: 1300 Ω (30 V DC), 1000 Ω (24 V DC), 700 Ω (18 V DC). Our company offers Burkert 8045 flow transmitters, model 426498. The Burkert 8045 flow meter is an electromagnetic flow transmitter with a PVDF bracket, short electrode, FKM seal, display and pulse output + 1-channel accumulation, 18~36VDC, 4~20mA output. Several models of the Burkert 8045 flow transmitter are available: 426498, 426499, 426506, 426507, 449670, 449671, 449672, 449673, 558675, 559367, 563883, 564797, 564798. For details regarding the Baode electromagnetic flow transmitter, model 8045
- , please contact our sales department.
Plain language sourcing guide for Burkert 8045 Flow Transmitter 426498
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Burkert | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
Burkert 8045 Flow Transmitter 426498
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
Burkert 8045 Flow Transmitter 426498 verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
