Burkert 00001398 pneumatic valve is suitable for gaseous media.
LEHIY item code: LH-0230
Quick buying check
This page helps you check Burkert 00001398 pneumatic valve is suitable for gaseous media. before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.

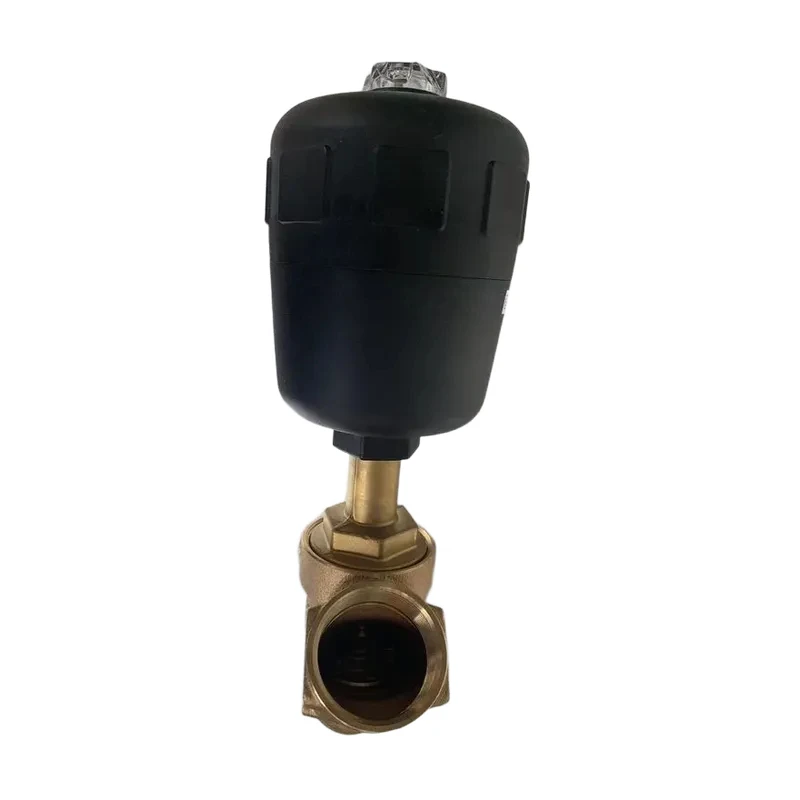

Burkert 00001398 pneumatic valve, suitable for gas media, DN65, in stock, original factory source, ensuring authenticity. Burkert pneumatic angle seat valve/Burkert angle seat valve/Burkert pneumatic valve, model 2000, order number 00001398.
The Burkert angle seat valve 00001398 is a model 2000 pneumatic angle seat valve G21/2 inch * 2/2 normally closed, DN65, PTFE seal, gunmetal body, top-flow valve seat, suitable for gas media.
The Burkert 2000 pneumatic angle seat valve can be used for: neutral gases and liquids at pressures up to 16 bar; steam up to 10 bar/180°C.
The stainless steel body is also suitable for corrosive fluid systems in engineering, food processing, chemical industries, and sterilizers. The Burkert 2000 angle seat valve is a two-position, two-way angle seat valve for high-quality fluids and steam.
The externally piloted angle seat valve is controlled by a single-acting or double-acting piston actuator.
Depending on the ambient temperature, the actuator is available in two materials: gunmetal or stainless steel. The two-way valve body enables high flow rates. A reliable self-adjusting seal provides high sealing performance.
These maintenance-free and durable valves can be refurbished and improved with a variety of accessories to add functions such as position indication, stroke limits, or manual on/off.
Burkert 2000 pneumatic valve features the following characteristics: ---Spring return for opening or closing, double-acting---Material: gunmetal, stainless steel---Large flow rate---With self-adjusting seal, intermediate safety, and scraper---Visual position indicator---Pilot connector can rotate 360°---Minimum actuator volume, low air consumption---Electrical position indicator, travel limiter,.
and manual switch are provided as accessories.
Our company offers Burkert 00001398 pneumatic valves suitable for gas media DN65. In stock, original factory sourced, ensuring genuine products.
The main parameters of the Burkert 00001398 pneumatic angle seat valve are as Number of fluid ports: 2; Number of valve functions for switching positions: 2; Control function: A-Normally closed (NC); Manual actuation; Port connection type 1 not supported; Internal thread port connection 1 thread marking: 2; 1/2.
port connection 1 thread type: G; Celsius; Maximum medium temperature: 185 degrees Sealing material: PTFE; Kv value (water): 77 cubic meters/hour; Orifice: 65 mm; Nominal valve body size: 65 mm.
For product details of Baode pneumatic valve 2000 type 00001398, please contact our sales department.
