Burkert distributes Burkert angle seat valve 001394 DN25 welded type, .
LEHIY item code: LH-0229
Quick buying check
This page helps you check Burkert distributes Burkert angle seat valve 001394 DN25 welded type, . before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Baode is an authorized distributor of Burkert angle seat valves, model 001394, DN25, welded, sourced directly from the manufacturer. We guarantee genuine Burkert pneumatic valves/angle seat valves, model 2000, order number. 00001394.

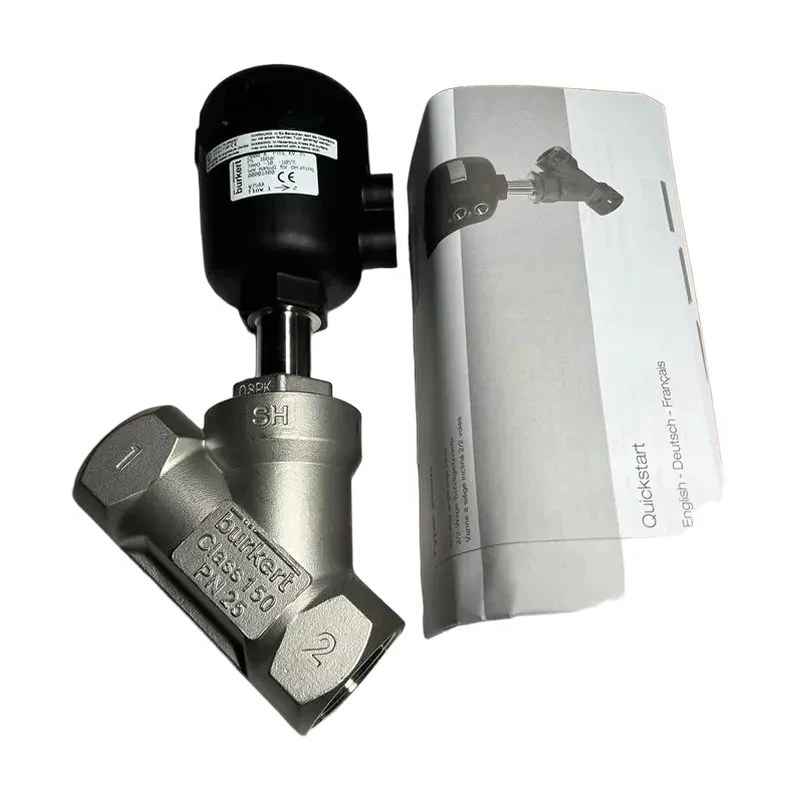

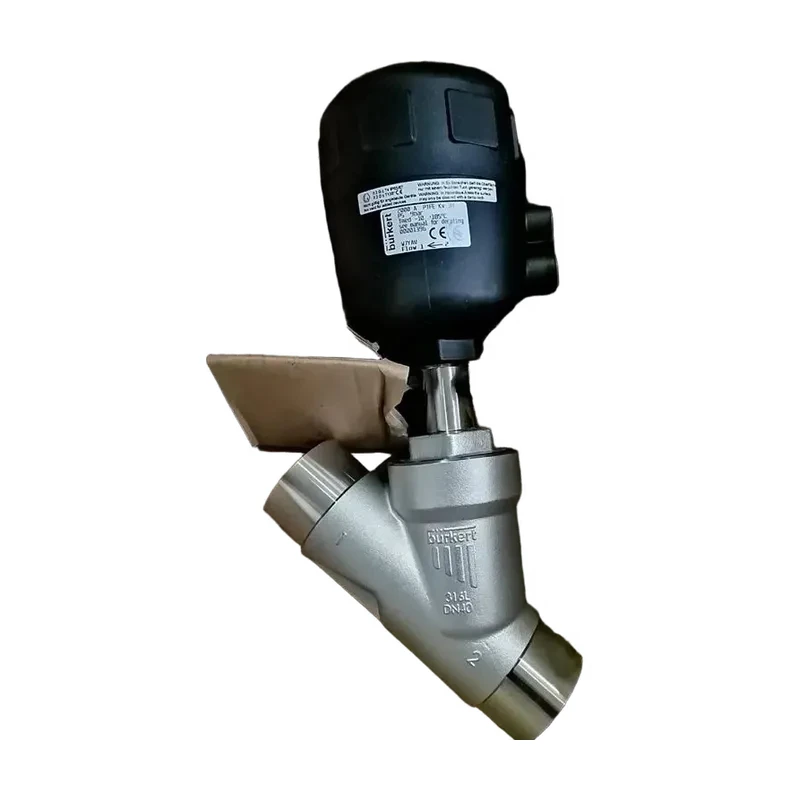

This Burkert pneumatic angle seat valve (model 2000) is a welded 33.7 x 2.0 x 2/2 normally closed, DN25, PTFE seal, 316 valve body.
The Baode 2000 model pneumatic angle seat valve consists of a pneumatic piston actuator and a two-way valve body. The actuator is available in two different materials—PA and PPS—depending on the ambient temperature. A proven, self-regulating spindle seal ensures high sealing performance.
The streamlined two-position, two-way valve body is made of gunmetal or precision-cast stainless steel, enabling high flow rates. These maintenance-free and robust valves can be fitted with various accessories for position display, stroke limiting, or manual emergency operation.
The Burkert 2000 type angle seat valve features the following: • Stainless steel or gunmetal body with threaded, chuck, and welded connections • Long service life • High flow rate • Durable actuator with modular accessory options. Our company is an authorized distributor of Burkert angle seat valves 001394 DN25 welded versions.
We have Burkert pneumatic angle seat valve 00001394 in stock.
Product parameters are as follows: Number of fluid ports: 2 Number of valve functions for switching positions: 2 Control functions: A-Normally closed (NC) Manual actuation Not supported Port connection type 1 Welded port connection 1 Inner diameter: 29.7mm Port connection 1 DN DN25 Port connection 1 Outer diameter:.
33.7mm Port connection 1 Piping standards: ISO4200 DIN11866 DINENISO1127 Body material: Stainless steel Minimum nominal pressure: 0 bar Maximum nominal pressure: 11 bar Minimum medium temperature: -10 degrees Celsius Maximum medium temperature: 185 degrees Celsius Minimum ambient temperature: -10°C maximum ambient temperature; 55°C sealing material; PTFE Kv.
value (water); 19 cubic meters/hour orifice; 25 mm valve body nominal size; 25 mm type; 2000 flow direction; seat down; pilot-operated valve; pneumatic vacuum version; oxygen version not supported.
For details about the Baode 2000 pneumatic valve 00001394, please contact our sales department.
Plain language sourcing guide for Burkert distributes Burkert angle seat valve 001394 DN25 welded type, .
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
