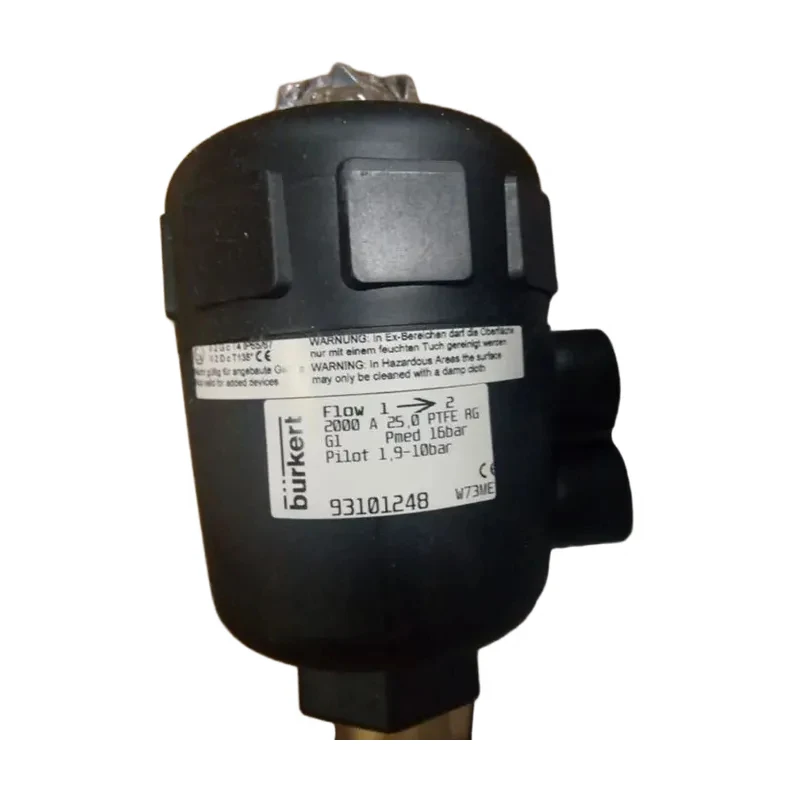

Baode Valves distributes Burkert double-acting angle seat valves, specifically for nitrogen generators, model 93101251. This includes Burkert pneumatic angle seat valves. The 931 prefix indicates a nitrogen generator. Common Burkert double-acting angle seat valve models include: 93101253, 93101252, 93101249, 93101248, 93101249, 93101250, 93101251, and 93101398.
How does the stability of Burkert double-acting angle seat valves compare to single-acting ones? Burkert pneumatic angle seat valves | Burkert double-acting angle seat valves, model 2000 (starting with 931), are used in nitrogen generators.
Burkert double-acting angle seat valves offer slightly higher stability than single-acting ones.
For low pressure applications, there's no difference; however, at high pressures, single-acting valves become unsuitable because fluid pressure resists spring pressure, leading to internal leakage over time. Externally controlled Burkert angle seat valves consist of a pneumatic piston actuator and a two-way valve body.
Depending on the ambient temperature, two different actuator materials (PA and PPS) are available. A proven, self-adjusting spindle seal ensures high sealing performance. The flow-friendly two-position two-way valve body, constructed of brass or precision-cast stainless steel, enables high flow rates.
Various accessories can be added to these maintenance-free, robust valves for position indication, stroke limiting, or manual emergency operation. What is the difference between single-acting and double-acting Burkert angle seat valves? The single-acting Burkert pneumatic angle seat valve opens with air and closes automatically.
It comes in two functions: normally closed and normally open (controlled by a 2-position 3-way solenoid valve).
The functions of the two ports on the Burkert double-acting pneumatic angle seat valve opens and closes with air (this function has two air inlets on the actuator, controlled by a 2-position 5-way solenoid valve). double-acting pneumatic angle seat valve are:.
- Burkert valve open/close position indicator.
- External pneumatic pilot, increasing service life and requiring no maintenance.
- Self-adjusting sealing gland between the overflow port and the slide block, improving sealing performance.

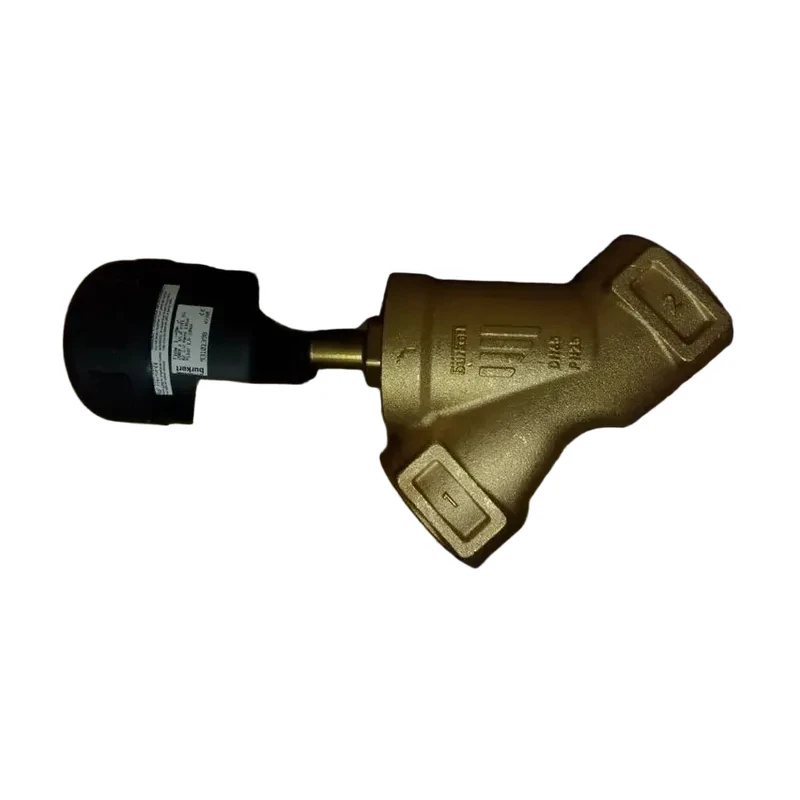

- Angle seat structure in the valve body allows for high flow rates (especially compared to ordinary gate valves), with a compact structure and fast response. Baode Valves distributes Burkert angle seat valves (double-acting, nitrogen generator specific model 93101251). Features of the two-position, two-way Burkert pneumatic angle seat valve:
- Stainless steel or copper housing with sleeve, clamp, or welded fittings.
- High flow rate, low flow resistance, no water hammer.
- Long service life.
- Y-type design expands the valve cavity flow cross-section, making the fluid flow smoother and increasing flow by 30%.
- Valve stem is made of 316 stainless steel, corrosion resistant;
- wedge-type PTFE seal allows for automatic valve stem alignment, self-lubrication, and maintenance-free operation.
- Pilot cylinder – made of PA and stainless steel, more durable in harsh environments, capable of 360-degree rotation. Applications of the Burkert 2000 model angle seat valve: Beer and beverage bottling equipment, printing and dyeing textiles, gas industry, pharmaceuticals and medical equipment, chemical industry, high-temperature sterilization, foaming machinery, wastewater treatment.
