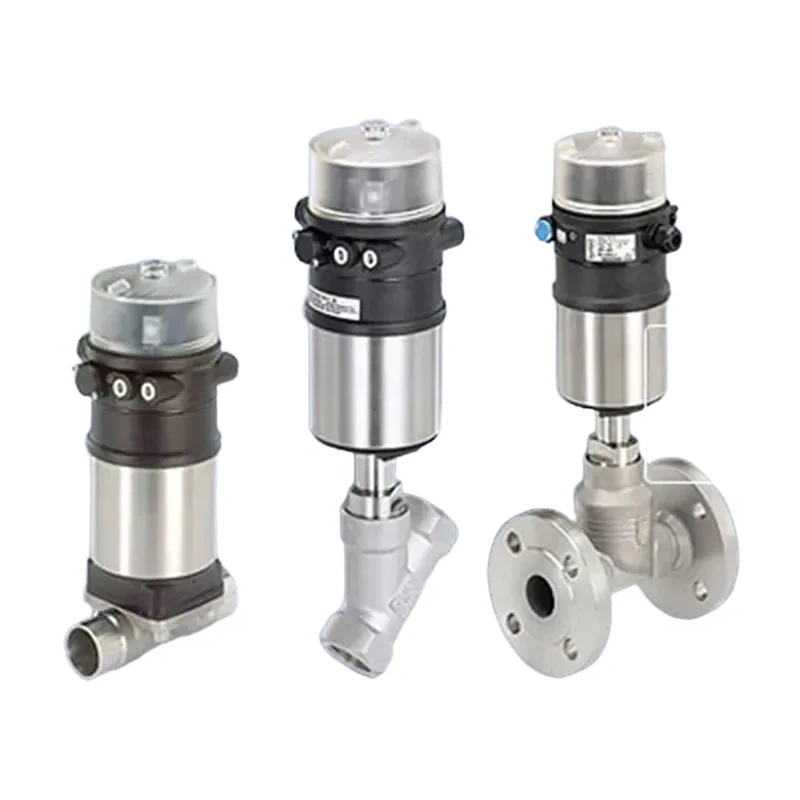

Burkert proportional control valves 2702 and 2712 with positioners
LEHIY item code: LH-0215
Quick buying check
This page helps you check Burkert proportional control valves 2702 and 2712 with positioners before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Burkert proportional control valves 2702 and 2712 with positioners are available in pneumatic and electric versions. Electric versions are generally suitable for smaller diameter industrial control applications. Burkert pneumatic proportional control valves can be used to regulate both gases and liquids.
They can be used for pressure stabilization, flow stabilization, and temperature control. Burkert control valves can be used for both liquid and gas flow regulation. Burkert flow control valves have two series: 2702 and. 2712.
The Burkert 2702 is an angle valve, and the Burkert 2712 is a straight-seat valve.
The 2702 series Burkert proportional control valves are relatively cheaper, offer better value, and are more commonly used. Valve diameter range: DN15-50. The Burkert 2712 series control valves can reach diameters up to 100mm, and this series offers flange connections.
Considering safety and service life, we recommend using flange connections for equipment and pipeline diameters larger than DN50 for a more secure connection.
Burkert proportional control valve 2702, 2712 parameters: Brand: Burkert/Burkert Origin: Germany Function: Flow regulation Material: 316L stainless steel Working pressure: Up to 16 bar Medium temperature: ≤180℃ Nominal diameter 2702: DN 15-50 2712: DN 15-100 Installation interface 2702: Welded, threaded, clamp 2712: Welded, threaded, flanged, clamp Medium:.
Gas or liquid (please consult for corrosive media) Note: For Burkert proportional control valves of the 2702 and 2712 series, special requirements for welding, flanges, and clamps must be communicated in advance.
The Burkert flow control valves 2702 and 2712 are valves only and cannot be used alone. They require a Burkert positioner to form a complete set. Burkert positioners include 8692, 8693, 8694, 8792, 8793, etc., selected based on whether the customer requires a display, feedback, or PID control.
Why use Burkert proportional control valves 2702 and 2712 with positioners?
In automated production process control systems, control valves are a crucial and essential component, often referred to as the "hands and feet" of automation, and are one of the terminal control elements of the automatic control system.
Control valves have simple flow paths and low resistance, generally suitable for forward use (installation).
However, in high-pressure drop applications, control valves can be used in reverse to improve unbalanced forces and reduce damage to the valve core, while also facilitate media flow and preventing coking and blocking.
When using control valves in reverse, prolonged periods of low opening should be avoided to prevent strong oscillations that could damage the valve core.
Especially during the trial production phase of chemical plants, where loads are low and design process conditions cannot be quickly met, control valves used in reverse should avoid prolonged periods of low opening to prevent damage.
It adjusts the flow rate by changing the stroke according to the input signal to change the resistance coefficient. The Burkert proportional control valve's structure and usage:.
- Burkert proportional control valve structure: Except for the angle-type valve body, the structure of the Burkert proportional control valve is similar to that of a single-seat valve. Additionally, a Burkert positioner is installed on the seat. Its characteristics result in a simple flow path and low resistance, making it particularly advantageous for regulating fluids with high pressure drops, high viscosity, and containing suspended solids and particulate matter. It can prevent coking, adhesion, and clogging, and is also easy to clean and self-clean.
- Comparison of forward and reverse use of Burkert proportional control valves: Generally, Burkert control valves are installed forward, ie, bottom inlet and side outlet. Reverse installation (material side inlet and bottom outlet) is only recommended in high pressure differential situations and for high-viscosity, easily coking, or media containing suspended particles. The purpose of reverse use is to improve unbalanced forces and reduce wear on the valve core, while also facilitating the flow of high-viscosity, easily coking, and media containing suspended particles, preventing coking and clogging. Analysis of reverse use of Burkert proportional control valves: Under high pressure drop process conditions, reverse use is recommended for Burkert control valves. During the test run, the control valve exhibited strong vibrations and emitted a piercing noise. After 4 hours of testing, the valve core broke. However, this was not a quality issue, but rather due to improper use. The cause of the breakage is analyzed below. Generally, Burkert control valves are not recommended for reverse operation. Reverse operation is only recommended for media with high pressure differentials, high viscosity, easy coking, or containing suspended particles. When using in reverse, prolonged operation at a small opening should be avoided, especially during test runs.
Plain language sourcing guide for Burkert proportional control valves 2702 and 2712 with positioners
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Burkert | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
Burkert proportional control valves 2702 and 2712 with positioners
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
Burkert proportional control valves 2702 and 2712 with positioners verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
