Burkert 8745 Mass Flow Controller MFC 00357245
LEHIY item code: LH-0209
Quick buying check
This page helps you check Burkert 8745 Mass Flow Controller MFC 00357245 before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
The Burkert 8745 mass flow controller MFC 00357245 is sourced directly from Germany and manufactured in France, ensuring authenticity. This Burkert 8745 series mass flow controller, order number 357245, is for nitrogen.

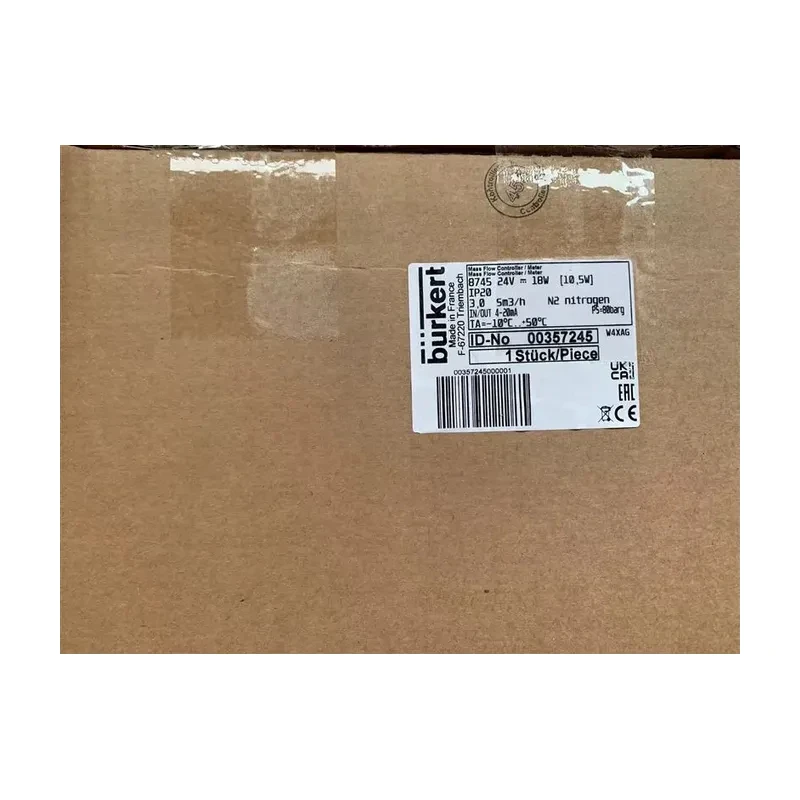

Specifications: 24V-18W, IP20, 3.0 Sm3/h, N2 nitrogen, IN/OUT 4-20mA, S/N 1003 W4XAG PS=80barg.
Features of the Burkert 8745 series mass flow controller include: • Rated flow range from 20 l/min to 2500 l/min • High accuracy and repeatability • Communication via standard signals or industrial Ethernet • Electromagnetic and electric valve actuators available • Simplified device changeover via memory card configuration.
The Burkert 8745 mass flow controller (MFC)/mass flow meter (MFM) is suitable for controlling the mass flow rate of large volumes of gas. The 8745 model can be configured as either an MFM or MFC (Mechanical, Dynamic, and Controller) gas calibrator. It can calibrate up to four different gases.
A thermally inline sensor located directly in the main gas flow enables extremely fast response times with minimal pressure loss. A Bürkert direct-acting proportional valve as the actuator ensures high responsiveness.
An integrated PI controller guarantees precise The 8745 model as an MFC is available in two versions: with a solenoid proportional valve and with an electric proportional valve.

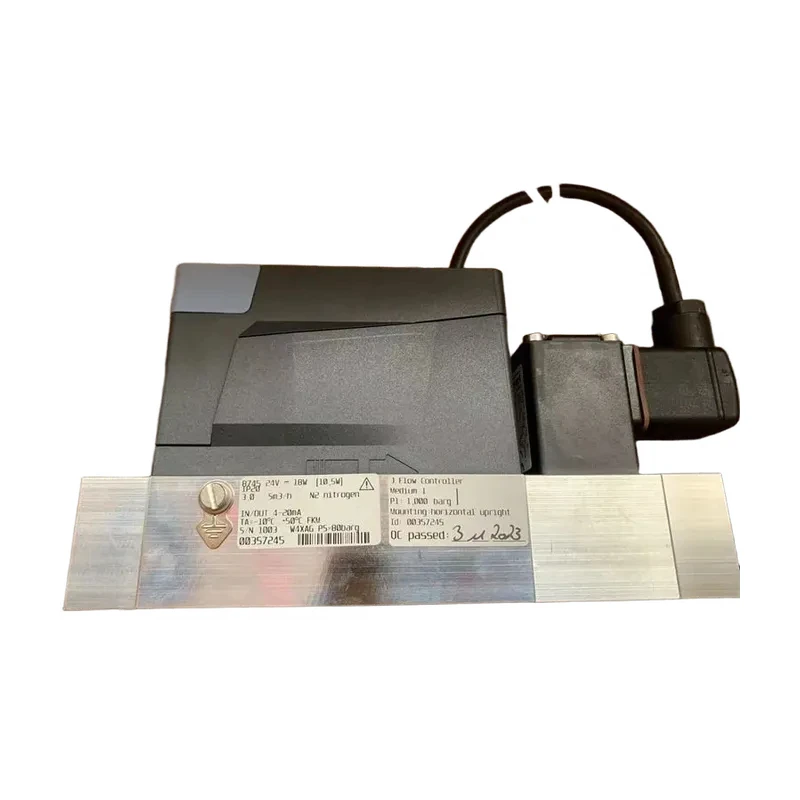

The Burkert 8745 MFC product (00357245) is shown in the following image: The Burkert MFC 00357245 is an 8745 type thermal gas mass flow controller (3 Sm³/h, N₂), aluminum base, G1/4 inch, rated pressure 1 bar, 4-20mA.
Key parameters are as follows: Series: 8745; Measurement: Flow; Operating Mode: Control Medium: N₂ (nitrogen); Nitrogen Flow Rate: 3 Sm³/h; Calibration Pressure: 1 bar; Power Supply: 24V DC; Power: 2.5-4W; Control Method: Standard Signal 4-20mA; Thread Material: Aluminum; Sealing Material: KFM; Mounting Position: Horizontal; Hole Diameter:.
2.5mm; Proportional Control: Type 2873; Calibration Medium: Air; Maximum Pressure: 1 bar.
8745 series mass flow meter and controller, please contact our sales department.
Plain language sourcing guide for Burkert 8745 Mass Flow Controller MFC 00357245
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Burkert | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
