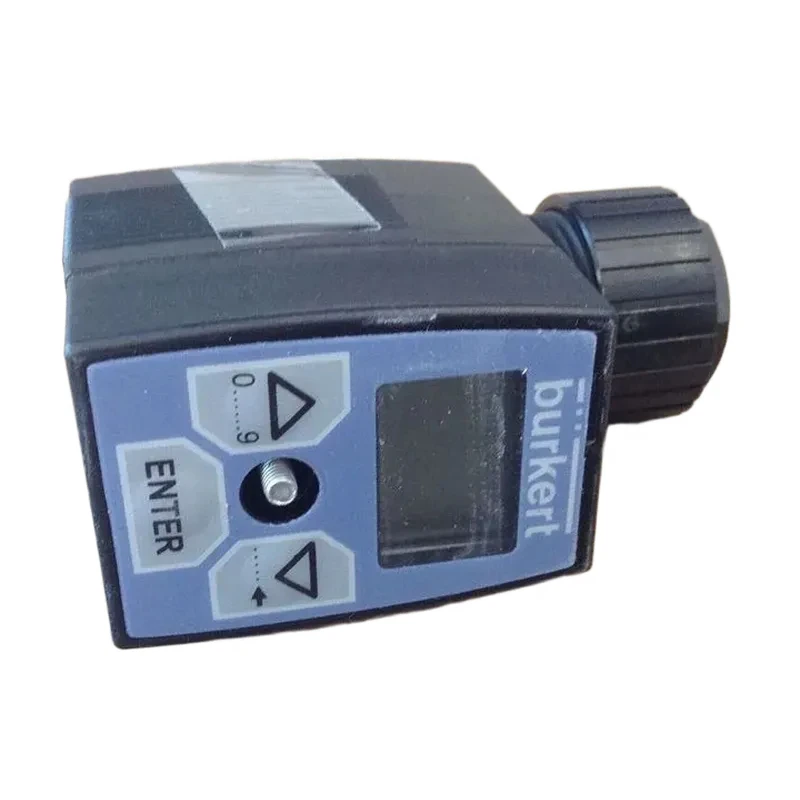

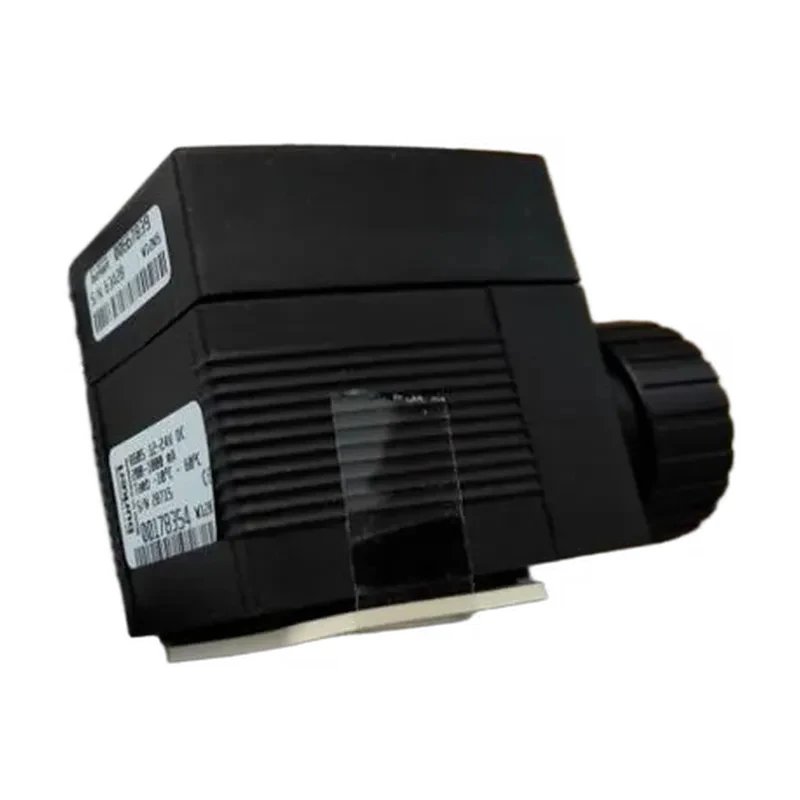

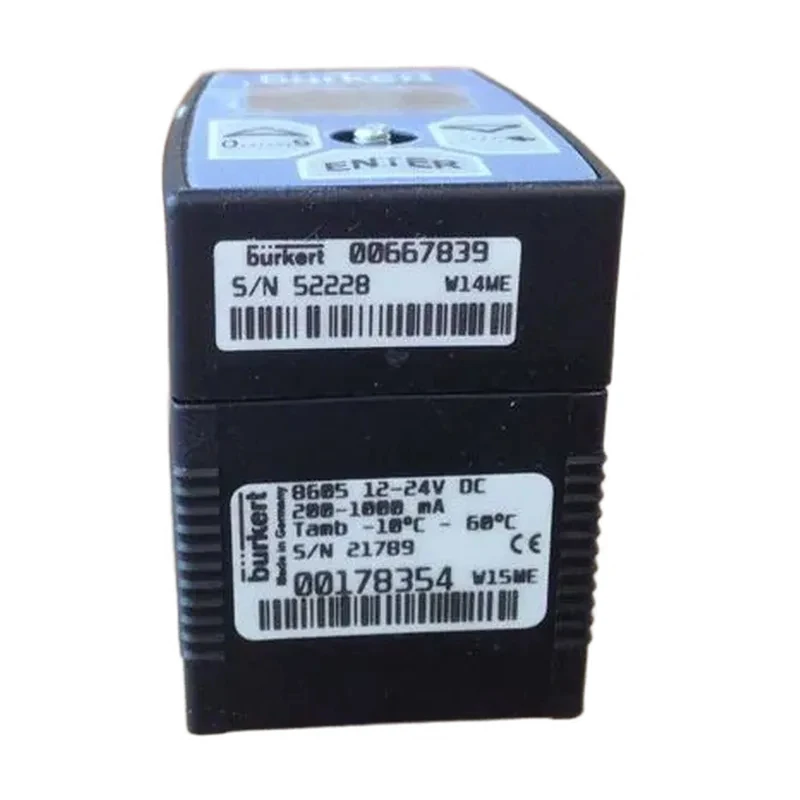

Burkert proportional valve controller 2873/75, model 8605-316530
LEHIY item code: LH-0196
Quick buying check
This page helps you check Burkert proportional valve controller 2873/75, model 8605-316530 before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Burkert proportional valve controller 2873/75 type 8605-316530, 316532 in stock.
Burkert 8605 proportional valve controller features: PWM control electronics for Burkert solenoid proportional valves • Programmable digital electronics • Converts analog input signals to PWM output signals • Adjustable PWM frequency • Digital communication (büS) capability • Optional integrated time control and digital/analog input.
8605 Burkert proportional valve controller *Through-hole mounting, Gland wiring, analog input, control signal PMW. Part number 316530.
Type 8605 Valve electronics | Cable feed-through | 12.00 V - 24.00 V | 200.00 mA - 1.000.00 mA | -10.00 °C - 60.00 °C | 80.00 Hz - 6.000.00 Hz Bürkert 8605 Proportional Valve Controller *Rail Mount,.
Terminal Strip Wiring, Analog Input, Control Signal PMW Type 8605 / Product Number 316532 Technical Attributes Valve electronics | Terminal strip | 12.00 V - 24.00 V | 200.00 mA - 1.000.00 mA | -10.00 °C - 60.00 °C | 80.00 Hz.
- 6.000.00 Hz Model Description: The Bürkert 8605 digital control electronics are used to control Bürkert proportional solenoid valves with a power range of 40–2000 mA.
The electronics convert external standard signals into pulse width modulation (PWM) signals to continuously adjust the opening of the proportional valve and fluid output variables (eg, flow rate).
Internal current control, using the cycle of the PWM signal as the control variable, ensures that each value of the input signal is individually associated with a specific value of the effective coil current, regardless of the coil's temperature condition.
The electronic components can be easily adjusted via the display and control buttons to suit specific proportional valves and application conditions. To integrate Bürkert control valves and proportional valves into higher-level control systems, a CAN-based Bürkert controller model (called büS) duty must be used.
The proportional valve parameters can be set and configured quickly and easily using the Bürkert Communicator software. Furthermore, the büS control electronics allow for the integration of shut-off valves into the büS/CAN system.
Through integrated time control, the shut-off valve can be opened or closed for a specific period.
This can be used in applications such as dosage control during filling processes. The Bürkert controller model 8605 can be optionally equipped with an I/O board. This allows for the connection of external sensors or switches.
The valve's response to these input signals can be configured (eg, two-point control).
Product Operation 2873/75 Burkert Proportional Valve Controller 8605-316530, 316532 In Stock Function Overview The 8605 Burkert Control Unit for Burkert proportional valves: . Microcontroller-controlled electronics . Compensation for solenoid coil heating via internal current control . Configurable ramp function . Adjustable zero-point shut-off . Continuously adjustable PWM frequency .
Easy adjustment of minimum and maximum current (just opening or fully opening) according to actual pressure conditions . Display and buttons (analog version) . Switchable input standard signals (analog version) . CANopen-based digital communication (büS version) The 8605 Burkert Control Unit (büS) for Burkert shut-off solenoid valves: .
Microcontroller-controlled electronics . CANopen-based digital communication . Integrated time control function . On/off counter . Energy-saving operation through reduced power .
Optional digital/analog inputs; the version with sensor input can use 2 Technical parameters of the Burkert proportional valve controller model 8605: Ordering list for the Burkert proportional valve control unit:.
Plain language sourcing guide for Burkert proportional valve controller 2873/75, model 8605-316530
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
