Burkert conductivity probe 93161521 for biomedicine
LEHIY item code: LH-0188
Quick buying check
This page helps you check Burkert conductivity probe 93161521 for biomedicine before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.

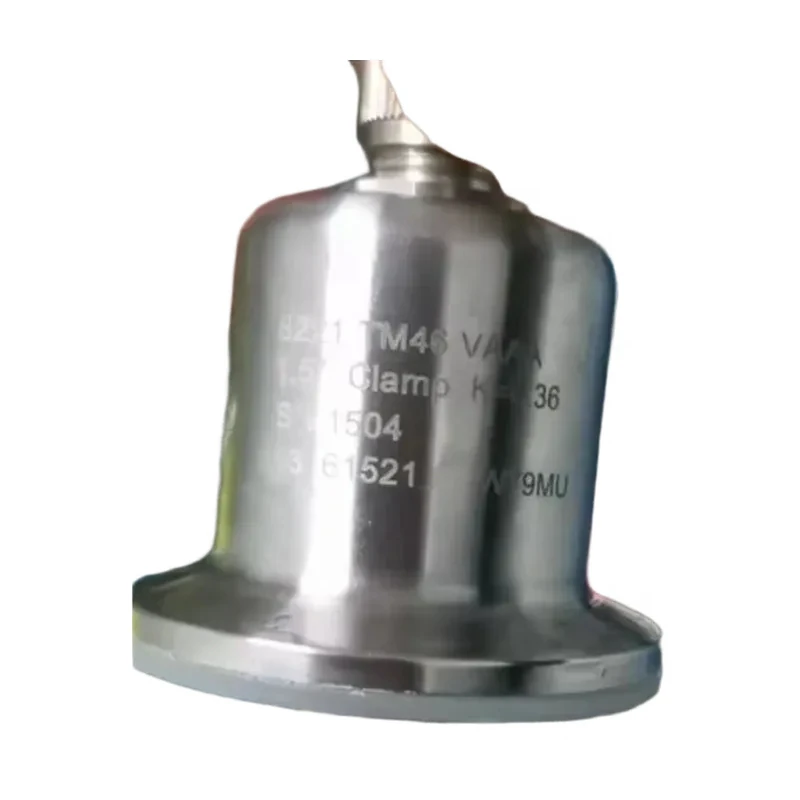

The Burkert conductivity sensor 8221S 93161521 is made of stainless steel and suitable for media such as water for injection, pure water, ultrapure water, deionized water, and concentrated solutions in the food, beverage, pharmaceutical, biotechnology, and chemical industries.
LEHIY Industrial, as an authorized Burkert distributor, regularly stocks Burkert 8221S conductivity electrode probes (models 93161500/01/02, 93161521) for biomedical equipment projects. Inquiries are welcome; competitive pricing, genuine quality guaranteed. Complete procurement documentation.
Type Description: Burkert 8221S This conductivity sensor, used with Burkert conductivity transmitters, measures the conductivity of liquids. Its hygienic design and robust construction make it suitable for demanding applications in the food and beverage, pharmaceutical, biotechnology, and chemical industries.
Two conductivity electrode technologies are available: • 2-electrode technology is suitable for measuring clean liquids. Contaminants can affect the measurement results. • 4-electrode technology eliminates polarization and is less sensitive to contaminants. The carefully designed structure ensures excellent linearity over a wide conductivity range.
A built-in temperature sensor (Pt1000) is included as standard. Features: • Two-electrode or four-electrode technology • Process interfaces, materials, and surface polishing precision are designed for hygienic applications • Suitable for SIP (Steam Injection) & CIP (Cleaning in Line) • Robust construction • All wetted parts are FDA certified.
8221S 93161521 Burkert Conductivity Probe Technical Specifications: Temperature Sensor Pt1000 Measurement Range 2 Electrodes C=0.01: 0.05... 20 mS/cm C=0.1: 1... 200 mS/cm Electrode C=0.36: 1 mS/cm... 500 mS/cm Linearity 1 (relative) ±0.5...
5% Material: Electrode: Stainless steel 1.4435/316L Sensor Body: Stainless steel 1.4435/316L, PEEK with FDA certification (CFR 177.2415) Sealing: EPDM with FDA certification Surface Quality: 0.4 mm, Electropolishing Medium Temperature: -20°C to 150°C Medium Pressure: Max.
10 bar Electrical Connections: 2 Electrodes: M12, 5-pin connector 4 Electrodes: M12, 8-pin connector Genuine stock 93161500 8221S Burkert conductivity electrode can be used with the following products: 8619 multiCELL Burkert Transmitter/Controller 8221S Model German Burkert Conductivity Electrode Applications: . WFI (Water for Injection) . Reverse Osmosis . Distillation .
Monitoring Ion Exchange . Electrodeionization Genuine Burkert 93161521 Conductivity Electrode Probe Installation: The Burkert 93161521 conductivity probe for biopharmaceutical applications is in stock.
This 8221S Burkert sensor can be installed in any orientation. To obtain reliable measurement results, air bubbles must be prevented and the electrode must be continuously immersed in the measured medium.
Burkert 8221S Conductivity Electrode Ordering List: Genuine, brand new Burkert conductivity sensors, Burkert conductivity probes 8221S model 93161500, 93161501, 93161502 are in stock, offered at competitive prices, genuine quality guaranteed for 1 year.
Plain language sourcing guide for Burkert conductivity probe 93161521 for biomedicine
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Burkert | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
Burkert conductivity probe 93161521 for biomedicine
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
Burkert conductivity probe 93161521 for biomedicine verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
