Burkert 8077 Oval Gear Flow Meter 567203
LEHIY item code: LH-0182
Quick buying check
This page helps you check Burkert 8077 Oval Gear Flow Meter 567203 before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
The Burkert 8077 type oval gear flow meter (models 567203, 567206, and 567207) is described as follows: This Burkert gear flow meter is designed for measuring or batch control of high-viscosity liquids such as glue, honey, or oil.
It can be easily connected to German Burkert 8025, 8611, and 8619 transmitters for further functionality.
The German Burkert low-flow sensor is designed based on the oval gear principle, a proven and reliable method for measuring volumetric flow rate. Its design features a wide viscosity and flow range, excellent repeatability, and high accuracy.
Low pressure drop and high pressure resistance make it suitable for gravity and pump (online) applications and other fields.
All Burkert sensors are equipped with NPN pulse output and reed contact output with a 1-meter 5-core cable. The Burkert oval gear flow meter is suitable for high-viscosity liquids.
When used with various transmitters, it enables numerical display, monitoring, signal transmission, on/off control, and batch control functions.
The Burkert 8077 oval gear flow meter is used for oil flow; some customers also call it the Burkert oil flow meter.
The following are some commonly used Burkert flow gear meter models: Burker 8077 Oil Flow Meter G1/8" Stainless Steel Material, Capacity 1-100L/H, Order No.: 567203+567770; Burker 8077 Oil Flow Meter Order No.: 567206+567770, Stainless Steel Material, Capacity 2-120L/H; Burker 8077 Oil Flow Meter.

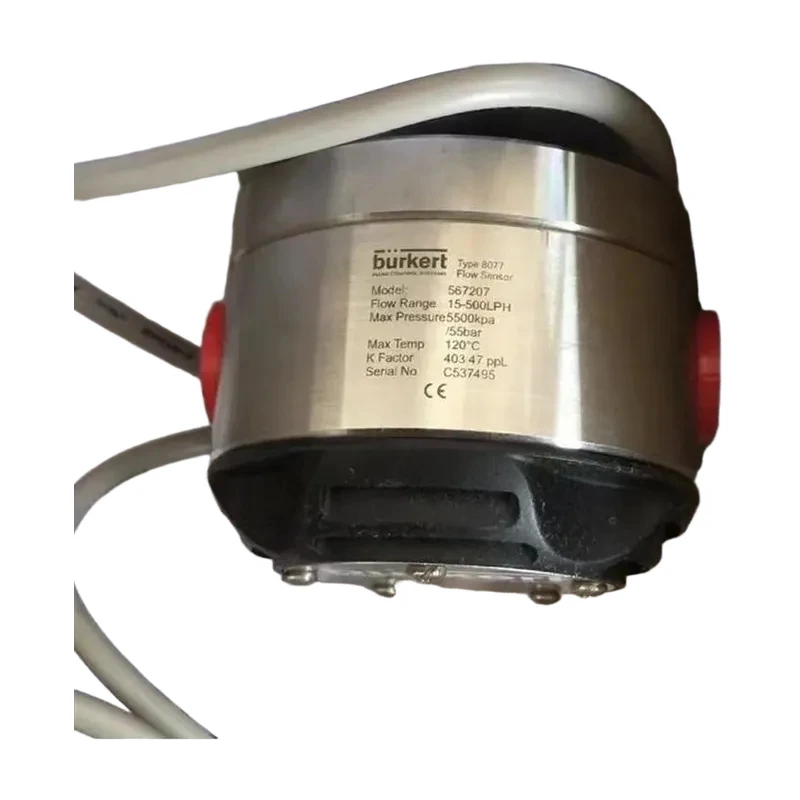

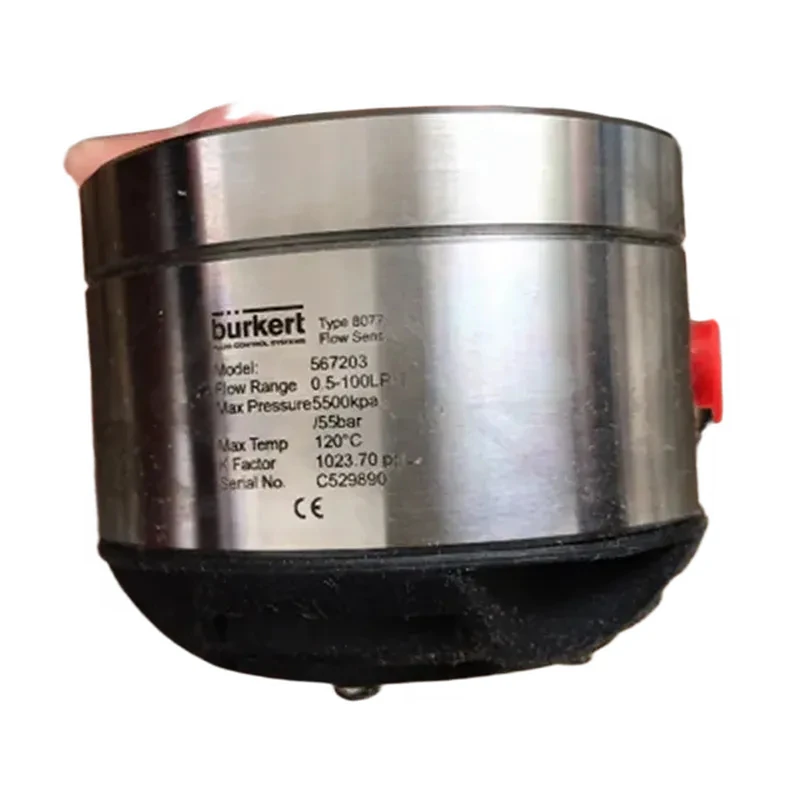

G1/4" Order No.: 567207+567770, Drive Power: 4.5-24VDC, Temperature Range: -20-120℃, Valve Body: Stainless Steel, Seal: PTFE, Capacity 50-350L/H, Interface: G1/4"; Actual product photos of the Burkert oval gear flow meters 567203, 567206, and 567207 upon arrival: Burkert Oval Gear Flow Meter Introduction:.
The Burkert oval gear flow meter (also known as a displacement flow meter or gear flow meter) is a type of positive displacement flow meter and is considered one of the most accurate flow instruments.
It utilizes a mechanical measuring element to continuously divide the fluid into individual, known volume portions, measuring the total flow volume based on the number of times the measuring chamber is repeatedly filled and discharged into each volume portion.
Burkert oval gear flow meters can be manufactured using various materials (cast iron, cast steel, 304 stainless steel, 316 stainless steel) and are suitable for flow measurement in industries such as chemical, petroleum, pharmaceutical, power, metallurgy, and food processing.
Burkert Oval Gear Flow Meter Working Principle: The German Burkert flow meter consists of a metering chamber and a pair of oval gears inside, forming a sealed crescent-shaped cavity with upper and lower covers (not absolutely sealed due to gear rotation) as the unit of measurement for one flow.
rate.
When the liquid to be measured enters the Burkert flow meter through the pipeline, the pressure difference between the inlet and outlet drives the pair of gears to rotate continuously, constantly delivering the liquid measured in the crescent-shaped cavity to the outlet.
The product of the number of rotations of the oval gears and four times the flow rate per cycle is the total flow rate of the liquid being measured (see diagram for principle).
The flow meter mainly consists of a housing, counter, oval gears, and couplings (magnetic couplings and axial couplings).
Burkert oil flow meter 8077 model Burkert oval gear flow meter order number: 8077 model Burkert oval gear flow sensor part number 567202 Type 8077 Flow rate | 4.5 V - 24 V | -20.00 °C - 80.00 °C | Oval wheel | Transistor | FEP/PTFE.
Burkert 8077 Oval Gear Flow Sensor, Part Number 567203: Type 8077, Flow rate | 4.5 V - 24 V | -20.00 °C - 120.00 °C | FEP/PTFE 8077 Burkert 8077 Oval Gear Flow Sensor, Part Number 567207: Type 8077, Flow rate | 4.5 V -.
24 V | -20.00 °C - 120.00 °C | Oval wheel | Transistor | FEP/PTFE 8077 Burkert 8077 Oval Gear Flow Sensor, Part Number 567209: Type 8077, Flow rate | 4.5 V - 24 V | -20.00 °C - 120.00 °C | Oval wheel.
| Transistor | FEP/PTFE Type 8077 Flow rate | 4.5 V - 24 V | -20.00 °C - 120.00 °C | Oval wheel | Transistor | FEP/PTFE LEHIY Industrial is a professional distributor of Burkert products from Germany.
We are the exclusive distributor of Burkert products in East and South China. Our products are sourced directly from the Burkert factory in Germany, handled through customs clearance and air freight, offering competitive pricing. Burkert flow meters and other products come with a one-year warranty.
Currently, Burkert's specialized fluid control systems are widely used across various industries, particularly in water/sewage treatment, beer and beverage, food processing, pharmaceuticals and medical equipment, disinfection and cleaning, and textiles and chemicals, where they offer significant advantages and a broad market prospect.
Furthermore, in demanding operating conditions such as satellites, space laboratories, nuclear reactors, and deep-sea exploration devices, Burkert products have demonstrated their accuracy and reliability.
Plain language sourcing guide for Burkert 8077 Oval Gear Flow Meter 567203
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
