Burkert flow meters, model 8032, model 00436475
LEHIY item code: LH-0176
Quick buying check
This page helps you check Burkert flow meters, model 8032, model 00436475 before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.

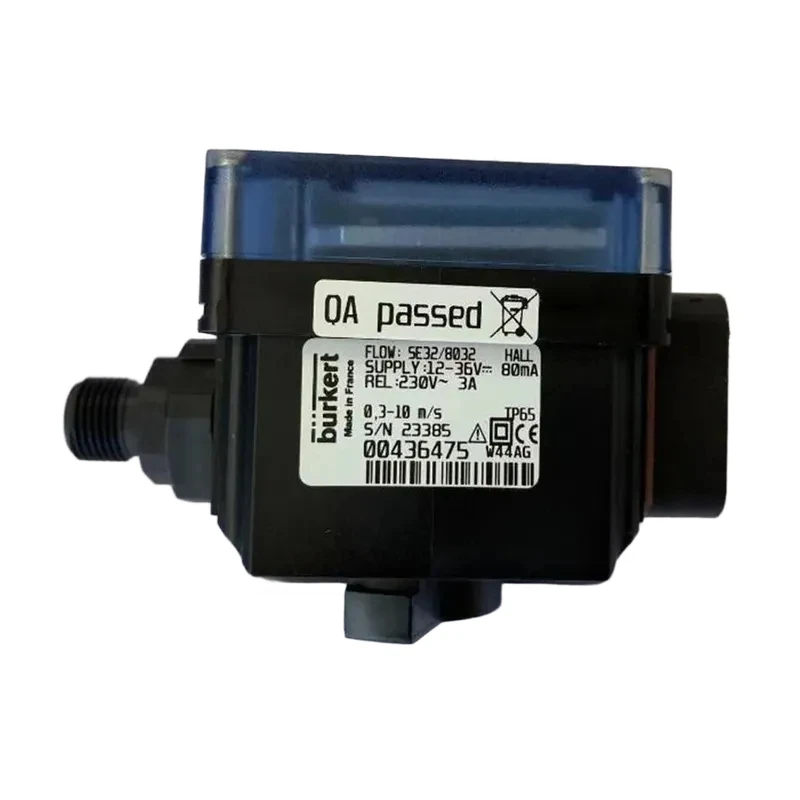

We are an authorized distributor of Burkert flow meters, model 8032 (00436475, 00423982), DN25 G1, with brass valve body fitting bases in stock! The Burkert SE32 00436475 flow meter is a commonly used model, and we have stock available for projects.
Different Burkert flow meters can be equipped with the 00436475 display module.

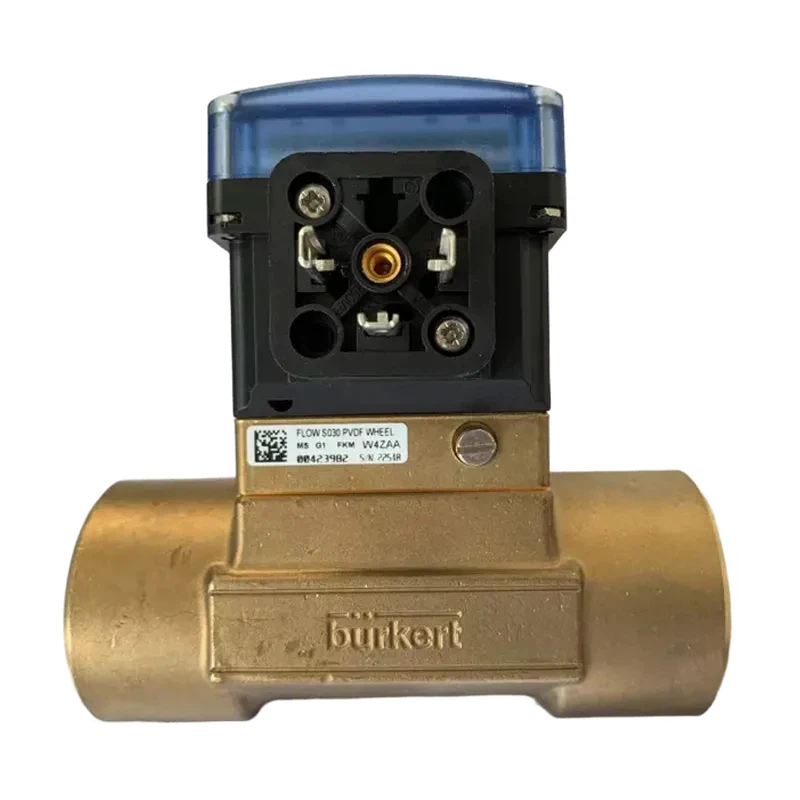

The fitting base selection depends on the pipe diameter, material, and interface type. The Burkert 8032 online turbine flow meter uses a snap-fit connection base, making installation and replacement simple and convenient. Burkert flow meter bases generally have a long product lifespan.
However, harsh operating conditions such as excessively high or unstable flow rates, valve vibration during opening and closing, improper installation, or air bubbles in the pipeline medium may damage the turbine components, including the PVDF impeller and ceramic shaft.
In such cases, simply replacing the turbine components will resolve the issue.
The 8032 model (00436475, 00423982) Burkert flow meter type description: Flow measurement device with display /- transmitter /- threshold detector. It can be used to measure pure, neutral, or corrosive liquids. Valves can be directly triggered via the switch output, allowing for a simple 2-point control loop within a monitoring system.

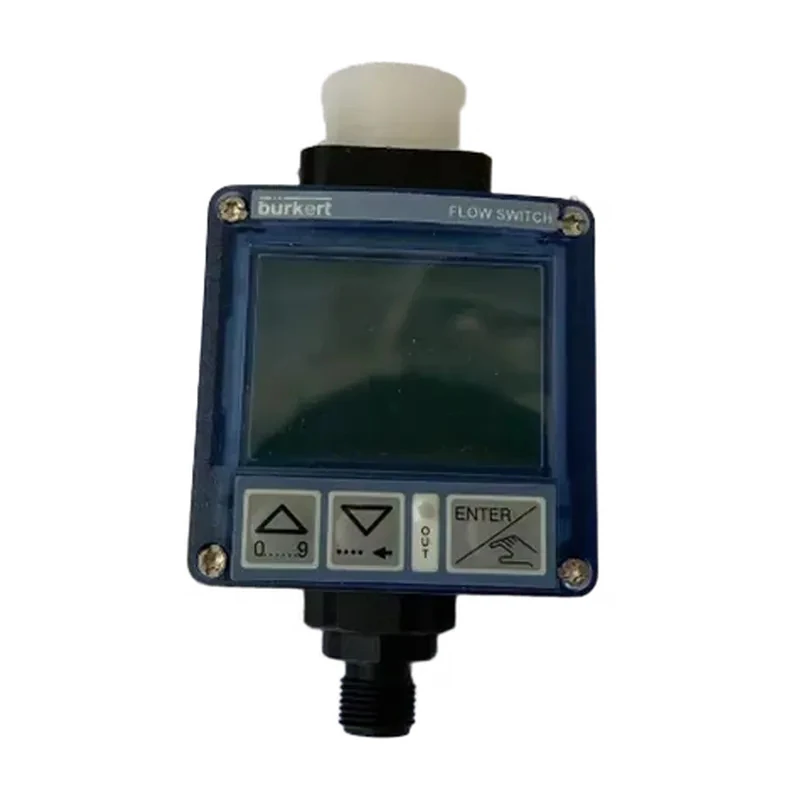

It can be operated directly via three switch buttons on the display. The compact 8032 model (transmitter SE32 + sensor accessory S030) can be configured without a switch output device (transistor or relay) or a current output device between 4...20mA. The separate model (transmitter SE32) features a customizable transistor output.
The compact model transmitter can be installed onto the INLINE sensor accessory via a snap-fit without the opening pipeline. monitoring, transmission, and two-point control with freely configurable switching points (transistors or relays). Automatic calibration is achieved through teaching. Output value: 4…20 mA.
Flow-threshold detector. Agent for Burkert 8032 flowmeters (models 00436475 and 00423982). In-stock images: Burkert turbine flowmeter 8032.
Some commonly used models: Burkert SE32 flowmeter module 00436473; German Burkert flowmeter valve body base DN40 G1 1/2 (brass model 423984; stainless steel model 424008); German Burkert 8032 flowmeter: SE32 electronic display module 436475 + S030 connector base clamp DN25 stainless steel 424036; Burkert 8032 flow switch + base.
+ plug 00436475 + 00423983 + 917116.
Burkert 8035 flow meter (Germany): SE35 flow meter module 00423916S030 flow meter connector base DN15 00424028 Burkert flow meter connector base 561013, corresponding rotor component model 551763, is for sterilization. Burkert flow meter connector base 443397, corresponding rotor component model 432305, is for water for injection.
Burkert flow meter rotor component\00551763\FLOW S030 SST\burkert\Burkert flow sensor base S030-PVDF-WHEEL-00423956 Burkert water flow meter impeller. Brand: Burkert. Model: FLOW S030 PVDF WHEEL PP D20 FKM W4XAL 00423956 S030 type 444023 flow meter base connector DN40 S030 brass connector 423984.
Rotary Flow Meter Brand: Bürkert Model: 8035+S030 Flow range: 700…2000 l/h, DN20 Voltage supply: 12…30VDC Output: 4-20 mA (2 wires)+ pulse Electrical connection: 2 cable glands Material: 1.4404 Size: TC 1.5" 50.5 Bürkert Flow Meter SE30 00449694 +S030 00554170 8036.
type Burkert Rotary Flow Meter (SE36+S030) Order No.: 00561881+00551791 S030 Flow Meter Base 00424033 Burkert S030 Turbine Base 552559 We source Burkert flow meters directly from the German manufacturer, offering competitive discounts and fast delivery.
We provide original OC orders and customs declarations. We are an authorized distributor of genuine Burkert flow meters at discounted prices, including the following series: 8011, 8012, 8030, 8031, 8032, 8035, 8036, 8056, and 8098. Welcome to inquire about pricing and technical issues.
Plain language sourcing guide for Burkert flow meters, model 8032, model 00436475
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Burkert | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
Burkert flow meters, model 8032, model 00436475
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
Burkert flow meters, model 8032, model 00436475 verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
