Burkert flow meter
LEHIY item code: LH-0172
Quick buying check
This page helps you check Burkert flow meter before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Burkert Flow Meter Distributor in Shanghai* Burkert Flow Meter Categories: Burkert Electromagnetic Flow Meters: Insertion electromagnetic flow meters, in-line solenoid valve flow meters (models 8041 and 8045); Burkert Turbine Flow Meters: Insertion flow meters, online flow meters, low-flow flow meters (models 8030, 8031, 8032, and 8035); Oval Gear.
Flow Meters: 8070, 8071, 8072, 8075, 8076, 8077, and S070; Ultrasonic Flow Meters: 8081; Flow Switches: 8010 and TCQ001 series; Burkert Sensors: 8022, SE12, SE30, and SE32.
Burkert flow meter accessories (SE35, SE36, SE39, SE56), rotor flow meters (S010, S012, S020, S030, S039, S077), surface acoustic wave flow meters (TAU003), thermal mass flow meters
- , differential pressure flow meters (8006, 8007, 8008, 8700, 8701, 8702, 8703, 8705, 8741, 8742, 8745, 8746), liquid analysis flow meters (pressure flow meters, temperature flow meters), controllers/sensors, sensor analysis rotor insertion type Burkert impeller flow meters. Advantages:
- Suitable for neutral, mildly corrosive, and low solids content liquids.

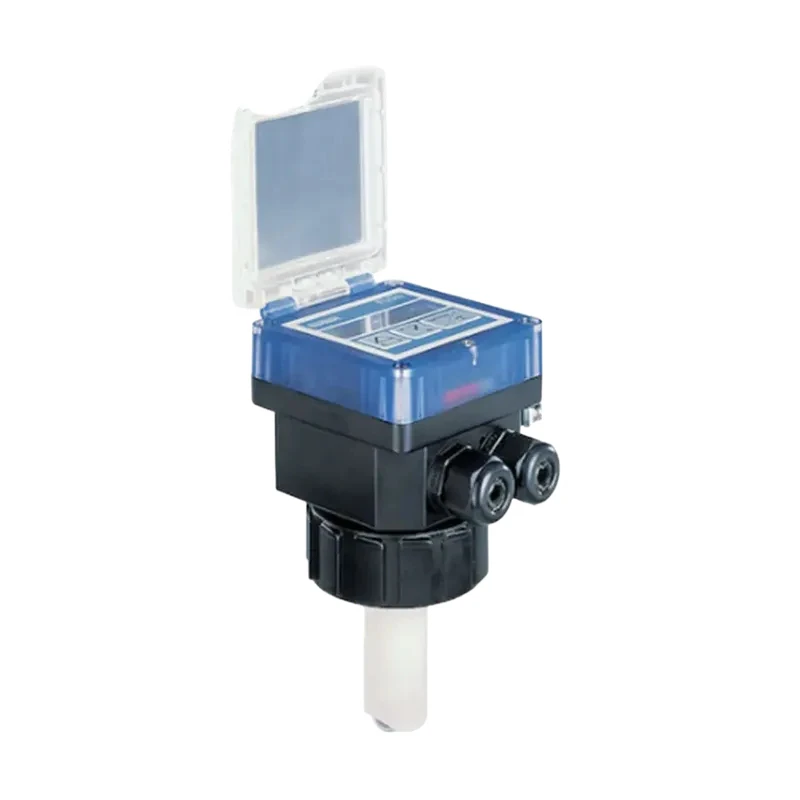

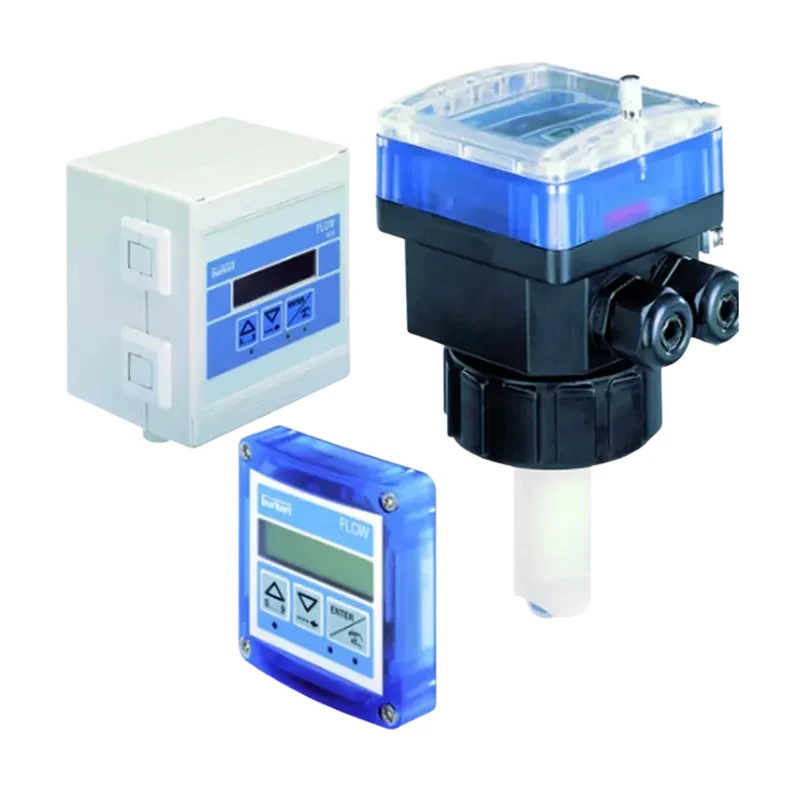

- Nominal sizes up to DN400. The Burkert 8025 flow meter can be quickly commissioned via automatic calibration. Description: The Burkert 8025 flow meter or batch controller is particularly suitable for neutral, mildly corrosive, and solid-free liquids.
- sensors with pulse output, relay, TTL, CMOS, or coil can be used with this transmitter. – A cabinet or wall-mounted transmitter: standard signal output matched with the "Low Power" version of the Burkert 8020/8030/SE30+S077 flow meter. The 8025 remote batch controller is also available in several versions: • Compact batch controller with turbine sensor. • For control cabinet and wall-mounted remote batch controllers, compatible with Burkert flow meters 8020/8030/8031/8041/SE30+S077 or other Burkert flow meters;
- sensors with open electrode outputs, reed relay outputs, TTL, CMOS, or coils can be used with this batch controller. Burkert 8025 flow meter features: Measuring tube sizes DN06 to DN400, high up to PN10;
- Displays flow and volume via two accumulators or metering units;
- Automatic calibration via Teach-In function;
- Checks inputs (batch controller) and all outputs without actual flow;
- Total and daily counters for calculating the quantity and number of times displayed (using metering equipment). agent for Burkert flow meters*, common Burkert flow meter faults and solutions:
I. When the flow rate of the Burkert turbine flow meter is zero, the flow display value is not zero or the display value is unstable.
- Poor signal line shielding grounding, interference from external electromagnetic fields;
- check grounding or eliminate the source of interference in the field.
- Pipeline vibration causes impeller shaking. Reinforce the pipeline or install supports before and after the flow meter.
- Leaking shut-off valve. Repair or replace the valve.
- Damaged internal circuit board or electronic components of the display cause interference. Use the "short-circuit method" or check one by one to find the fault point.
II. Burkert turbine flow meter flow display gradually decreases
- Filter blockage causes reduced flow. Clean the filter.
- Loose valve core on the pipeline reduces valve opening. Repair or replace the Burkert valve.
- Debris enters the Burkert turbine flow meter impeller or bearing, increasing resistance and slowing the rotation speed. Clean the Burkert flow meter and recalibrate.
III. Remove the debris.
Plain language sourcing guide for Burkert flow meter
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
