BURKERT turbine flow meters
LEHIY item code: LH-0169
Quick buying check
This page helps you check BURKERT turbine flow meters before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Burkert turbine flow meters are available for immediate distribution. These German Burkert turbine flow sensors, also known as Burkert turbine flow meters, are used for liquid flow. They primarily control the flow rate by sending signals from an electronic module to the turbine in the Burkert turbine flow meter base.
Burkert SE30/8030 12-36V/DC flow switch, order number: 00423913; Burkert S030 G1/2" turbine flow meter base, order number:. 00423980. Common Burkert turbine flow switches include the 8030, 8012, 8032, and 8035 series.
Burkert turbine flow meters and German Burkert turbine flow sensors all consist of two parts: an electronic module (meter head) and a turbine base.
Burkert flow switch electronic modules are available with or without a display. Burkert turbine bases are available in brass, stainless steel, PVDF, and PP.
Stainless steel, PVDF, and PP Burkert turbine bases are mainly used in high-standard industries such as food and pharmaceuticals, as well as in chemical environments with strong acids and alkalis, and in the photovoltaic industry. Advantages of the German Burkert turbine flow meter:
- High accuracy, among all flow meters, it belongs to the highest accuracy category;
- Good repeatability;
- No zero-point drift, good anti-interference ability;
- Wide rangeability;
- Compact structure;

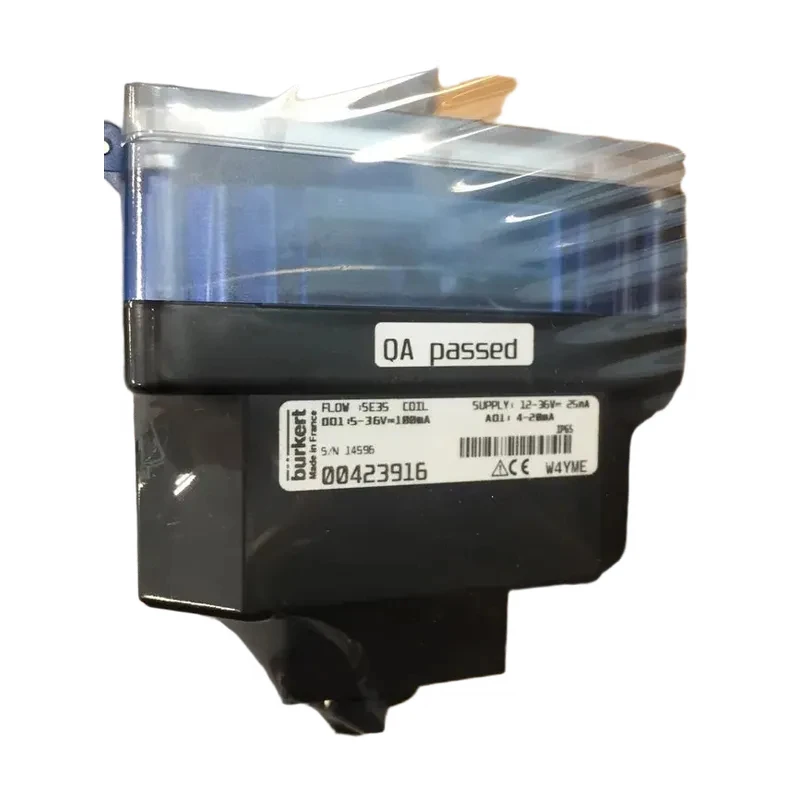

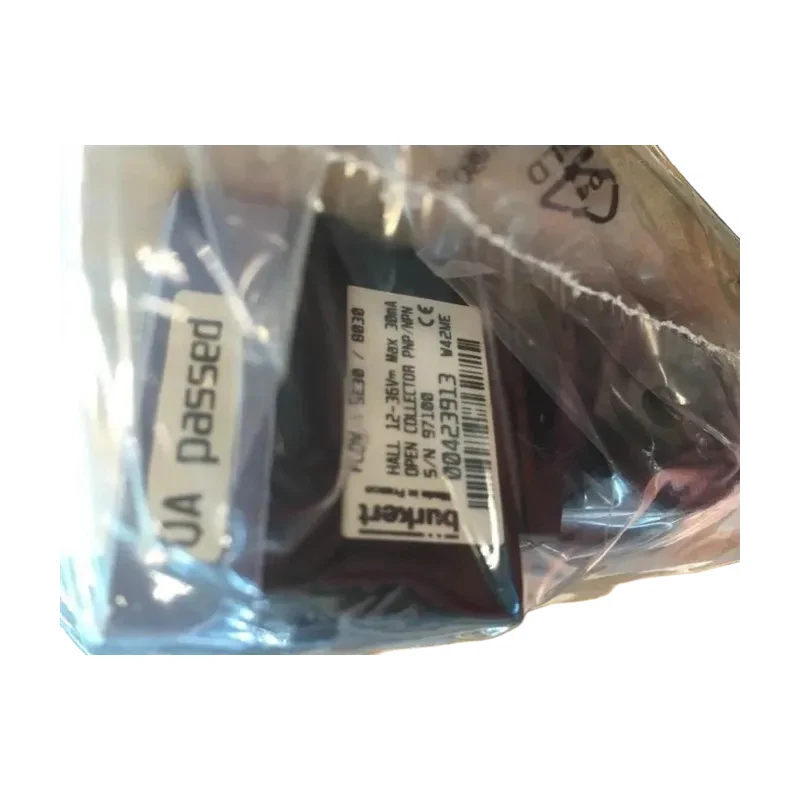

- Actual picture of BURKERT turbine flow meter and BURKERT flow switch 8030/SE30 00423913 00423916 00423985: BURKERT turbine flow meters use a turbine for measurement. It first converts the flow velocity into the turbine's rotational speed, then converts the speed into an electrical signal proportional to the flow rate. This type of flow meter is used to detect instantaneous flow and total accumulated flow. Its output signal is a frequency signal, which is easily digitized. In the diagram, the induction coil and permanent magnet are fixed together on the housing. When the ferromagnetic turbine blades pass the magnet, the magnetic resistance of the magnetic circuit changes, thus generating an induced signal. The signal is amplified and shaped, then sent to a counter or frequency meter to display the total accumulated flow flow. Simultaneously, the pulse frequency is converted to voltage via a frequency converter to indicate the instantaneous flow. The impeller's rotational speed is proportional to the flow rate, and the number of impeller rotations is proportional to the total flow volume. The turbine flow meter's output is a frequency-modulated signal, which not only improves the anti-interference capability of the detection circuit but also simplifies the flow detection system. Its range ratio can reach 10:1, with an accuracy within ±0.2%. The time constant of the turbine flow meter, with its low inertia and small size, can reach 0.01 seconds. BURKERT turbine flow meters from Germany are widely used in petroleum, organic liquids, inorganic liquids, liquefied gas, natural gas, and cryogenic fluids. BURKERT turbine flow meters are a major type of velocity flow meter. They use a multi-bladed rotor (turbine) to sense the average flow velocity of the fluid and deduce the flow rate or total flow. Below is an introduction to the characteristics and working principle of BURKERT turbine flow meters. BURKERT turbine flow meters generally consist of a sensor and a display unit, but can also be made as an integrated unit. Turbine flow meters, along with volumetric flow meters and Coriolis mass flow meters, are considered three types of flow meters with high repeatability and accuracy. As one type of flow meter, BURKERT products have developed into a large-scale, multi-variety, multi-series mass production line. Classified by instrument function, BURKERT turbine flow meters can be divided into two main categories: BURKERT turbine flow sensors/transmitters and intelligent integrated BURKERT turbine flow meters. repeatability, high accuracy can be achieved with frequent or online calibration, making Burkert flow meters a preferred choice for trade settlements;
- Output pulse frequency signal, suitable for total volume measurement and computer connection, with no zero drift and strong anti-interference capability;
- Ability to obtain very high frequency signals (3~4kHz) with strong signal resolution;
- Wide rangeability: up to 1:20 for medium and large diameters, and 1:10 for small diameters;
- Compact and lightweight structure, convenient installation and maintenance, and large flow capacity;
- Suitable for high-pressure measurement, requiring no holes in the instrument body, making it easy to manufacture high-pressure instruments.
- A variety of sensor types are available, and various types of sensors can be designed according to user's specific needs, such as cryogenic, bidirectional, downhole, and sand-mixing types;
- Burkert insertion flow meters can be manufactured, suitable for large-diameter measurements, with low pressure loss, low price, and continuous flow removal. Burkert turbine flow meters are easy to install and maintain. Technical parameters of the 8030 Burkert turbine flow meter: Measurement range: 0.5 - 1200 l/min;
- Flow velocity: 0.3 - 10 m/s;
- Accuracy: 1) Teach-In calibration (via split transmitter): ≤ ±0.5% of full scale;
- Standard K coefficient calibration: ≤ ±(0.5% of full scale + 2.5% of reading);
- Repeatability: ≤ ±0.4% of reading;
- Electrical connection: DIN EN 175301-803;
- Cable plug: 50 m long, shielded, large cross-section: 1.5 mm²;
- Protection class: IP65, relative humidity ≤ 80% when cable plug is in, non-condensing medium temperature PVC/PP connector 0-50℃/0-80℃ Stainless steel, brass or PVDF connector -15℃ to 100℃ Ambient temperature -15℃ to +60℃ (operating and storage) Maximum medium pressure PN10 (plastic connector) - PN16 (metal connector, PN40 available upon request) Medium viscosity / up to 300 cSt / Solid particle content up to 1% (particle size: 0.5 mm) Connector material PVC, PP, PVDF, brass, stainless steel Other materials Electronic module housing, cover PC Cable plug/sensor accessories PA/PVC, PP, PVDF, brass, stainless steel (1.4435/316L) Turbine PVDF Shaft and bearing/seal Ceramic (Al2O3) / FKM (EPDM optional) Inner diameter DN 06 - DN 65 Operating power (V+) 12-36 V DC ("Low Power" type from transmitter) Current Consumption: Pulse type with sensor ≤ 30 mA;
- Pulse "Low Power" type ≤ 0.8 mA Output: Frequency pulse type: Transistor NPN/PNP, open collector, up to 100 mA, frequency: 0-300 Hz;
- load cycle: 1/2;
- Pulse "Low Power" type: Transistor NPN/PNP, open collector, up to 10 mA, frequency: 0-300 Hz;
- load cycle: 1/2
Plain language sourcing guide for BURKERT turbine flow meters
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Burkert | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
