Burkert transmitters

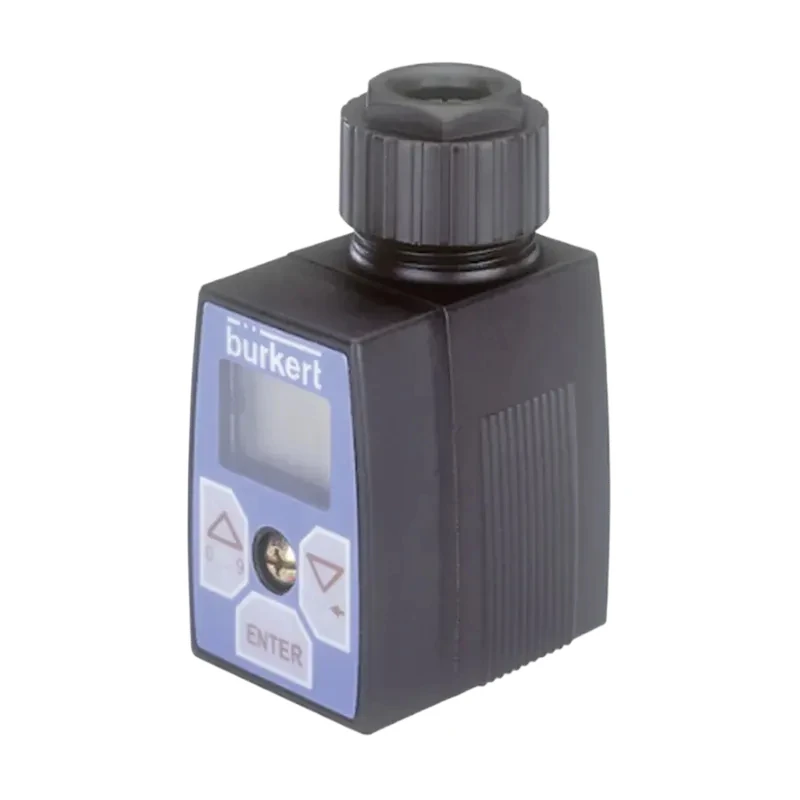

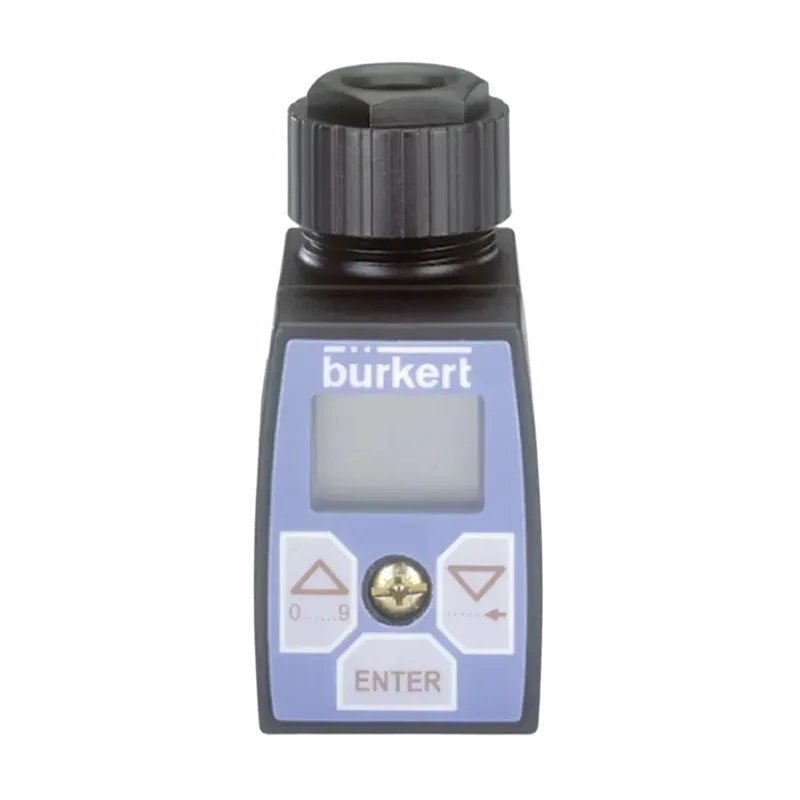

The Burkert 8022 transmitter* is a type 8022 flow transmitter/pulse distributor. The Burkert 8022 electronic module can function as a Burkert flow transmitter (with only "Low Power" pulse sensors, models 8020, 8030, and 8070) or a pulse distributor (with all sensor styles, models 8020, 8030, and 8070).

The module processes the Burkert sensor's output signal, displays the measured flow rate in mA, or sends it as a pulse to the signal output. When operating as a Burkert flow transmitter, the Burkert sensor's frequency signal is converted into a 4-20 mA signal (dual-wire operation).

When operating as a pulse distributor, the input frequency is converted into an adjustable output frequency. The operating unit allows switching between the two operating modes.

Burkert Transmitter Features: Burkert Transmitter Model 8022 Microcontroller-Controlled Electronics Two-Wire (4-20 mA)/Three-Wire (NPN/PNP) - Operation Pluggable to Flow Sensors 8020, 8030, or 8070 Removable Operating Unit.

The Burkert 8022 transmitter* is a compact, modular measuring instrument for measuring pH or oxidation-reduction potential (ORP): - pH: In clean, dirty, or liquids containing sulfides or proteins. - Oxidation-reduction potential (ORP): In clean, dirty, or liquids containing sulfides or proteins, as well as liquids with low conductivity.

The device contains a pH or ORP probe screwed into a sensor assembly integrating Pt1000. This component is housed within a housing and secured with a lock nut. This design simplifies installation and maintenance for Bürkert. Burkert displays are only used for commissioning, configuration, calibration, or displaying process values.

The 8202 model is available in the following specifications: - With three programmable outputs: two transistor outputs and one two-wire 4~20 mA current output - With four programmable outputs: two transistor outputs and two three-wire 4~20 mA current outputs.

The 8202 model converts measurement signals, displays individual measurement values from different measurement units (when the display is plugged in), and calculates the output signal, which is transmitted via one or two M12 connectors.

Burkert, a world-leading company in measurement, control, and regulation technologies, is a leading German manufacturer of solenoid valves.

Burkert's flow control products include: general-purpose solenoid valves, solenoid valves, pneumatic valves, process control valves, flow meters, pH conductivity ultrasonic pressure transmitters, and more.

With over 2,100 employees in 34 countries, we continuously strive to provide solutions for the dynamic challenges posed by engineering systems and water, steam, gas, and other media. We combine experience with the courage to think like you; it is this balance that leads to our success.

For sixty years, Burkert has been dedicated to developing, manufacturing, and operating fluid control products and systems in Germany and France, and has now grown into a multinational group with over 3,000 employees in Germany and France, and five production plants in more than 40 countries and regions worldwide,.

specializing in fluid control systems.

Burkert has long emphasized technological innovation and new product development.

Through targeted product design, modern processing, quality inspection, and meticulous market forecasting, it has developed six main product series: "General Solenoid Valve Systems," "Process Control Valve Systems," "Pneumatic Control Valve Systems," "Liquid Valve System Analysis," "Sensor/Transmitter Equipment," and "Controllers." Based on the compact design, excellent performance, and high-quality.

service of Burkert products, Burkert is a leader in the fluid control field.

Burkert Transmitter 8022 Model Selection and Ordering Table:
