Burkert solenoid valve 6281, Burkert 00221903
LEHIY item code: LH-0153
Quick buying check
This page helps you check Burkert solenoid valve 6281, Burkert 00221903 before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Burkert solenoid valve 6281 (Burkert 00221903) - Original factory source, ensuring authenticity. This Burkert/Burkert solenoid valve, model 6218, order number 00221903, is a 6281 servo-assisted diaphragm solenoid valve, G3/4 inch * 2/2 normally closed, EPDM sealed, brass body, 230VAC.
The Burkert 6281 solenoid valve features: . Servo-controlled diaphragm valve, nominal diameter up to DN50 . Vibration-resistant central spiral coil system . Damped closing and low noise . Easy-to-use manual operation components . Explosion-proof version.
The German Burkert 6281 solenoid valve is a servo-controlled diaphragm valve in the S.EV series.
Minimum differential pressure is always required for valve operation. Different diaphragm materials and action methods are available depending on the application. The standard brass body meets all European drinking water requirements. Anti-dezinc brass is available for other markets. (with stainless steel housing NEMA 4X).

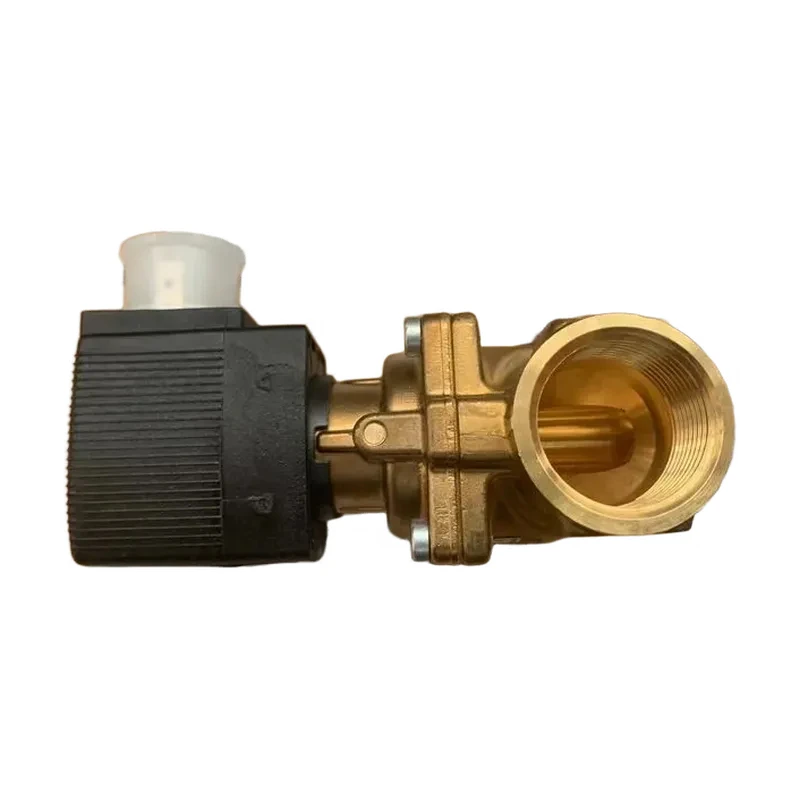

The Burkert 6281 solenoid valve 221903 is shown in the image below.
The main parameters of the Burkert 6281 solenoid valve are as follows: Material: Housing: Brass (compliant with DIN EN 50930−6), Stainless Steel (dezinc-resistant brass available upon request) Valve Interior: Stainless Steel, Brass, Plastic (PPS) Seals: NBR, EPDM, FKM Nominal Diameter: DN10…DN50 Coil (Heat Resistant) Insulation Class: Polyamide.
B, Epoxy H Rated Operating Mode: 100% Continuous Operation Switching Time: 0.1…4 seconds (depending on nominal diameter and differential pressure) Voltage: 024/DC, 024/UC, 024/50…60 V/Hz, 230/UC, 230/50…60 V/Hz Voltage Tolerance ±10% Working Medium NBR Neutral medium, such as compressed.
air, water EPDM Oil-free medium, hot water, acetone, water-containing alkali FKM Hot air, tetrafluoroethylene solvent Medium Temperature NBR -10…+80 °C EPDM -30…+90 °C (with epoxy coil, maximum +100 °C) FKM 0…+90 °C (with epoxy coil, maximum +120 °C) Directives CE, EAC Protection Rating IP65 With.
device socket, cable connection and junction box mounting position Any, actuator-up recommended Ambient Temperature (maximum) +55 °C Our company has the advantage of supplying Burkert solenoid valve 6281 and Burkert 00221903.
Original factory purchase, ensuring genuine products. For product details about Burkert solenoid valve 221903, please contact our sales department.
Plain language sourcing guide for Burkert solenoid valve 6281, Burkert 00221903
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Burkert | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
