Burkert turbine flow meter rotor component 00432304 (brass version)
LEHIY item code: LH-0145
Quick buying check
This page helps you check Burkert turbine flow meter rotor component 00432304 (brass version) before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.

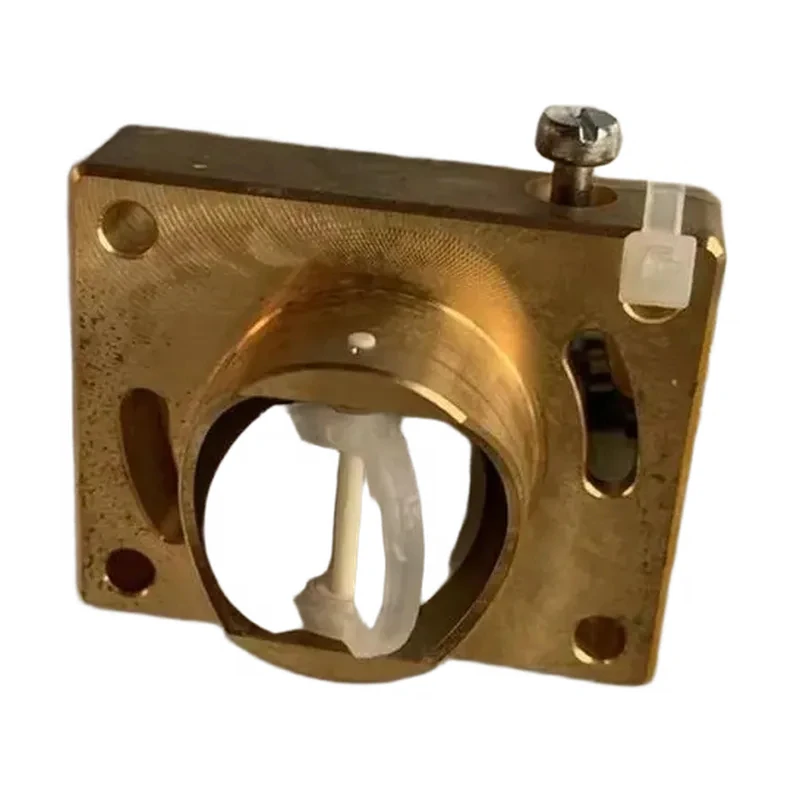

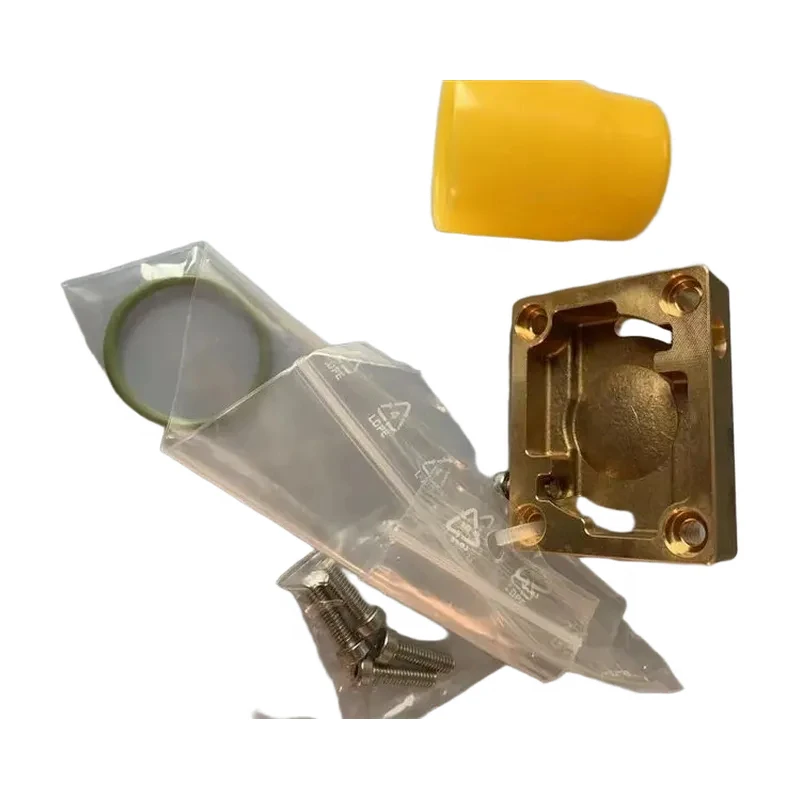

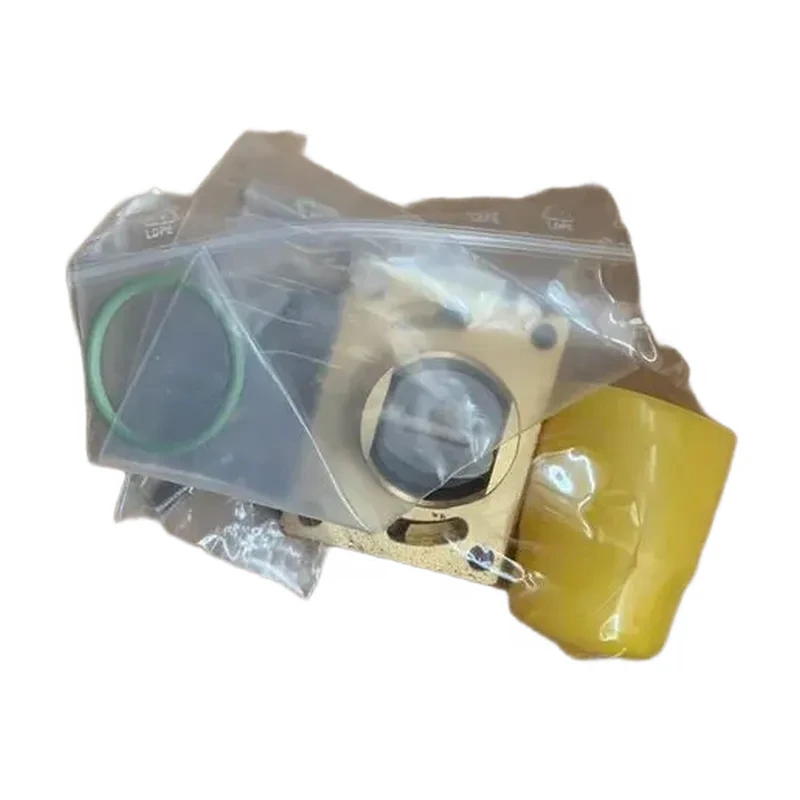

Burkert turbine flow meter rotor component 00432304 brass type FLOW S030 BRASS FKM seal ring, German Burkert flow meter DN20 base repair turbine parts SET8 brass FKM seal PVDF white turbine. 00432304.
Burkert turbine flow meters models 8030, 8032, and 8035 all use turbine rotors to measure liquid flow rate and velocity.
Due to unstable installation location and flow velocity, Burkert turbine rotor components are prone to damage, including ceramic shaft breakage and PVDF impeller being washed away.
The Burkert turbine flow meter connector base S030 type sensor connector has a built-in impeller for measuring flow rate and is specifically designed for measuring neutral, slightly corrosive, and solid-free liquids.
The compact sensor connector (S030 type) must be used with a Bürkert transmitter (SE30, SE30 Ex, SE32, SE35, SE36, or 8611 type), which can be easily and quickly connected via a bayonet lock. Bürkert's "in-pipe quarter-turn" technology is a design that ensures leak-free operation.
The rotation of the Bürkert impeller (a permanent magnet in the blades) transmits a signal through the transmitter's sensitive element, penetrating the sensor connector wall for non-contact detection. Installing or removing the transmitter does not require opening the pipeline or interrupting the ongoing process.
Bürkert S030 turbine flow meter connector characteristics DN 06…DN. 65. We offer a variety of different materials and process interfaces so you can choose the appropriate specification for your specific application and process conditions.
Closed-loop piping systems, where the sensor is part of the connector, utilize quarter-turn technology (Bürkert bayonet lock).
Transmitters can be used for display, monitoring, signal transmission, 2-point control, or quantitative control. Images of Burkert turbine flow meter rotor components 00432304 (brass) and 00551763 (stainless steel) are available. Other Burkert turbine rotor components include 551764 and 432305.
The turbine rotor component model 00551763 corresponds to Burkert turbine flow meter bases 00561013, 00554169, and. 00553022. These are used for sterilization and are commonly used by pharmaceutical companies.
Burkert flow meter base 00562495 is the complete model number of the S030 base (the corresponding rotor accessory SET8 model is 551764).
Regarding recommendations for selecting Burkert flow meters for purified water or water for injection equipment: Burkert turbine flow meters are strictly prohibited from passing air bubbles, especially at the impeller. Avoid air bubbles and start-stop oscillations.
(In fact, if there are air bubbles in the pipeline, any flow meter will be inaccurate.) If air bubbles are generated at the front end of the equipment pipeline, it is recommended to use a Burkert electromagnetic flow meter (except for deionized water, which is not recommended).
Electromagnetic flow meters are at least inaccurate, and turbine flow meters are particularly problematic; in short, they wear out turbine parts too much, either the impeller is damaged or the turbine shaft breaks!
The main reason why the turbine shaft of the SET8 rotor accessory on the Burkert turbine flow meter's S030 base is prone to breakage is: If the Burkert flow meter turbine shaft keeps breaking, it's not a shaft problem; it shouldn't break so quickly normally.
There is definitely a problem with the user's pipeline!
The main issues are: impurities and small air bubbles in the medium. Another possibility is that the rapid start-stop cycle at the rear of the pipeline can cause water hammer due to strong reverse impact, leading to turbine shaft breakage.
Burkert turbine flow meter rotor component 00432304 technical parameters: Features Typ SET8 Typ 2 S030 Port connection not applicable Material brass Seal material FKM Sensor PVDF paddlewheel with inductive coil function sensor without Design without Voltage without Frequency without Output signal standard
Plain language sourcing guide for Burkert turbine flow meter rotor component 00432304 (brass version)
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
