Burkert flow switches, models 8032 and 8035.
LEHIY item code: LH-0144
Quick buying check
This page helps you check Burkert flow switches, models 8032 and 8035. before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.

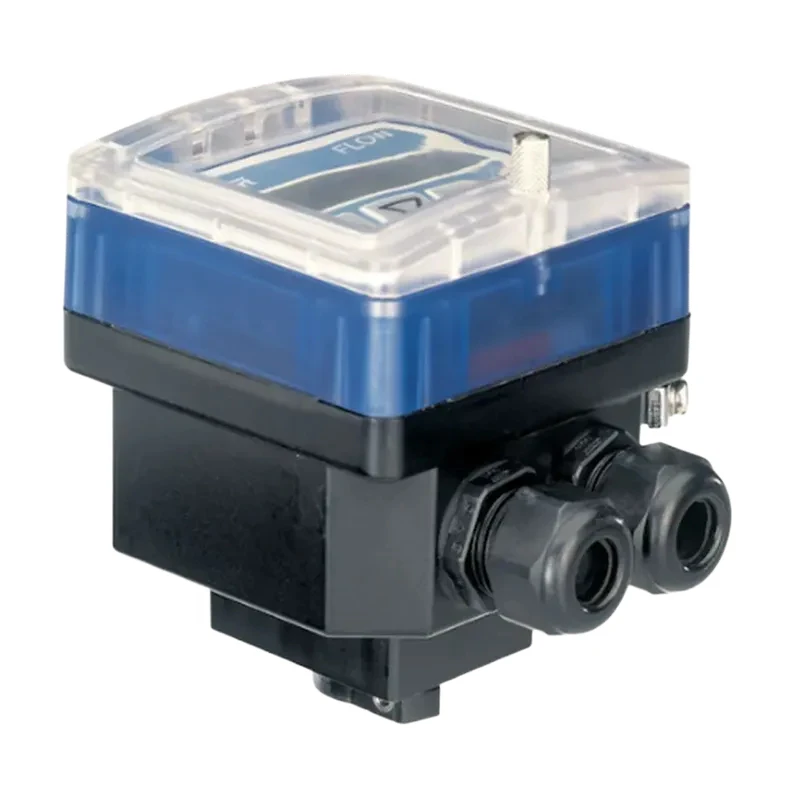

distributor of Burkert flow switches, models 8032 and 8035. The Burkert 8032 flow switch is suitable for liquid flow control in various applications. Type 8032 - Flow measurement device with impeller/flow transmitter. Burkert online flow switch 8032 type description: Flow measurement device with display / - Burkert transmitter / - Threshold detector.
Can be used to measure pure, neutral, or corrosive liquids. Valves can be directly triggered via the switch output, allowing for a simple 2-point control loop within a monitoring system. It can be operated directly via three switch buttons on the display.
Compact size: The Burkert 8032 flow switch (transmitter SE32 + sensor accessory S030) can be configured without a switch output device (transistor or relay) or a current value output device between 4...20mA. Detachable size (Burkert transmitter SE32) features a customizable transistor output.
The compact size Burkert transmitter can be installed onto the INLINE sensor accessory via a snap-fit without opening the pipeline.
Bürkert Flow Switch 8032 Features: Provides measurement display, monitoring, transmission, and two-point control on a single device; freely configurable switching points (transistor or relay); automatic calibration via teach-in; process value output: 4…20 mA; flow-threshold detector.
Bürkert Flow Switch 8035 - Online Turbine Flow Meter or Batch Controller Type Description: The 8035 Bürkert flow meter or batch controller is particularly suitable for neutral, mildly corrosive, and solid-free liquids.
The Bürkert flow meter or batch controller consists of a compact Bürkert sensor (S030) with a turbine and a transmitter (SE35), which are easily connected via a bayonet connector. The Bürkert-designed assembly system makes installation of all accessories applicable to DN06-DN65 simple.
Flow meters with Bürkert turbine sensors are available in two versions: standard signal output – or battery-powered display version/accumulator version without output.
Burkert Flow Switch 8035 Features: Measuring tube sizes DN06 - DN65, up to PN16; Displays flow and volume via two accumulators or metering units; Automatic calibration via calibration Teach-In function; Checks inputs (batch controller) and all outputs without actual flow; Total and daily counters for calculating the quantity and.
number of times displayed (using metering equipment).
Agent for Burkert Flow Switches 8032 | 8035; Burkert SE32 Electronic Module and Burkert S030 Connector Ordering List: 8032 Burkert Flow Switch SE32 Electronic Module Ordering List 436474 434871 436473 436475 440500 440501 444699; Burkert Flow Switch 8032 Accessory Ordering List: 5-pin M12 jack connector with plastic threaded locking.
ring 917116 5-pin M12 connector with molded cable (2 meters, shielded) 438680; 4-pin M12 connector with plastic threaded locking ring 448856; 4-pin M12 connector with molded cable (2 meters, shielded) 448857; 8-pin M12 connector with plastic threaded locking ring 444799; 8-pin M12 connector with molded.
cable (2 meters) 444800; 2-pin M12 connector for flat cable (for ASi interface only) 440653; 8032 type Baode flow switch brass or stainless steel threaded connector (see S030 connector ordering list for dimensions); 8032 type Baode flow switch plastic connector adhesive, solder, and grease fitting connectors (see S030 connector.
ordering list for dimensions); 8032 type Baode flow switch S030 type online connector ordering list: Standard PVC connectors with adhesive sleeves and oil-lubricated connections; PP and PVDF connectors with welded sleeves and oil-lubricated connections.
PVC connector order numbers: 424938, 424939, 424940, 424941, 423942, 424943. PP connector order numbers: 424956, 424957, 424958, 424959, 424960, 424961. PVDF connector order numbers: 424968, 424969, 424970, 424971, 424972, 424973. Brass and stainless steel connectors, G internal thread interface: 423980, 423981, 423982, 423983, 423984, 423985.
424004, 424005, 424006, 424007, 424008, 424009. Stainless steel fittings, ISO 4200 welded joints 424028, 424029, 424030, 424031, 424032, 424033. Stainless steel fittings, ISO 2852 three-clamp type fittings 424034, 424035, 424036, 424037, 424038, 424039. Stainless steel fittings, DIN 2501 flange fittings 424040, 424041, 424042, 424043, 424044, 424045.
Plain language sourcing guide for Burkert flow switches, models 8032 and 8035.
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Burkert | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
Burkert flow switches, models 8032 and 8035.
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
Burkert flow switches, models 8032 and 8035. verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
