Burkert proportional solenoid valve 2875 with 8605 controller
LEHIY item code: LH-0132
Quick buying check
This page helps you check Burkert proportional solenoid valve 2875 with 8605 controller before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
We are a Shanghai-based distributor of Burkert proportional solenoid valves, specifically the 2875 model with the 8605 controller. Our Burkert proportional solenoid valves (model 2835) are discontinued, and the 2875 model is their replacement. All Burkert proportional valves and controllers are sourced directly from the German manufacturer, Burkert.
We guarantee authenticity; a tenfold refund will be given for any counterfeit products. For all Burkert products, including solenoid valves, proportional valves, and flow meters, we provide Burkert factory shipping lists, certificates of origin, and import customs declarations. We also offer a one-year warranty!
Here are some Burkert proportional solenoid valve 2875 models paired with the 8605 controller: The Burkert proportional solenoid valve 2835 is discontinued, replaced by the 2875 model, 176005 (replacement number 00255726), paired with the 8605 controller 178354 (178354 discontinued, replacement number 316530).
The 8605 controller 178364 is discontinued, replacement number 316533. Burkert proportional solenoid valves can be controlled using either the Burkert 8605 controller or the 8611 universal controller.

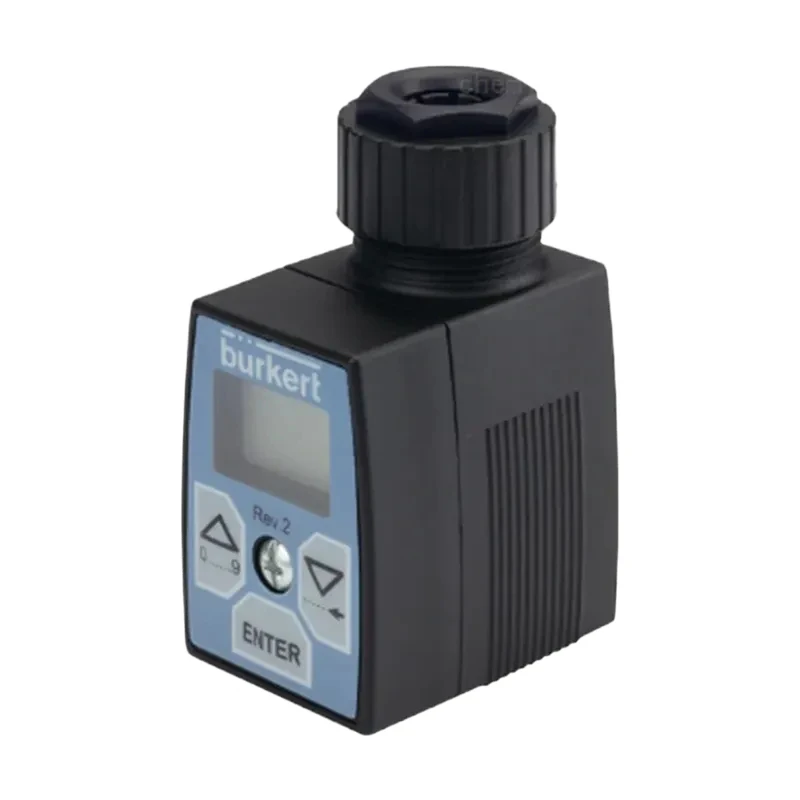

In principle, the Burkert 8605 controller converts the analog setpoint signal at the input into a corresponding pulse-width modulated signal output, which is used to control the proportional solenoid valve.
Furthermore, the Burkert 8605 controller features current regulation to compensate for coil heating, adapts the minimum and maximum coil current to the applied pressure conditions, zero-point cutoff, and ramp functions.

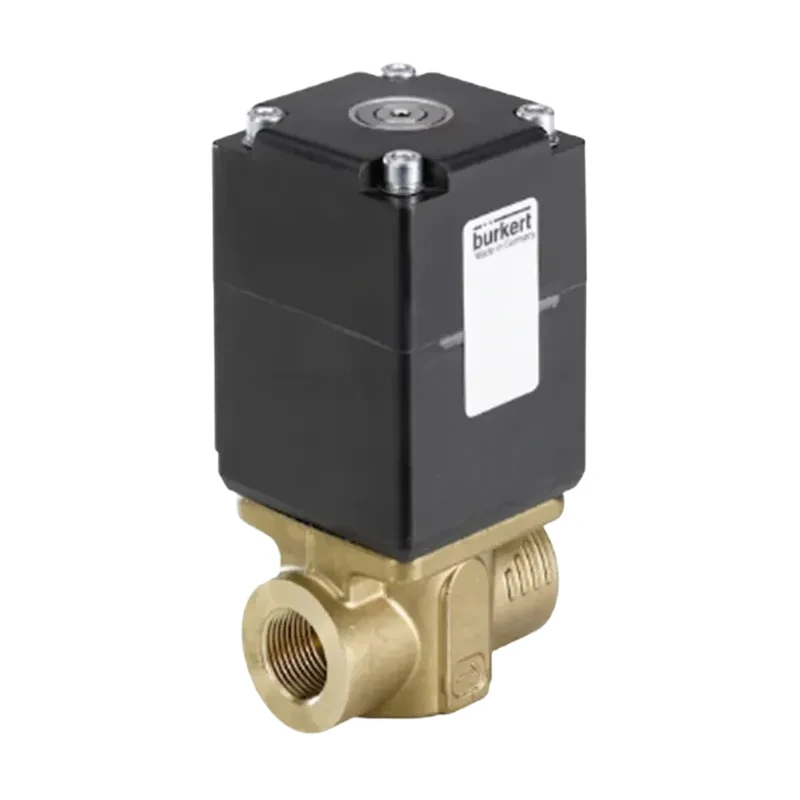

The 8611 general-purpose controller can control process values such as temperature and frequency, or output PWM signals to control Burkert proportional solenoid valves. valve by achieving a balance between the spring force and the electromagnetic force under any coil current.
The magnitude of the coil current or the electromagnetic force affects the plunger and stroke valve opening, and the valve opening (flow rate) and coil current (control signal) have an ideal linear relationship. In a direct-acting Burkert proportional solenoid valve, the flow direction is downwards from the valve seat.
The medium flows in from below the valve seat, and its force is in the same direction as the electromagnetic force but opposite to the spring force. Therefore, it is necessary to set the maximum and minimum flow rates corresponding to the operating range (coil current) under the operating conditions.
Burkert proportional solenoid valves from Derek Fluids are always closed when power is off (NC, normally closed type). The distributor offers the Burkert 2875 proportional solenoid valve with an 8605 controller. Key characteristics of Burkert proportional solenoid valve positioning performance include:
- Hysteresis: The maximum difference in output signal when the input signal changes from small to large and from large to small, expressed as a percentage of the maximum output signal.
- Response Sensitivity: The difference in minimum setpoint value that causes a change in output signal, expressed as a percentage of the maximum output signal.
- Repeatability: The maximum deviation of the output signal when the same input signal is applied repeatedly in the same direction.
- Control Ratio: The ratio of the Kv value at the maximum and minimum opening (see calculation for proportional valves). The control ratio of Burkert proportional solenoid valves can reach 1:500. Features of the Burkert 8605 controller: - Microprocessor-controlled electronic circuitry - Temperature compensation for coil heating via internal current control - Adjustable rise time - Adjustable zero-point cutoff - Display and operation buttons - Switchable standard input signals - RS 232 or RS 485 interface (with auxiliary module) - Infinitely adjustable PWM frequency - Easily adapts minimum and maximum current (at valve start-up and full valve opening) to actual pressure conditions.
Plain language sourcing guide for Burkert proportional solenoid valve 2875 with 8605 controller
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
