Burkert diaphragm valve sanitary grade diaphragm pad distributor
LEHIY item code: LH-0122
Quick buying check
This page helps you check Burkert diaphragm valve sanitary grade diaphragm pad distributor before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
We are an authorized distributor of Burkert sanitary diaphragm valves and Burkert pneumatic diaphragm valves from Germany. Burkert diaphragms are available at a 45% discount! Delivery time from Germany is 2 weeks, plus air freight and customs clearance, bringing the total delivery time to China to 4 weeks.
For urgent needs by pharmaceutical companies, we can expedite delivery to China within 2 weeks. We can provide Burkert diaphragm material certificates from the Burkert factory, proving that Burkert diaphragm valves/diaphragms are suitable for food and pharmaceutical applications. Burkert dual diaphragm valves are suitable for industrial and sanitary applications.
They are widely used in equipment such as biopharmaceuticals and steam sterilization. be used with Burkert industrial and sanitary dual diaphragm pumps.

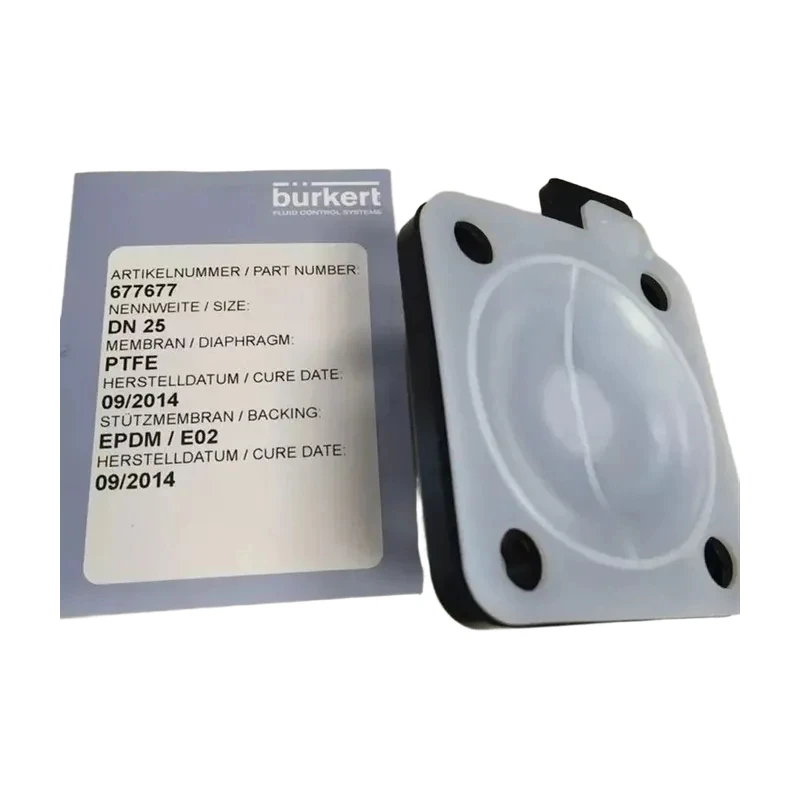

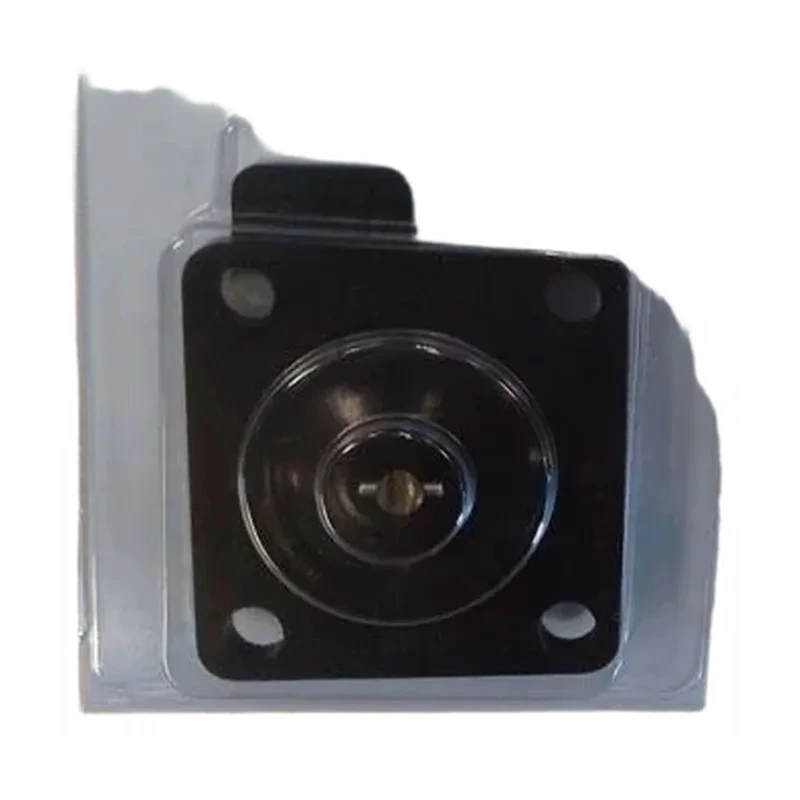

Burkert sanitary diaphragm valves use PTFE/EPDM composite diaphragms. Burkert diaphragm valve diaphragms and gaskets are available in sizes from DN8 to DN100. Burkert diaphragm materials primarily include PTFE (polytetrafluoroethylene), EPDM (ethylene propylene diene monomer), FKM (fluororubber), and NBR (nitrile rubber).
The Burkert diaphragm series covers five basic types, each optimized to meet specific requirements in certain situations. Burkert EPDM single diaphragms, made from ethylene propylene diene monomer rubber, are synthetic rubbers, ie, elastomers, with wide applications.
This is mainly due to their excellent resistance to temperature and ozone effects, as well as their overall ability to withstand weathering. Such Burkert diaphragms also exhibit good resistance to polar substances and steam.
Burkert double diaphragms, made from EPDM rubber, can easily handle hot and cold water, alkaline media, and weak acids.
This means that Burkert diaphragms made from this material are particularly suitable for applications in sanitary processing where steam sterilization and oxidizing media are necessary. BURKERT Dual Diaphragm Material: The immersion end is made of FDA-compliant PTFE material, and the air end is made of FDA-compliant EPDM material.
Operating Temperature Range: 14°F to 180°F (-10°C to 82°C). Burkert Diaphragm Safety: Complies with FDA 21 CFR 177.1550 (PTFE) and FDA 21 CFR 177.2600 (EPDM) standards.
We recommend against using these Burkert diaphragms with mineral media, vegetable oils, vegetable and animal fats, aromatic or aliphatic carbohydrates, halogenated solvents, or concentrated acids, as these substances can damage the diaphragm valve. When the BURKERT diaphragm valve leaks media, caution is advised as it may cause injury.
Disassembling the equipment under pressure is extremely dangerous due to sudden pressure release or media spillage. Loose housing screws may cause media leakage during reassembly. Burkert Diaphragm Disassembly/Removal Procedure - Before disassembly, shut off the pressure and bleed the piping. -*Bleed the piping.
- During reassembly, check the tightening torque of the housing screws. Replacing a Burkert PTFE or EPDM diaphragm with a nominal diameter of DN8: → Unlatch the PTFE diaphragm and then attach the new EPDM diaphragm.
Nominal diameters DN15 and DN20: → Loosen the PTFE diaphragm clamp and then insert the new EPDM diaphragm.
Nominal diameters DN25 to DN50: → Loosen the PTFE diaphragm clamp. → Insert the insert into the pressure unit. → Place and screw in the EPDM diaphragm. The Burkert 2031 Compact externally piloted diaphragm valve includes a pneumatic actuator, diaphragm, and cast stainless steel two-way valve body.
The actuator is supplied standard in PA polyamide.
This Burkert diaphragm valve features optimized flow characteristics, high flow rate, and is suitable for various contaminated, viscos, or dirty media. seals and isolates the medium from the actuator - suitable for contaminated, viscous or dirty media.
Plain language sourcing guide for Burkert diaphragm valve sanitary grade diaphragm pad distributor
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Burkert | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
Burkert diaphragm valve sanitary grade diaphragm pad distributor
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
Burkert diaphragm valve sanitary grade diaphragm pad distributor verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
