Burkert pneumatic valves, angle seat valve 001248 DN25
LEHIY item code: LH-0117
Quick buying check
This page helps you check Burkert pneumatic valves, angle seat valve 001248 DN25 before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
We are an authorized distributor of Burkert pneumatic angle seat valves, model 001248 DN25 G1, currently in stock and available for steam use. Limited stock available at a low price while supplies last! Authentic quality guaranteed.
Specifications for the Burkert 2000 model angle seat valve 00001248: Burkert G1 model pneumatic angle seat valve, 2/2 inch normally closed, DN25, PTFE seal, gunmetal body, flow type 2000 / product number. 1248. Limited stock available.
This 00001248 Burkert angle seat valve is an older model that is still in production and supply.
The German Burkert 2000 pneumatic angle seat valve is widely used in the food and beverage, biopharmaceutical, and other industries.
For Burkert angle seat valve selection parameters, please provide: valve diameter DN15-65, normally closed or normally open circuit function, connection type (G-thread, welding, clamp, flange), valve body material (brass or stainless steel), medium (gas or liquid), and actuator type (single-acting or double-acting).
The following Burkert 2000 pneumatic angle seat valve models are still in stock; pre-order now! Burkert angle seat valves in stock for liquid applications: DN15/001130, DN25/001131, DN25/007225, DN25/186439, DN32/00178699, DN40/178695.
Burkert angle seat valves in stock for pneumatic applications: DN15/001252, DN25/001248; DN25/001137 (stainless steel); DN40/001250, DN40/001400 (stainless steel); DN50/001251.
Note: The German Burkert 2000 series angle seat valves are generally compatible with both liquid and pneumatic applications with a valve diameter of DN25 or less and a pressure of less than 8 kg.
Introduction to the German Burkert 2000 series angle seat valves: The externally controlled Burkert angle seat valve from Germany consists of a pneumatic piston actuator and a two-way valve body. Depending on the ambient temperature, two different actuator materials (PA and PPS) are available.
A proven, self-adjusting spindle seal ensures high sealing performance.
The flow-friendly two-position two-way valve body, constructed of brass or precision-cast stainless steel, enables high flow rates. Various accessories can be added to this robust, maintenance-free Burkert pneumatic angle seat valve for position display, travel limiters, or manual emergency operation.

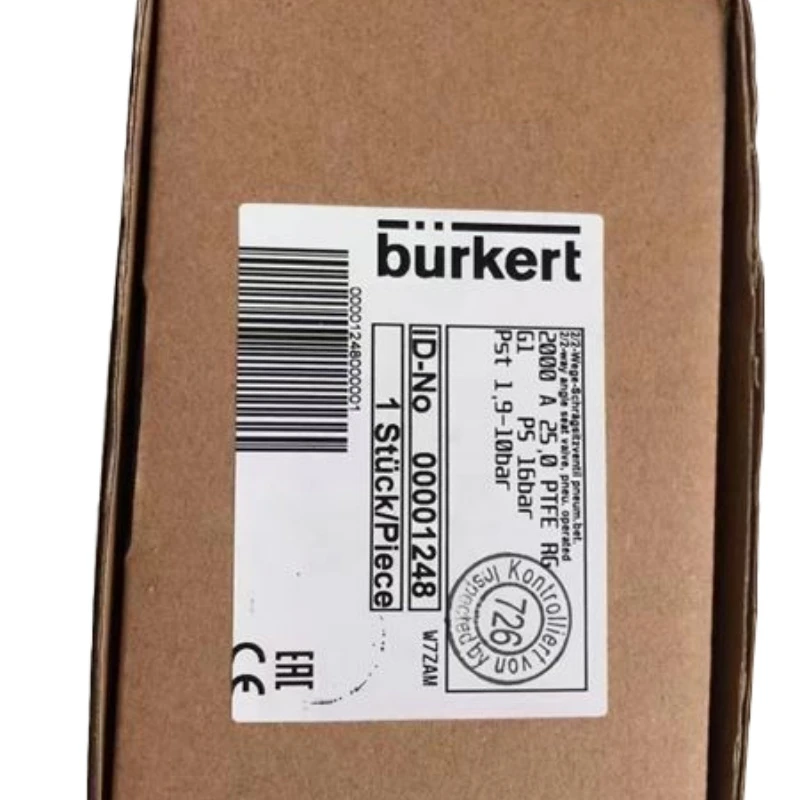

Burkert 2000 Angle Seat Valve (Agent) Features: Stainless steel or gunmetal housing with bushing, clamping, or welded fittings. High flow rate and long service life. Burkert Angle Seat Valve 001248 in stock. High-definition photos of the arriving product.
Burkert Angle Seat Valve 001248 Features and Technical Attributes: Typ 2000 Control function closed by spring force Paths/positions 2 ways / 2 position Orifice size 25mm (1") Seal material PTFE Material gunmetal Port connection G 1 threaded port Actuator version PA-actuator, MS-threaded bushing at connection of pilot.
air Actuator size Dm 63mm Special feature body with amplified mounting length flow above seat mounted with V-ANTR.
Burkert Angle Seat Valve 001248 DN25 G1 In Stock: Burkert 2000 Type Pneumatic Angle Seat Valve
- - Steam Available. Technical Attributes: Pressure (bar) (Max) 16;
- Control Pressure (Min) 1.9;
- Control Pressure (Max) 10;
- Required Control Pressure (bar) 2.8;
- Medium Temperature (°C) (Minimum) -10;
- Medium Temperature (°C) (Max) 185;
- Ambient Temperature (°C) (Minimum) -10;
- Ambient Temperature (°C) (Max) 55;
- KV Value (M*3/H)
- Advantages: In Stock, Burkert 2000 Type Angle Seat Valve - Networkable and Can Be Combined with Other Burkert Products. The Burkert 2000 Type Angle Seat Valve can be combined with the Burkert 8697 Type Position Feedback Valve to form the 8801-YA Type CLASSIC On/Off Valve System. Note: • To configure other Burkert valve systems, please use the product consultation form at the end of this document. Ordering two components will get you a pre-assembled and tested Burkert valve.
Plain language sourcing guide for Burkert pneumatic valves, angle seat valve 001248 DN25
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Burkert | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
Burkert pneumatic valves, angle seat valve 001248 DN25
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
Burkert pneumatic valves, angle seat valve 001248 DN25 verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
