Burkert process valve pneumatic control unit model 8697 24883
LEHIY item code: LH-0107
Quick buying check
This page helps you check Burkert process valve pneumatic control unit model 8697 24883 before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.

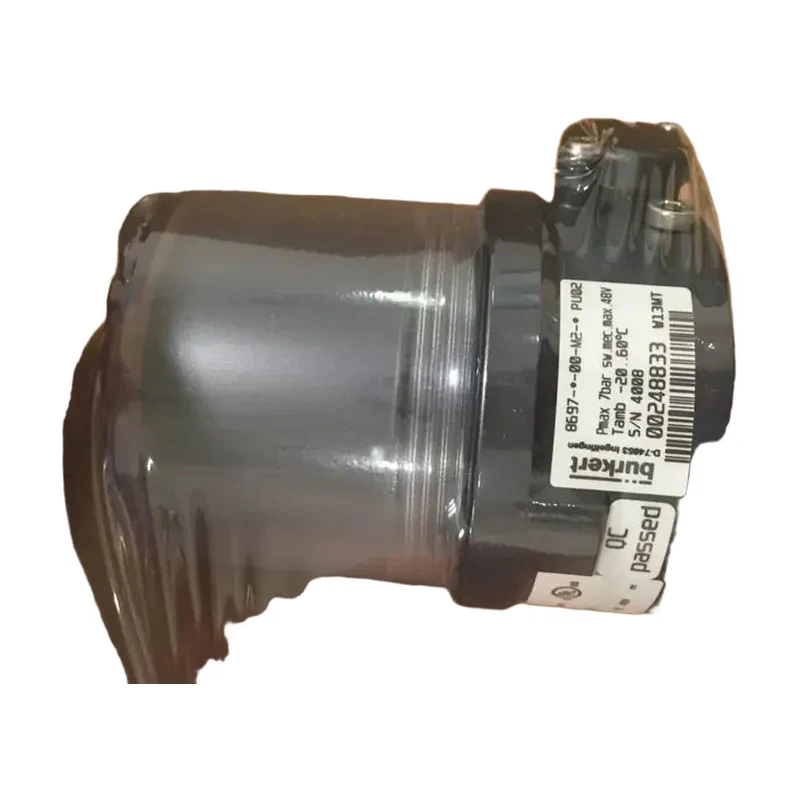

Burkert Pneumatic Control Unit 8697 248833 Type Description: The Burkert Pneumatic Control Unit 8697 is specifically designed for the ELEMENT 21xx series of separate automation Burkert process valves. Mechanical or inductive limit switches detect valve position. The integrated Burkert island valve can control single-acting or double-acting actuators.
The design of the Burkert control unit and actuator allows for internal air control without an external piping system. In addition to electronic position feedback, the device status on the pneumatic control unit is directly displayed via LEDs.
With its easy-to-clean housing, IP protection rating, and chemically resistant materials, the Burkert Pneumatic Control Unit 8697 248833 is suitable for high-hygiene applications in the food, beverage, and pharmaceutical industries.
The commonly used Burkert E-position feedback 1062 model was discontinued in the second half of 2015 and is now replaced by the Burkert Control Unit 8697 model. An additional Burkert valve connecting rod is also provided.
The Burkert Pneumatic Control Unit 8697 model is selected based on the size of the Burkert pneumatic valve actuator.
Features of the Burkert Pneumatic Control Unit 8697 model: - Compact design - Integrated pilot valve with manual operation - Automatic adjustment of the Burkert position feedback - ATEX II 3G/D and 2D/G class certification - With ATEX II 3G/D and 2D/G class certification, the Burkert.
E-position feedback unit 8697 model 0024883 can be used with Burkert pneumatic valves, Burkert 2000 type angle seat valves, Burkert 2012 type gate valves, Burkert diaphragm valves 2030.2301, and Burkert control valves.
Burkert process valve Burkert Pneumatic Control Unit 8697 model 248833 Burkert pneumatic control unit model 8697 is compatible with the following products: Type 2100 pneumatically operated 2-position 2-way angle seat valve (ELEMENT); Type 2101 pneumatically operated 2-position 2-way straight seat valve for separate automation...
Type 2103 pneumatically operated 2-position 2-way diaphragm valve (ELEMENT); Type 2106 pneumatically operated 3-way seat valve (ELEMENT series); Type 2000 pneumatically operated 2-position 2-way angle seat valve; Type 2012 pneumatically operated 2-position 2-way straight seat valve; diaphragm valve with stainless steel housing.
Ordering numbers for Burkert pneumatic control unit model 8697: Feedback Unit Ident No. 248826; Controller Ident No. 248827; Actuator Feedback Ident No. 248831; Pneumatic Control Unit Ident No. 248833; Pneumatic Control Unit Ident No. 248814.
Plain language sourcing guide for Burkert process valve pneumatic control unit model 8697 24883
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Burkert | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
Burkert process valve pneumatic control unit model 8697 24883
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
Burkert process valve pneumatic control unit model 8697 24883 verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
