Burkert vacuum solenoid valve, model 0290, 077530, 058427
LEHIY item code: LH-0103
Quick buying check
This page helps you check Burkert vacuum solenoid valve, model 0290, 077530, 058427 before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Burkert vacuum solenoid valve 0290 model (models 077530, 058427, 059910) is a German Burkert solenoid valve specifically designed for vacuum applications. It features zero-pressure start, excellent corrosion resistance, and is sourced directly from the German Burkert factory, offering competitive discounts, fast delivery, and a one-year warranty.
This Burkert vacuum solenoid valve is a servo-controlled two-position, two-way Burkert diaphragm valve suitable for both gas and liquid applications. Description: The Burkert 0290 valve is a servo-controlled Burkert diaphragm valve from the S.EV series. German Burkert valves open without differential pressure.
The fixed connection between the Burkert diaphragm and armature supports the opening process. used depending on the application. A stainless steel housing option is also available.
The solenoid coil of the Burkert 0290 vacuum solenoid valve is made of chemically resistant epoxy resin. To reduce power consumption, all DC models incorporate "kick and drop" electronics in the coil.
When used with a plug conforming to DIN EN 175301-803 Type A, Burkert valves meet an IP65 protection rating (when used with a stainless steel NEMA 4X housing).
Burkert Vacuum Solenoid Valve 0290 Features and Performance: Burkert servo-controlled diaphragm valve, nominal diameter DN 50, fixed diaphragm with no differential pressure when open, vibration-damping, modular coil system, lower power consumption for all DC models.

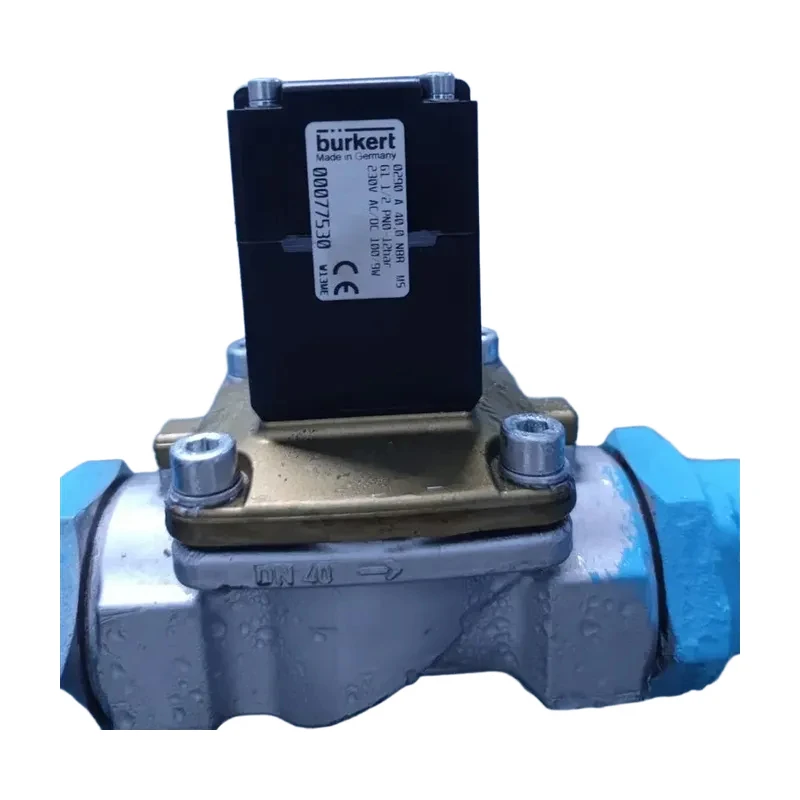

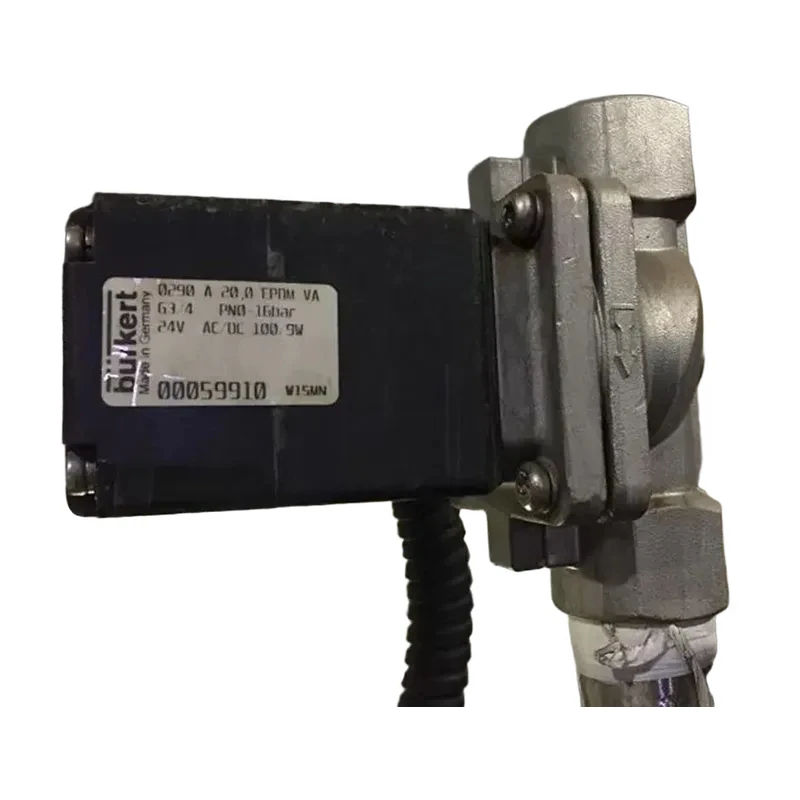

Burkert Vacuum Solenoid Valve 0290 (077530 058427 059910) Product Image: Burkert Vacuum Solenoid Valve 0290 Technical Parameters: Inner Hole: DN12-50mm; Valve Body Material: Brass, Stainless Steel 1.4581; Valve Internals: Brass, Stainless Steel 1.4105, 1.4301; Sealing Material: NBR, FPM, EPDM; Burkert 0290 Solenoid Valve Medium: NBR Seal:.
Neutral media, such as compressed air, water, hydraulic oil; FPM Seal: High-solution solutions, hot oil, oxygen; °C; Ambient temperature Max.
+55 °C; Voltage tolerance +10%; Load cycle 100% continuous operation; Electrical connection φ7mm cable socket (standard supply); Protection class IP 65 with cable socket; Burkert 0290 vacuum solenoid valve mounting method: Can be installed as needed, preferably with wires facing upwards.
For more information on the selection and application of the Burkert 0290 vacuum solenoid valve, please contact LEHIY Industrial!
Plain language sourcing guide for Burkert vacuum solenoid valve, model 0290, 077530, 058427
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Burkert | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
Burkert vacuum solenoid valve, model 0290, 077530, 058427
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
Burkert vacuum solenoid valve, model 0290, 077530, 058427 verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
