Burkert Valves distributes Burkert corrosion-resistant solenoid valves, models 0330 and 0331.
LEHIY item code: LH-0100
Quick buying check
This page helps you check Burkert Valves distributes Burkert corrosion-resistant solenoid valves, models 0330 and 0331. before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Baode Valvess Burkert corrosion-resistant solenoid valves, models 0330 and 0331. The most commonly used Burkert corrosion-resistant solenoid valves in the 0124 series have largely been upgraded to the 0330 model. All parameters and performance are identical; only the order number has been updated.
Baode corrosion-resistant solenoid valves are mainly used in micro-flow systems, such as in biopharmaceuticals, food and beverage, and beer industries. The media in these systems often contain acidic or alkaline corrosive substances, thus requiring a Burkert corrosion-resistant solenoid valve for media isolation.
Commonly used Burkert corrosion-resistant solenoid valve models include: 069006, 066032, 136350, 136348, 019078, etc. The Burkert corrosion-resistant solenoid valve 0124 is a direct-acting, two-position, two-way, or two-position, three-way, swing armature Burkert solenoid valve.
The products offered have multiple functions, including opening, closing, metering, mixing, and dispensing. The magnetic system is isolated from the media chamber by a diaphragm system. Burkert corrosion-resistant solenoid valve 0124 features: media separation for easy maintenance, manual control.

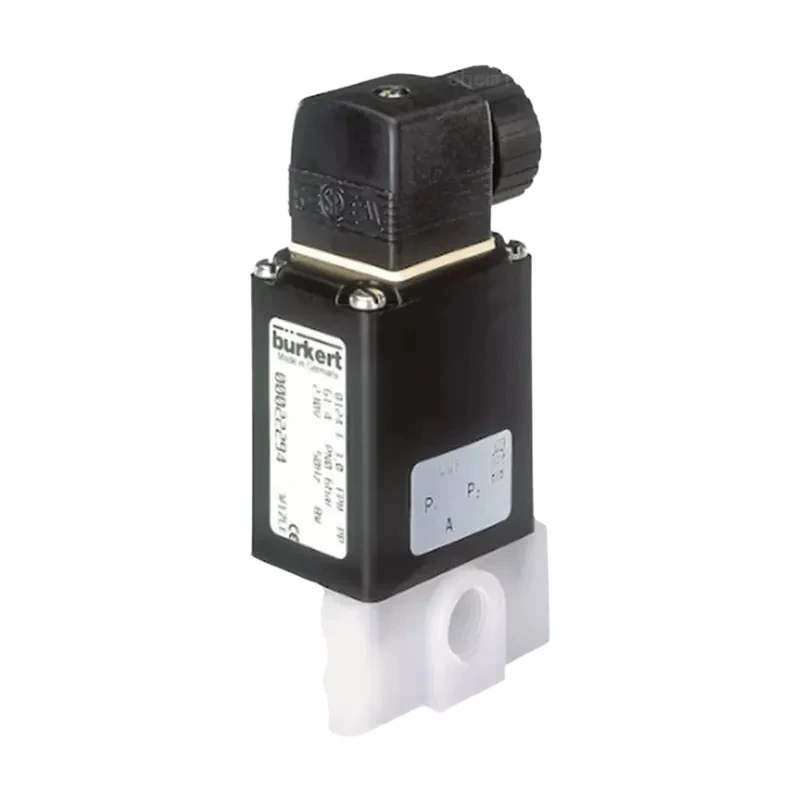

Burkert corrosion-resistant solenoid valve 0330 type description and features: Type 0330 - Direct-acting two-position two-way or two-position three-way rotary armature solenoid valve.
Burkert corrosion-resistant solenoid valve 0330 type description: The Burkert corrosion-resistant solenoid valve 0330 is a direct-acting, media-isolated Burkert rotary armature solenoid valve.
Burkert solenoid valves are two-position two-way and two-position three-way solenoid valves. The two-position three-way type can be used as a dispensing valve or mixing valve. Various diaphragm materials and operating modes are available depending on the application.
The standard brass valve body meets all European drinking water standards.
Valve body materials also include stainless steel (316L), PVDF, and polypropylene. The solenoid coil is encapsulated in chemically resistant epoxy resin. The Baode anti-corrosion solenoid valve 0330 is equipped with a manual switch for commissioning and testing.
For energy-saving requirements, all coils are available in either energy-saving or pulse-type configurations.
The switch status is via indicated position feedback in binary or NAMUR signals. Compatible with DIN EN 17301-803 Type A cable plugs, this valve has an IP65/67 safety rating and is available in stainless steel or plastic body (NEMA 4X).
Burkert Corrosion-Resistant Solenoid Valve 0330 Features: Direct-acting, media-isolated solenoid valve, maximum diameter DN 5, maintenance-free rotary armature technology, shock-resistant coil suitable for corrosive alkaline and acid solutions, manual on/off mechanism, robust construction, and easy to use.
Baode Valves distributes Burkert corrosion-resistant solenoid valves 0330 and 0331. Burkert Corrosion-Resistant Solenoid Valve 0331 Type Description and Features: Type 0331 - Direct-acting two-position two-way or two-position three-way rotary Burkert armature solenoid valve.
Description: The Baode solenoid valve 0331 is a direct-acting, media-isolated rotary Burkert armature solenoid valve. Burkert corrosion-resistant solenoid valves are available in two-position two-way and two-position three-way configurations. The two-position three-way configuration can be used as a distributor or mixer.
Various diaphragm materials and operating modes are available depending on the application. The standard brass valve body meets all European drinking water standards. Other valve body materials include stainless steel (316L), PVDF, and polypropylene. manual switch for commissioning and testing.
For energy-saving requirements, all coils are available in energy-saving or pulse-type versions. Switch status is indicated via position feedback in binary or NAMUR signals.
With a DIN EN 17301-803 Type A cable plug, the valve has an IP65/67 safety rating, and a stainless steel or plastic body (NEMA 4X).
Burkert corrosion-resistant solenoid valve 0331 features: direct-acting media-isolated solenoid valve, maximum diameter DN 4, pilot valve with Bürkert base plate interface (SFB), maintenance-free rotary armature technology suitable for corrosive alkalis and acids, robust manual switch construction, and ease of use.
Burkert corrosion-resistant solenoid valves are also typical direct-acting solenoid valves: Burkert rotary armature solenoid valves, available in two-position two-way and two-position three-way configurations.
The Burkert two-position three-way rotary armature solenoid valve (eg, model 0330, see Figure 3) has all three ports located within the valve body.
The Burkert solenoid valve uses an isolation diaphragm to prevent media from entering the armature chamber of the solenoid system. This valve comes with a manual switch (standard supply) and is also available with a position indicator or electrical position feedback.
Advantages of Burkert rotary armature solenoid valves: ■ Reliability* ■ All three ports are on the same plane ■ Media isolation ■ Long service life and high switching safety ■ Optional position indicator or electrical position feedback ■ Explosion-proof version also available ■ Suitable for corrosive and contaminated media.
Plain language sourcing guide for Burkert Valves distributes Burkert corrosion-resistant solenoid valves, models 0330 and 0331.
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Burkert | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
Burkert Valves distributes Burkert corrosion-resistant solenoid valves, models 0330 and 0331.
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
Burkert Valves distributes Burkert corrosion-resistant solenoid valves, models 0330 and 0331. verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
